Sutton T349 BSPF Spiral Point Tap - Vanadium HSS Blue1

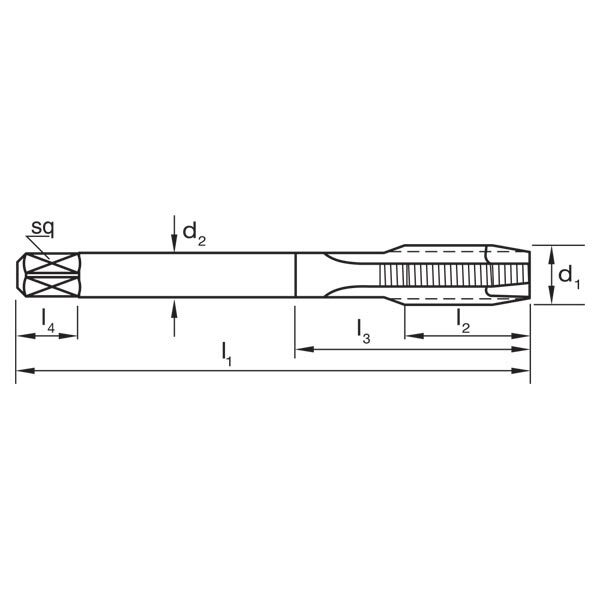

Sutton T349 BSPF Spiral Point Tap - Vanadium HSS Blue2

Sutton T3490973 BSPF G 1/8 x 28 Spiral Point Tap - HSSE V3 Blue

Sutton T3491316 BSPF G 1/4 x 19 Spiral Point Tap - HSSE V3 Blue

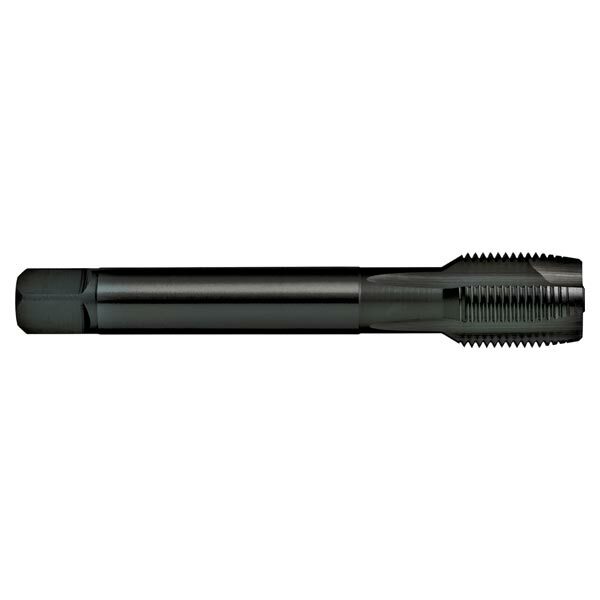

Sutton T3491666 BSPF G 3/8 x 19 Spiral Point Tap - HSSE V3 Blue

Sutton T3492096 BSPF G 1/2 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T3492291 BSPF G 5/8 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T3492644 BSPF G 3/4 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T3493020 BSPF G 7/8 x 14 Spiral Point Tap - HSSE V3 Blue

Sutton T3493325 BSPF G 1 x 11 Spiral Point Tap - HSSE V3 Blue

Specifications +

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55¬∞ (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Features & Benefits +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
PM-HSSE V3 offers higher edge hardness than standard VA series
Through holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Save 30%

Sutton T349 BSPF Spiral Point Tap - Vanadium HSS Blue

SKU: A0014584

Type: Spiral Flute Tap

$134.54

$134.54 ~~$192.20~~

Inc. GST

⚙High Speed Steel (HSS)

⚙Sutton BSPF Spiral Point

📐Multiple Sizes Available

🔩Precise Thread Cutting

🏗Metalworking & Manufacturing

☑High Speed Operation Rated

Available

Product Highlights −

Features

Use in stainless steels and high strength steels up to 1000N/mm2
PM-HSSE V3 offers higher edge hardness than standard VA series
Through holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55¬∞ (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

FREE SHIPPING OVER $299*
RETURN AND EXCHANGE POLICY

Resources

Sutton-Tools-Taps-Dies-Threading-Catalogue

Sutton-Tools-ISO-Taps-Catalogue

Specifications +

Specifications

Designation: VA (for stainless and tough steels)
Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
Finish: Steam Oxide (Blue)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Spiral Point (Gun)
Standard: DIN5156
Thread Form: ISO G Parallel Series 55¬∞ (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form B / 4.5 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Stainless Steel - Duplex

Features & Benefits +

Features

Use in stainless steels and high strength steels up to 1000N/mm2
PM-HSSE V3 offers higher edge hardness than standard VA series
Through holes
Suitable for synchronous tapping in machine operations
Depths up to approx. 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Available Options:

1-11 BSPFmm spiral flute tap
1/2-14 BSPFmm spiral flute tap
1/4-19 BSPFmm spiral flute tap
1/8-28 BSPFmm spiral flute tap
3/4-14 BSPFmm spiral flute tap
3/8-19 BSPFmm spiral flute tap
5/8-14 BSPFmm spiral flute tap
7/8-14 BSPFmm spiral flute tap
