Sutton T350 G 1/4 x 19 TPI Spiral Point Tap VA PM - PM-HSSE V3 - TiCN - DIN 5156
Available

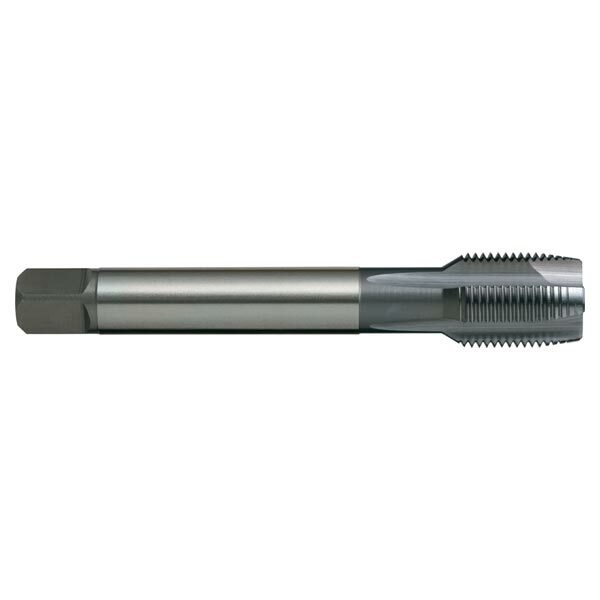

The Sutton T350 is a spiral point (gun) tap (VA PM designation) for BSPF (G) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a TiCN coating. This listing covers 4 sizes from G 1/4 x 19 TPI to G 7/8 x 14 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread standard is ISO 228. The tap is built to DIN 5156: reduced shank with square drive.
Where this product is used
- Use in stainless steels and high strength steels up to 1000 N/mm2.
- Through holes.
- Suitable for synchronous tapping in machine operations.
- Depths up to approx. 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 to 5 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread standard ISO 228.
- The VA PM designation is for stainless and tough steels, with the VA geometry in powder metal high speed steel.
- PM-HSSE V3 offers higher edge hardness than standard VA series.
- DIN 5156 construction, reduced shank with square drive.
Sizes

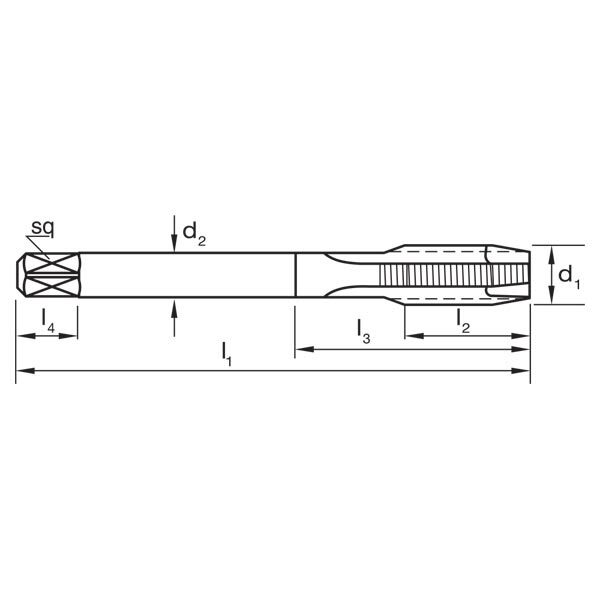

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T350 1316 | G 1/4 x 19 TPI | 19 | 11.8 | 100 | 22 | 11 | 9 | 12 | 3 |
| T350 1666 | G 3/8 x 19 TPI | 19 | 15.3 | 100 | 22 | 12 | 9 | 12 | 3 |
| T350 2291 | G 5/8 x 14 TPI | 14 | 21 | 125 | 25 | 18 | 14.5 | 17 | 4 |
| T350 3020 | G 7/8 x 14 TPI | 14 | 28.5 | 150 | 28 | 22 | 18 | 21 | 5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T350 |
| Type | Spiral point (gun) tap |
| Thread series | BSPF (G) |
| Material | PM-HSSE V3 |
| Finish | TiCN |
| Designation | VA PM |
| Chamfer | Form B / 4.5 x P |
| Thread standard | ISO 228 |
| Standard | DIN 5156 |
| Flutes | 3 to 5 |
| Sizes in this listing | 4 sizes, G 1/4 x 19 TPI to G 7/8 x 14 TPI |
Related products
Related Sutton taps: T349 BSPF (G) Spiral Point Tap VA PM - PM-HSSE V3 - Steam Oxide - DIN 5156, T484 BSPF (G) Spiral Point Tap Pipe Intermediate - HSS - Bright - ISO 529, T181 BSPF (G) Spiral Point Tap VA - HSSE - Steam Oxide - DIN 5156, T180 BSPF (G) Spiral Point Tap - HSSE - TiN - DIN 5156, T179 BSPF (G) Spiral Point Tap - HSSE - Steam Oxide - DIN 5156.
