Description
Description

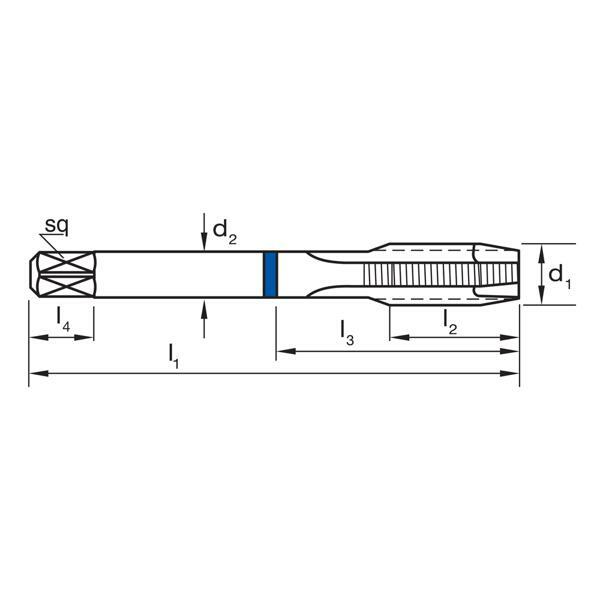

Dimensions
- d1: G 1/8
- d2 (mm): 10
- l1 (mm): 80
- l2 (mm): 24
- l3 (mm): 33
- l4 (mm): 11
- Square Size (mm): 8
- z: 3
- Drill Size (mm): 8.8 (drill)
- TPI: 28 (TPI)
Features
- Suitable for materials up to 1000N/mm2
- Through & blind holes
- Depths up to approx. 1 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: High Speed Steel (HSS)
- Finish: Bright
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: Z3
- Lead: Form B / 4.5 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Specifications
Specifications
Dimensions
- d1: G 1/8
- d2 (mm): 10
- l1 (mm): 80
- l2 (mm): 24
- l3 (mm): 33
- l4 (mm): 11
- Square Size (mm): 8
- z: 3
- Drill Size (mm): 8.8 (drill)
- TPI: 28 (TPI)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: High Speed Steel (HSS)
- Finish: Bright
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: Z3
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Features & Benefits
Features & Benefits
Features
- Suitable for materials up to 1000N/mm2
- Through & blind holes
- Depths up to approx. 1 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

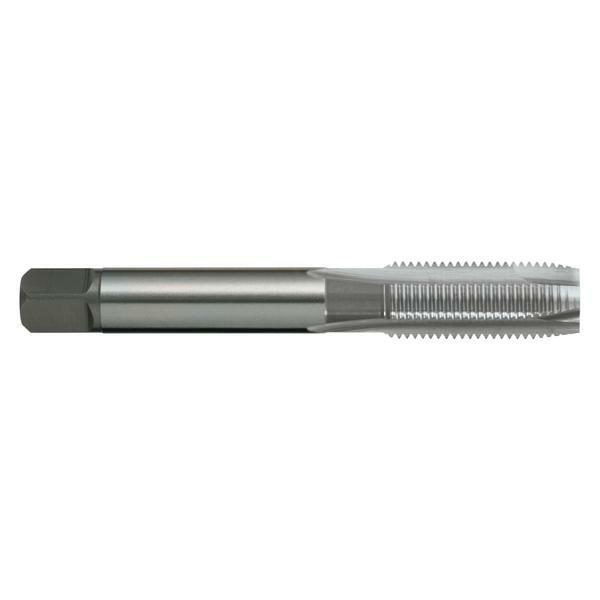

Sutton T484 G-BSPF Spiral Point Tap - HSS
Sutton T484 G-BSPF Spiral Point Tap - HSS
SKU: A0015806
Type: Sprial Point Tap
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T484 G-BSPF Spiral Point Tap by Sutton Tools is a Sprial Point Tap made of High Speed Steel. It provides a length l1 (mm) of 118 mm and is suitable for through & blind holes in steel non-alloy annealed components.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: G 1/8
- d2 (mm): 10
- l1 (mm): 80
- l2 (mm): 24
- l3 (mm): 33
- l4 (mm): 11
- Square Size (mm): 8
- z: 3
- Drill Size (mm): 8.8 (drill)
- TPI: 28 (TPI)
Features
- Suitable for materials up to 1000N/mm2
- Through & blind holes
- Depths up to approx. 1 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: High Speed Steel (HSS)
- Finish: Bright
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: Z3
- Lead: Form B / 4.5 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Specifications
Specifications
Dimensions
- d1: G 1/8
- d2 (mm): 10
- l1 (mm): 80
- l2 (mm): 24
- l3 (mm): 33
- l4 (mm): 11
- Square Size (mm): 8
- z: 3
- Drill Size (mm): 8.8 (drill)
- TPI: 28 (TPI)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: High Speed Steel (HSS)
- Finish: Bright
- Max Cut Depth: 3xD
- Shank Form: Reduced Shank (with square drive)
- X: als
- Type: Spiral Point (Gun)
- Standard: ISO529
- Thread Form: ISO G Parallel Series 55° (G-BSPF)
- Nut Tolerance: Z3
- Lead: Form B / 4.5 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Features & Benefits
Features & Benefits
Features
- Suitable for materials up to 1000N/mm2
- Through & blind holes
- Depths up to approx. 1 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T484 G-BSPF Spiral Point Tap - HSS
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T484 G-BSPF Spiral Point Tap by Sutton Tools is a Sprial Point Tap made of High Speed Steel. It provides a length l1 (mm) of 118 mm and is suitable for through & blind holes in steel non-alloy annealed components. |
Regular price
From $48.05
Sale price
From $48.05
Regular price
Unit price
/per
| Sutton Tools | Sprial Point Tap |
Diameter
G1/2,G1/4,G1/8,G3/4,G3/8
TPI
14,19,28
|
Choose your option
Sutton T484 G-BSPF Spiral Point Tap - HSS
Sutton T484 G-BSPF Spiral Point Tap - HSS
SKU: A0015806
Type: Sprial Point Tap
Hurry up, only 2 items left in stock.
The Sutton T484 G-BSPF Spiral Point Tap by Sutton Tools is a Sprial Point Tap made of High Speed Steel. It provides a length l1 (mm) of 118 mm and is suitable for through & blind holes in steel non-alloy annealed components.
