Sutton T700 G 1 x 11 TPI Spiral Point Tap Black Magic - PM-HSSE V3 - Hardlube - DIN 5156
Available

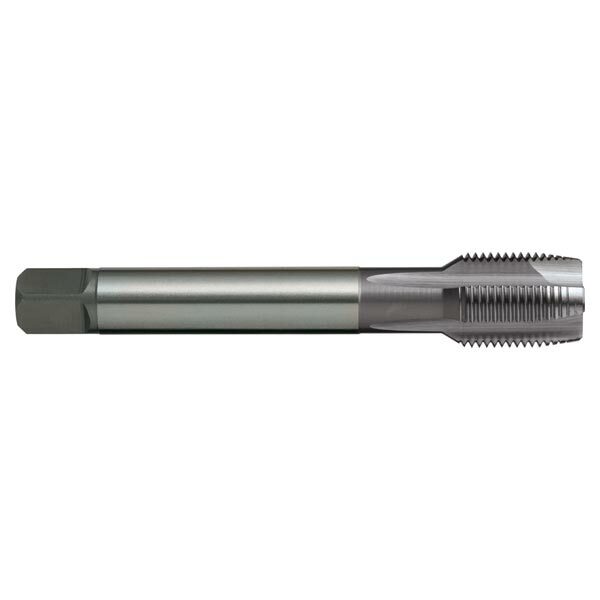

The Sutton T700 is a spiral point (gun) tap (UNI designation, Black Magic range) for BSPF (G) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a Hardlube (TiAlN + WC/C) coating. This listing covers 8 sizes from G 1/8 x 28 TPI to G 1 x 11 TPI.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The UNI designation is for normal, general purpose materials, with a normal rake angle and high thread relief, in powder metal high speed steel. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread standard is ISO 228. The tap is built to DIN 5156: reduced shank with square drive.
Where this product is used
- Universal high performance tapping.
- Use in stainless steels and high strength steels up to 850 N/mm2.
- Suitable for synchronous tapping in machine operations.
- Through holes up to 3 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- Hardlube (TiAlN + WC/C) coating for tapping hard-to-machine materials, with minimum quantity lubrication (MQL) or dry machining, longer tool life and higher cutting speeds.
- 3 to 5 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread standard ISO 228.
- The UNI designation is for normal, general purpose materials, with a normal rake angle and high thread relief, in powder metal high speed steel.
- PM-HSSE V3 offers superior tool life.
- DIN 5156 construction, reduced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

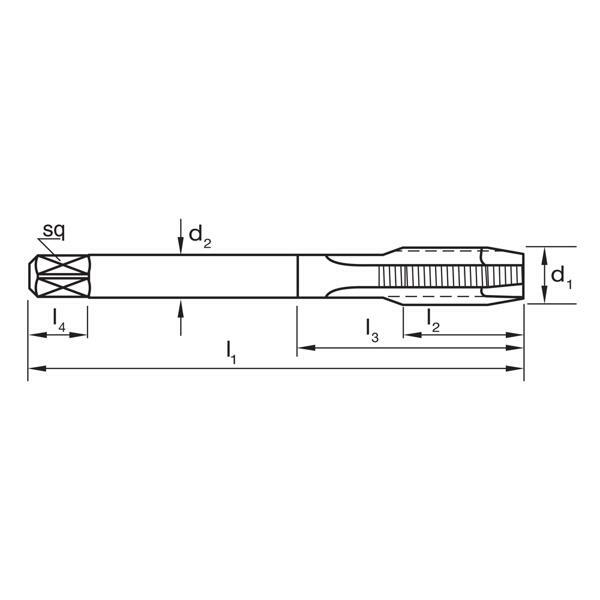

| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T700 0973 | G 1/8 x 28 TPI | 28 | 8.8 | 90 | 20 | 7 | 5.5 | 8 | 3 |
| T700 1316 | G 1/4 x 19 TPI | 19 | 11.8 | 100 | 22 | 11 | 9 | 12 | 3 |
| T700 1666 | G 3/8 x 19 TPI | 19 | 15.3 | 100 | 22 | 12 | 9 | 12 | 3 |
| T700 2096 | G 1/2 x 14 TPI | 14 | 19 | 125 | 25 | 16 | 12 | 15 | 3 |
| T700 2291 | G 5/8 x 14 TPI | 14 | 21 | 125 | 25 | 18 | 14.5 | 17 | 4 |
| T700 2644 | G 3/4 x 14 TPI | 14 | 24.5 | 140 | 28 | 20 | 16 | 19 | 5 |
| T700 3020 | G 7/8 x 14 TPI | 14 | 28.5 | 150 | 28 | 22 | 18 | 21 | 5 |
| T700 3325 | G 1 x 11 TPI | 11 | 31 | 160 | 30 | 25 | 20 | 23 | 5 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T700 |
| Type | Spiral point (gun) tap |
| Thread series | BSPF (G) |
| Material | PM-HSSE V3 |
| Finish | Hardlube |
| Designation | UNI |
| Chamfer | Form B / 4.5 x P |
| Thread standard | ISO 228 |
| Standard | DIN 5156 |
| Flutes | 3 to 5 |
| Sizes in this listing | 8 sizes, G 1/8 x 28 TPI to G 1 x 11 TPI |
