Sutton T197 M3 x 0.5 Spiral Flute Tap R45 VA DH - HSSE - Steam Oxide - DIN 371
Available
The Sutton T197 is a spiral flute tap (R45 spiral, VA DH designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 6 sizes from M3 x 0.5 to M10 x 1.5.
The 45° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- Suitable for controlled tapping in deep holes.
- Use in stainless steels and high strength steels up to 850 N/mm2.
- Blind holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 flutes.
- 45° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance ISO 2 / 6H.
- DIN 371 construction, reinforced shank with square drive.
Sizes

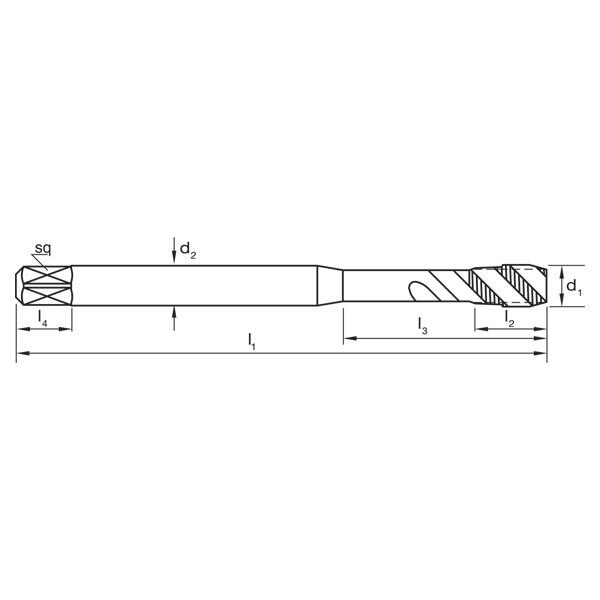

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T197 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 5 | 18 | 3.5 | 2.7 | 6 | 3 |
| T197 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 7 | 21 | 4.5 | 3.4 | 6 | 3 |
| T197 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 8 | 25 | 6 | 4.9 | 8 | 3 |
| T197 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 30 | 6 | 4.9 | 8 | 3 |
| T197 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 12.5 | 35 | 8 | 6.2 | 9 | 3 |
| T197 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 15 | 39 | 10 | 8 | 11 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T197 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Steam Oxide |
| Designation | VA DH |
| Spiral | R45 (45° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | 6 sizes, M3 x 0.5 to M10 x 1.5 |
Related products
Related Sutton taps: T199 Metric Coarse Spiral Flute Tap R45 VA DH - HSSE - Steam Oxide - DIN 376, T196 Metric Coarse Spiral Flute Tap L40 N - HSSE - Bright - DIN 376, T195 Metric Coarse Spiral Flute Tap L40 N - HSSE - Bright - DIN 371, T193 Metric Coarse Spiral Flute Tap R40 - HSSE - Bright - DIN 371, T201 Metric Coarse Spiral Flute Tap R45 VA DH - HSSE - TiCN - DIN 371.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

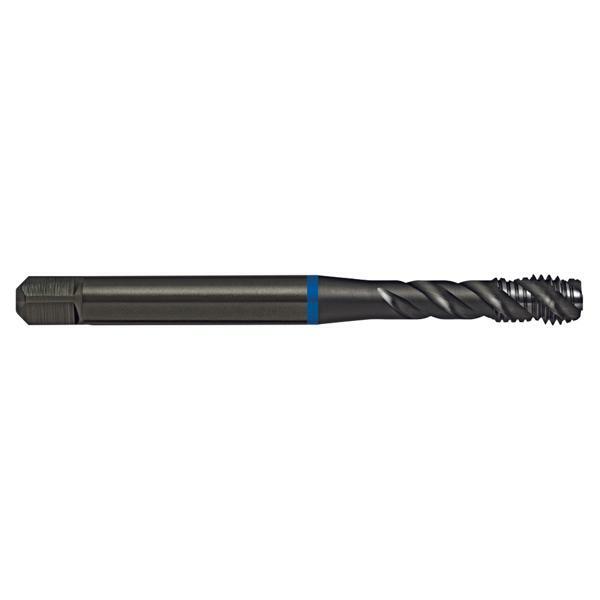

Sutton T197 Metric Coarse Spiral Flute Tap R45 VA DH - HSSE - Steam Oxide - DIN 371: M3
