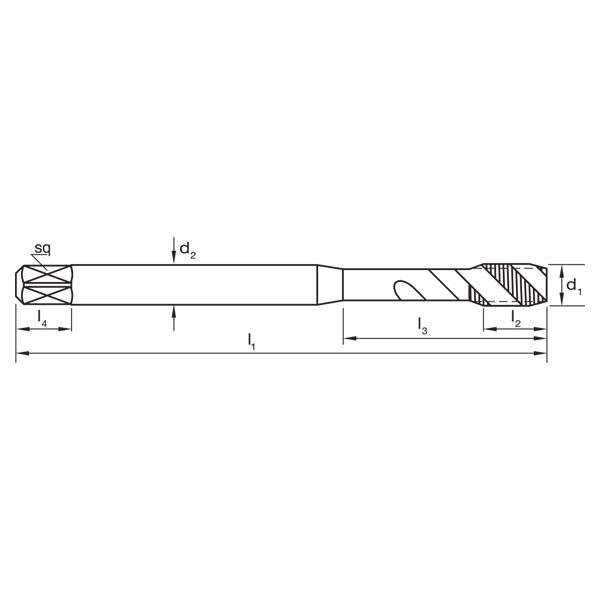

Sutton T193 Metric Spiral Flute Tap - R40 N - Premium HSS 2
Sutton T1930200 Metric M2 x 0.4 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1930250 Metric M2.5 x 0.45 Spiral Flute Tap - R40 N - HSSE V3

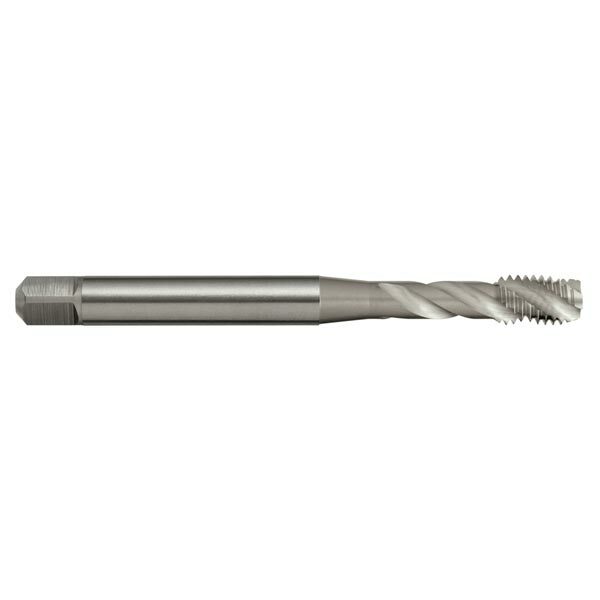

Sutton T1930300 Metric M3 x 0.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1930400 Metric M4 x 0.7 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1930500 Metric M5 x 0.8 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1930600 Metric M6 x 1 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1930800 Metric M8 x 1.25 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1931000 Metric M10 x 1.5 Spiral Flute Tap - R40 N - HSSE V3

Sutton T193 Metric Spiral Flute Tap - R40 N - Premium HSS

Sutton T193 Metric Spiral Flute Tap - R40 N - Premium HSS

SKU: A0013547

$63.50
$63.50
Inc. GST
Buy It Now

Available

The Sutton T193 Metric Spiral Flute Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It offers a Drill Size of 8.5 (drill) and is suitable for aluminum and magnesium wrought alloy age hardened.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 1 / 4H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 1 / 4H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1
