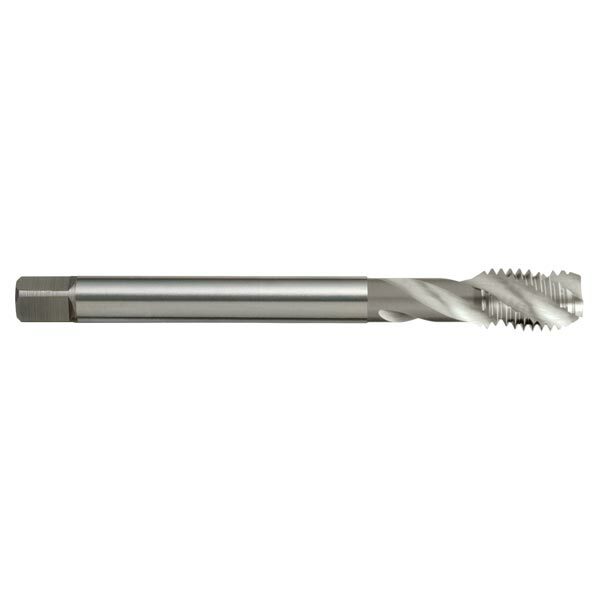

Sutton T192 M12 x 1.75 Spiral Flute Tap R40 - HSSE - Bright - DIN 376

The Sutton T192 is a spiral flute tap (R40 spiral, N designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 5 sizes from M12 x 1.75 to M20 x 2.5.

The 40° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form C (2.5 x P), generally for blind holes.

The thread tolerance is ISO 2 / 6H. The tap is built to DIN 376: reduced shank with square drive.

Where this product is used

• General purpose use.
• Suitable for materials up to 1000 N/mm2.
• Blind holes.
• Depths up to 2.5 x d1.

Design features

• Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
• Bright finish for general purpose applications.
• 3 to 4 flutes, depending on size.
• 40° right-hand spiral flute.
• Form C chamfer, 2.5 x P.
• Thread tolerance ISO 2 / 6H.
• The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
• DIN 376 construction, reduced shank with square drive.

Sizes

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

Key specifications
