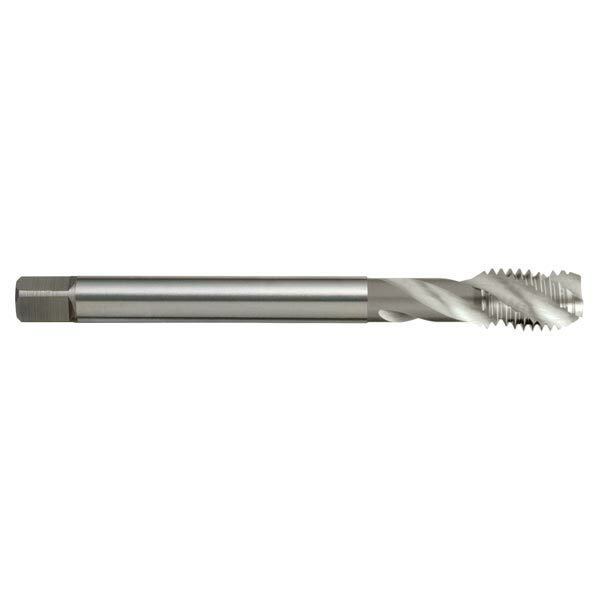

Sutton T1881200 Metric M12 x 1.75 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881400 Metric M14 x 2 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881600 Metric M16 x 2 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881800 Metric M18 x 2.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882000 Metric M20 x 2.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882200 Metric M22 x 2.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882400 Metric M24 x 3 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882700 Metric M27 x 3 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883000 Metric M30 x 3.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883300 Metric M33 x 3.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883600 Metric M36 x 4 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883900 Metric M39 x 4 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1884200 Metric M42 x 4.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1884500 Metric M45 x 4.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1884800 Metric M48 x 5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1885200 Metric M52 x 5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T188 Metric Spiral Flute Tap - R40 N - Premium HSS 1
Sutton T188 Metric Spiral Flute Tap - R40 N - Premium HSS 2
Sutton T1880350 Metric M3.5 x 0.6 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1880400 Metric M4 x 0.7 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1880500 Metric M5 x 0.8 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1880600 Metric M6 x 1 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1880800 Metric M8 x 1.25 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881000 Metric M10 x 1.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881200 Metric M12 x 1.75 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881400 Metric M14 x 2 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881600 Metric M16 x 2 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1881800 Metric M18 x 2.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882000 Metric M20 x 2.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882200 Metric M22 x 2.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882400 Metric M24 x 3 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1882700 Metric M27 x 3 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883000 Metric M30 x 3.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883300 Metric M33 x 3.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883600 Metric M36 x 4 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1883900 Metric M39 x 4 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1884200 Metric M42 x 4.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1884500 Metric M45 x 4.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1884800 Metric M48 x 5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1885200 Metric M52 x 5 Spiral Flute Tap - R40 N - HSSE V3

Sutton T188 Metric Spiral Flute Tap - R40 N - Premium HSS

Sutton T188 Metric Spiral Flute Tap - R40 N - Premium HSS

SKU: A0013484

$43.64
$43.64
Inc. GST
Buy It Now

Available

The Sutton T188 Metric Spiral Flute Tap by Sutton Tools is a 0 made of Premium Grade High Speed Steel (HSSE-V3). It offers M10 thread and is suitable for blind holes.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M3.5
  • d2 (mm): 2.5
  • l1 (mm): 56
  • l2 (mm): 6
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • z: 3
  • Drill Size (mm): 2.9 (drill)
  • Pitch (mm): 0.6 (pitch)

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat TreatableAluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Dimensions

  • d1: M3.5
  • d2 (mm): 2.5
  • l1 (mm): 56
  • l2 (mm): 6
  • l4 (mm): 5
  • Square Size (mm): 2.1
  • z: 3
  • Drill Size (mm): 2.9 (drill)
  • Pitch (mm): 0.6 (pitch)

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reduced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN376
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Aluminum & Magnesium, wrought alloy - Non Heat TreatableAluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1
