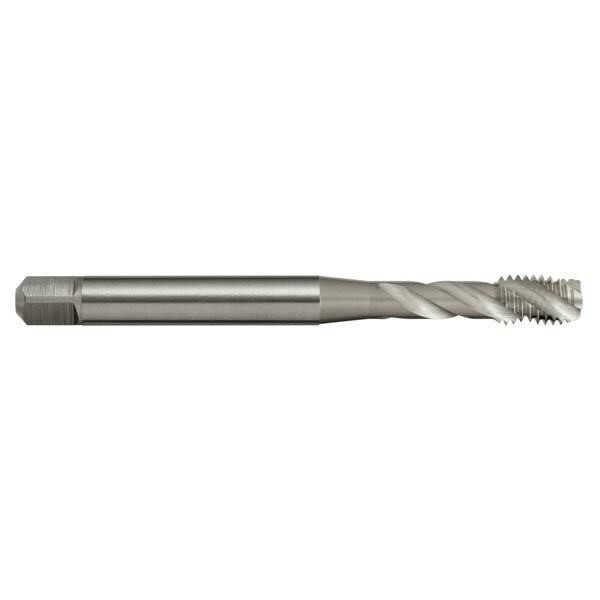

Sutton T1870600 Metric M6 x 1 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870800 Metric M8 x 1.25 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1871000 Metric M10 x 1.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T187 Metric Spiral Flute Tap - R40 N - Premium HSS 1
Sutton T187 Metric Spiral Flute Tap - R40 N - Premium HSS 2
Sutton T1870100 Metric M1 x 0.25 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870120 Metric M1.2 x 0.25 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870140 Metric M1.4 x 0.3 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870160 Metric M1.6 x 0.35 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870180 Metric M1.8 x 0.35 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870200 Metric M2 x 0.4 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870250 Metric M2.5 x 0.45 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870300 Metric M3 x 0.5 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870350 Metric M3.5 x 0.6 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870400 Metric M4 x 0.7 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870500 Metric M5 x 0.8 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870600 Metric M6 x 1 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1870800 Metric M8 x 1.25 Spiral Flute Tap - R40 N - HSSE V3
Sutton T1871000 Metric M10 x 1.5 Spiral Flute Tap - R40 N - HSSE V3

Sutton T187 Metric Spiral Flute Tap - R40 N - Premium HSS

Sutton T187 Metric Spiral Flute Tap - R40 N - Premium HSS

SKU: A0013470

$77.36
$77.36
Inc. GST
Buy It Now

Available

The Sutton T187 Metric Spiral Flute Tap by Sutton Tools is a Spiral Flute in Premium Grade High Speed Steel (HSSE-V3) Bright finish. It provides rated capability for materials up to 1000N/mm2 and is suitable for Blind holes.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Bright
  • Max Cut Depth: 2.5xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R40
  • X: als
  • Type: Spiral Flute
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form C / 3 x P

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Blind holes
  • Depths up to 2.5 x d1
