Sutton T191 Metric Spiral Flute Tap - R40 N - Premium HSS 1

Sutton T191 Metric Spiral Flute Tap - R40 N - Premium HSS 2

Sutton T1910200 Metric M2 x 0.4 Spiral Flute Tap - R40 N - HSSE V3

Sutton T1910250 Metric M2.5 x 0.45 Spiral Flute Tap - R40 N - HSSE V3

Sutton T1910300 Metric M3 x 0.5 Spiral Flute Tap - R40 N - HSSE V3

Sutton T1910400 Metric M4 x 0.7 Spiral Flute Tap - R40 N - HSSE V3

Sutton T1910500 Metric M5 x 0.8 Spiral Flute Tap - R40 N - HSSE V3

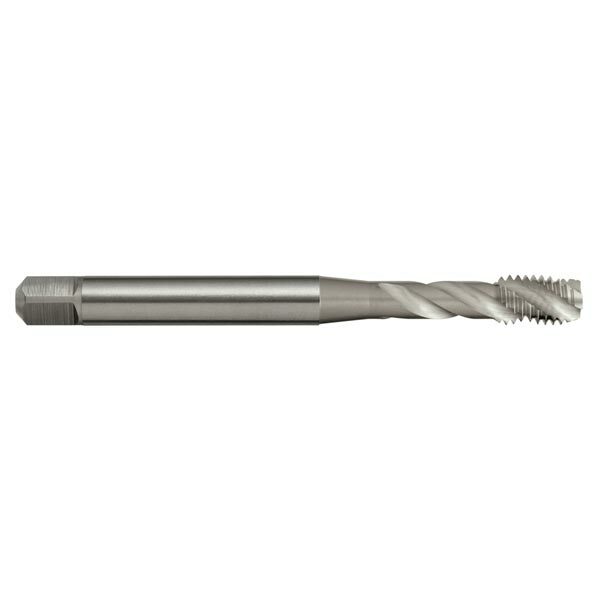

Sutton T1910600 Metric M6 x 1 Spiral Flute Tap - R40 N - HSSE V3

Sutton T1910800 Metric M8 x 1.25 Spiral Flute Tap - R40 N - HSSE V3

Sutton T1911000 Metric M10 x 1.5 Spiral Flute Tap - R40 N - HSSE V3

Description +

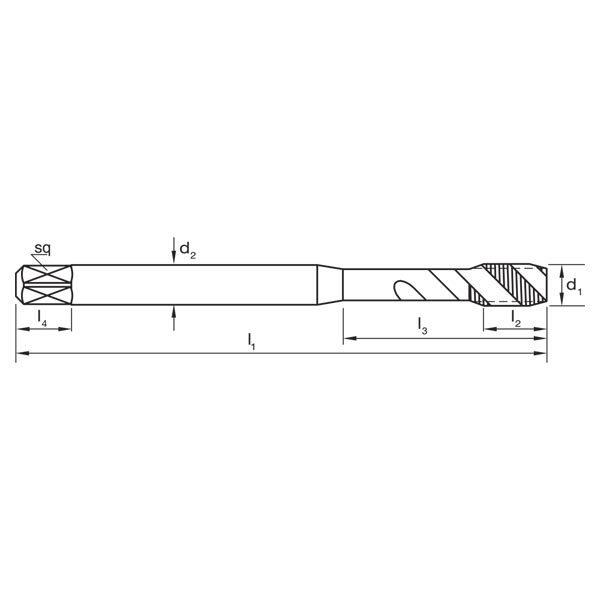

Dimensions

d1: M2
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 8
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.6 (drill)
Pitch (mm): 0.4 (pitch)

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 3 / 6G
Lead: Form C / 3 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Specifications +

Dimensions

d1: M2
d2 (mm): 2.8
l1 (mm): 45
l2 (mm): 8
l4 (mm): 5
Square Size (mm): 2.1
z: 2
Drill Size (mm): 1.6 (drill)
Pitch (mm): 0.4 (pitch)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Bright
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: DIN371
Thread Form: ISO Metric Coarse (M)
Nut Tolerance: ISO 3 / 6G
Lead: Form C / 3 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened

Features & Benefits +

Features

General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T191 Metric Spiral Flute Tap - R40 N - Premium HSS

SKU: A0013534

$63.50

Inc. GST

Available

The Sutton T191 Metric Spiral Flute Tap by Sutton Tools is a 0 with Premium HSS. It offers depths up to 2.5 x d1 and is suitable for Steel - Low alloy & cast < 5% of alloying elements: Annealed.

Buy Now

FREE SHIPPING OVER $299*
