Sutton T217 M3 x 0.5 Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 371
Available

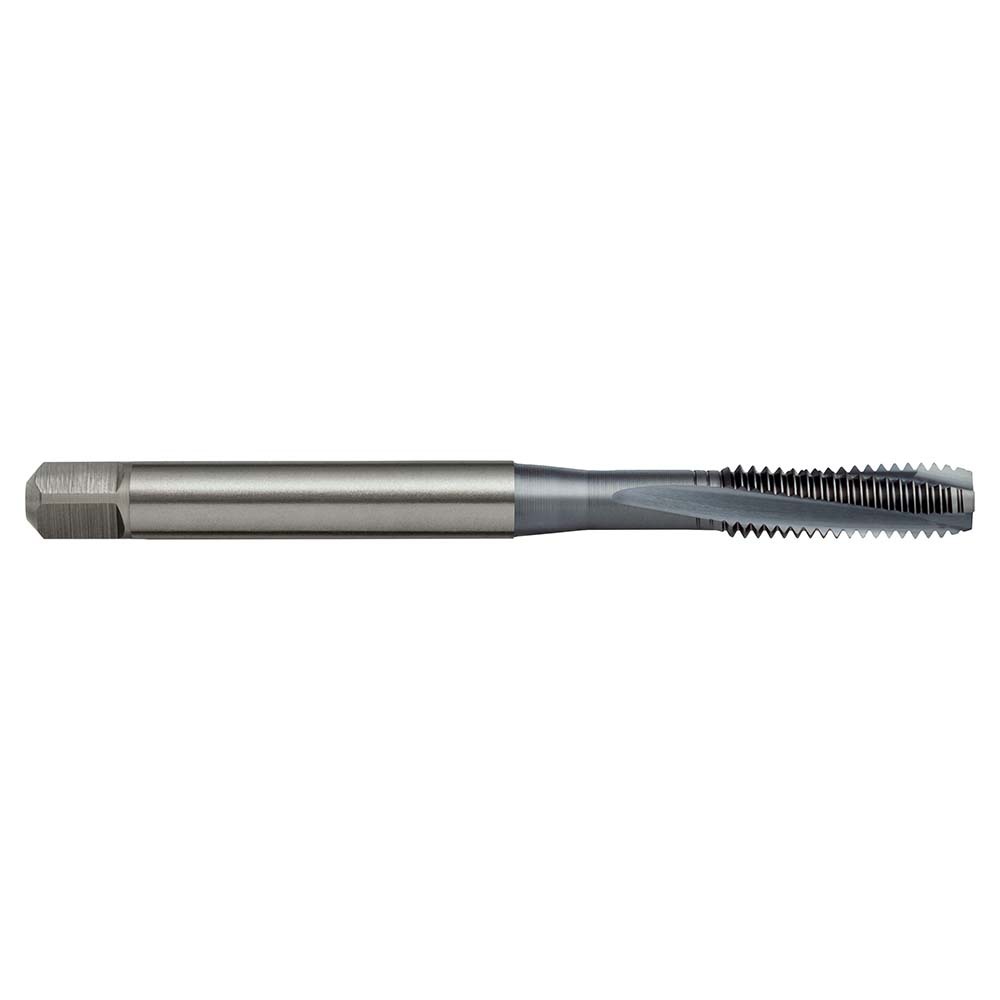

The Sutton T217 is a spiral flute tap (R10 spiral, Ni designation) for metric coarse (M) threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 6 sizes from M3 x 0.5 to M10 x 1.5.
The 10° right-hand spiral flute suits blind holes in tough, short chipping materials, up to 1.5 x D in depth. The slow helix does not transport chips well, so it has no advantage in soft or long chipping materials, especially deeper than 1.5 x d1. The chamfer is Form C (3 x P), generally for blind holes.
The thread tolerance is 6HX. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- For Nickel alloys / age-hardened super alloys >1150 N/mm2.
- Blind or through holes.
- Depths up to approx. 1.5 x d1.
Design features
- Powder metallurgy, 8% cobalt high speed steel (PM-HSS Co). The cobalt keeps strength and hardness at very high cutting temperatures, which suits heavy duty tapping of materials up to 45 HRC.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 flutes.
- 10° right-hand spiral flute.
- Form C chamfer, 3 x P.
- Thread tolerance 6HX.
- Reinforced cutting geometry.
- DIN 371 construction, reinforced shank with square drive.
Sizes

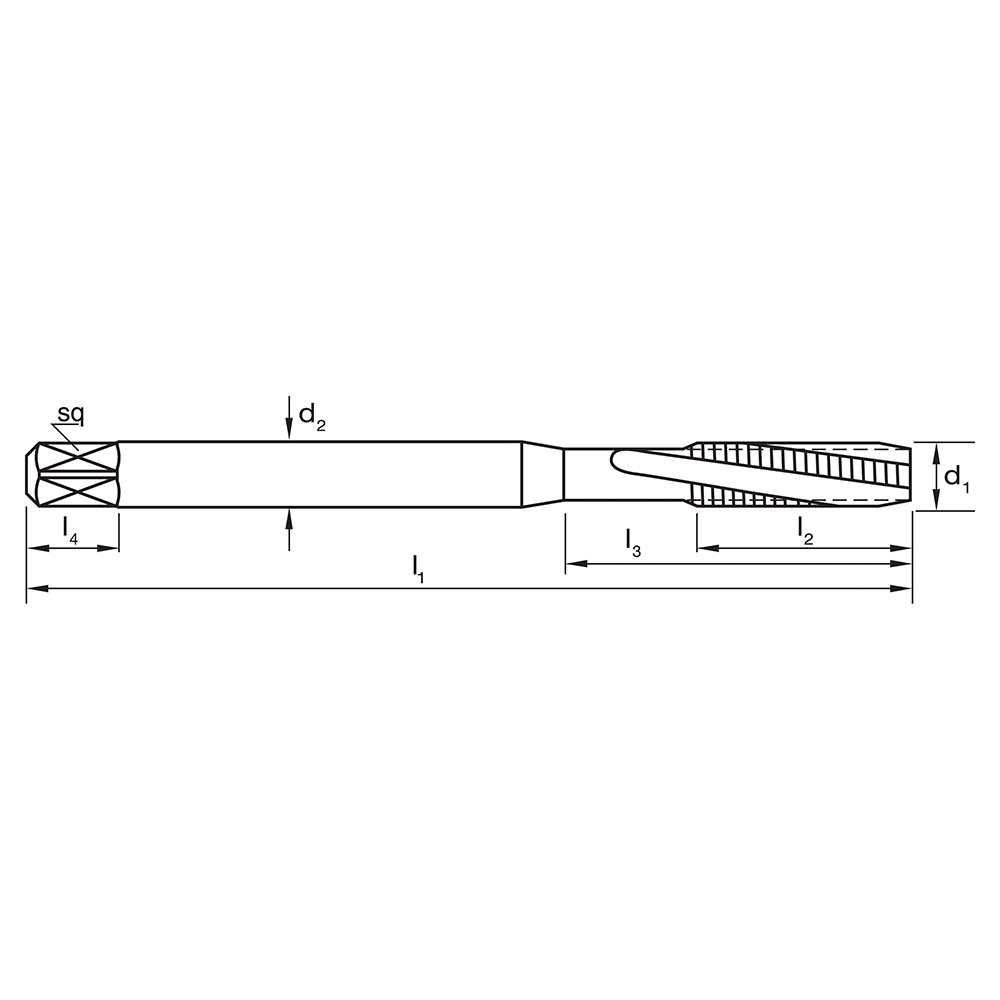

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T217 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 11 | 18 | 3.5 | 2.7 | 6 | 3 |
| T217 0400 | M4 x 0.7 | 0.7 | 3.3 | 63 | 13 | 21 | 4.5 | 3.4 | 6 | 3 |
| T217 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 16 | 25 | 6 | 4.9 | 8 | 3 |
| T217 0600 | M6 x 1 | 1 | 5 | 80 | 19 | 30 | 6 | 4.9 | 8 | 3 |
| T217 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 22 | 35 | 8 | 6.2 | 9 | 3 |
| T217 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 24 | 39 | 10 | 8 | 11 | 3 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T217 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSS Co |
| Finish | TiCN |
| Designation | Ni |
| Spiral | R10 (10° right-hand) |
| Chamfer | Form C / 3 x P |
| Thread tolerance | 6HX |
| Standard | DIN 371 |
| Flutes | 3 |
| Sizes in this listing | 6 sizes, M3 x 0.5 to M10 x 1.5 |
Related products
Related Sutton taps: T218 Metric Coarse Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 376, T216 Metric Coarse Spiral Flute Tap R15 Ti - PM-HSS Co - TiCN - DIN 376, T215 Metric Coarse Spiral Flute Tap R15 Ti - PM-HSS Co - TiCN - DIN 371, T214 Metric Coarse Spiral Flute Tap R15 H IK - PM-HSS Co - TiCN - DIN 376, T213 Metric Coarse Spiral Flute Tap R15 H IK - PM-HSS Co - TiCN - DIN 371.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T217 Metric Coarse Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 371: M3
SKU: A0131310 | Model: T2170300

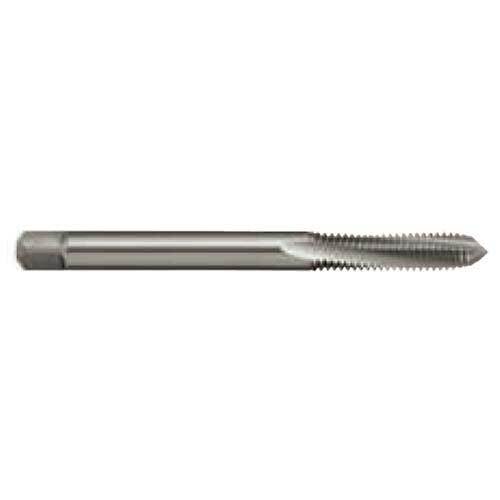

This is the diameter size d1 M3 option of the Sutton T217 Metric Coarse Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 371. Key details for this option: thread size M3 x 0.5, thread length 11mm, tapping drill size 2.5mm, square size 2.7mm, shank diameter 3.5mm.
