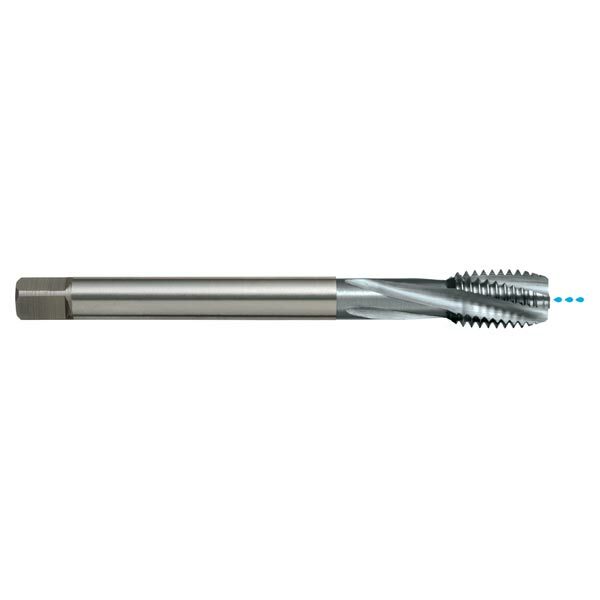

Sutton T214 Metric Spiral Flute Tap - R15 H IK - Cobalt Steel TiCN
Sutton T214 Metric Spiral Flute Tap - R15 H IK - Cobalt Steel TiCN
SKU: A0013674
Regular price
$351.49
Sale price
$351.49
Regular price
Unit price
/per
Tax included.
Shipping calculated at checkout.
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T214 Metric Spiral Flute Tap by Sutton Tools is a 0 with TiCN finish. It provides Drill Size 10.2 (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description

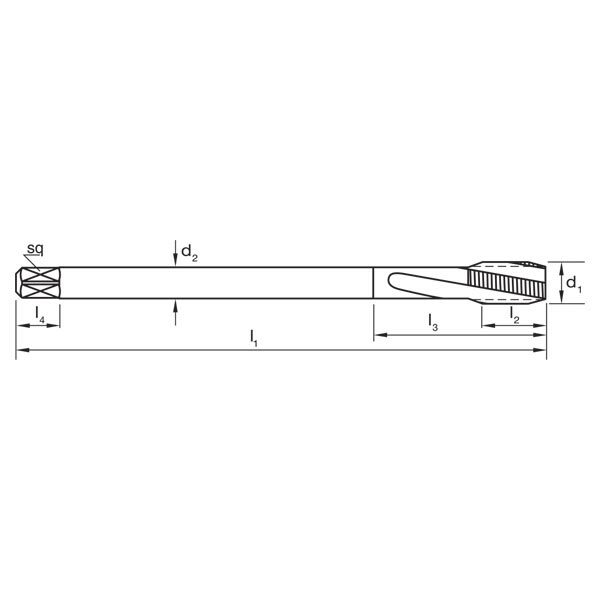

Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 4
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
Specifications
- Designation: H (for hard materials)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R15
- X: ru
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
- Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Grey (GG) – Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
- Cast Iron, Malleable – Ferritic/Pearlitic
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
- Titanium & Titanium alloys - Beta alloys: Age Hardened
- Cast Iron - Chilled: Cast
Specifications
Specifications
Dimensions
- d1: M12
- d2 (mm): 9
- l1 (mm): 110
- l2 (mm): 17.5
- l4 (mm): 10
- Square Size (mm): 7
- z: 4
- Drill Size (mm): 10.2 (drill)
- Pitch (mm): 1.75 (pitch)
Specifications
- Designation: H (for hard materials)
- Material: Powdered Metallurgy- High Speed Steel Cobalt (PM-HSS Co8%)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 1.5xD
- Shank Form: Reduced Shank (with square drive)
- Helix Angle: R15
- X: ru
- Type: Spiral Flute
- Standard: DIN376
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Hardened & Tempered
- Steel - Corrosion resistant & cast - Martensitic: Quenched & Tempered
- Cast Iron, Grey (GG) - Ferritic / Pearlitic
- Cast Iron, Grey (GG) – Pearlitic
- Cast Iron, Nodular (GGG) – Ferritic/Pearlitic
- Cast Iron, Malleable – Ferritic/Pearlitic
- Copper & Copper alloys (Brass/Bronze) - Brass (CuZn, CuSnZn)
- Titanium & Titanium alloys - Alpha / Beta alloys: Annealed
- Titanium & Titanium alloys - Alpha / Beta alloys: Age Hardened
- Titanium & Titanium alloys - Beta alloys: Age Hardened
- Cast Iron - Chilled: Cast
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 45 HRc
- Blind holes
- Depths up to 1.5 x d1
