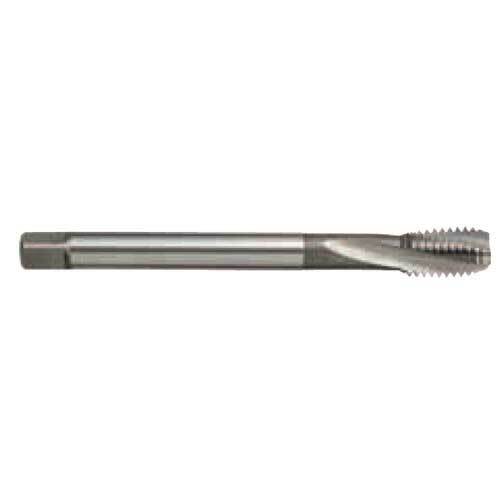

Sutton T218 M12 x 1.75 Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 376
Available
The Sutton T218 is a spiral flute tap (R10 spiral, Ni designation) for metric coarse (M) threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 4 sizes from M12 x 1.75 to M20 x 2.5.
The 10° right-hand spiral flute suits blind holes in tough, short chipping materials, up to 1.5 x D in depth. The slow helix does not transport chips well, so it has no advantage in soft or long chipping materials, especially deeper than 1.5 x d1. The chamfer is Form C (3 x P), generally for blind holes.
The thread tolerance is 6HX. The tap is built to DIN 376: reduced shank with square drive.
Where this product is used
- For Nickel alloys / age-hardened super alloys >1150 N/mm2.
- Blind or through holes.
- Depths up to approx. 1.5 x d1.
Design features
- Powder metallurgy, 8% cobalt high speed steel (PM-HSS Co). The cobalt keeps strength and hardness at very high cutting temperatures, which suits heavy duty tapping of materials up to 45 HRC.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 to 4 flutes, depending on size.
- 10° right-hand spiral flute.
- Form C chamfer, 3 x P.
- Thread tolerance 6HX.
- Reinforced cutting geometry.
- DIN 376 construction, reduced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T218 1200 | M12 x 1.75 | 1.75 | 10.2 | 110 | 29 | 9 | 7 | 10 | 3 |
| T218 1400 | M14 x 2 | 2 | 12 | 110 | 30 | 11 | 9 | 12 | 3 |
| T218 1600 | M16 x 2 | 2 | 14 | 110 | 32 | 12 | 9 | 12 | 3 |
| T218 2000 | M20 x 2.5 | 2.5 | 17.5 | 140 | 34 | 16 | 12 | 15 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T218 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSS Co |
| Finish | TiCN |
| Designation | Ni |
| Spiral | R10 (10° right-hand) |
| Chamfer | Form C / 3 x P |
| Thread tolerance | 6HX |
| Standard | DIN 376 |
| Flutes | 3 to 4 |
| Sizes in this listing | 4 sizes, M12 x 1.75 to M20 x 2.5 |
Related products
Related Sutton taps: T217 Metric Coarse Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 371, T216 Metric Coarse Spiral Flute Tap R15 Ti - PM-HSS Co - TiCN - DIN 376, T215 Metric Coarse Spiral Flute Tap R15 Ti - PM-HSS Co - TiCN - DIN 371, T221 Metric Coarse Spiral Flute Tap R40 NH - PM-HSSE V3 - Steam Oxide - DIN 371, T214 Metric Coarse Spiral Flute Tap R15 H IK - PM-HSS Co - TiCN - DIN 376.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T218 Metric Coarse Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 376: M12
SKU: A0131316 | Model: T2181200
This is the diameter size d1 M12 option of the Sutton T218 Metric Coarse Spiral Flute Tap R10 Ni - PM-HSS Co - TiCN - DIN 376. Key details for this option: thread size M12 x 1.75, thread length 29mm, tapping drill size 10.2mm, overall length 110mm, square length 10mm.
Sutton T218 Spiral Flute Tap - M - R10 Ni
The Sutton T218 is a spiral flute tap (R10 spiral, Ni designation) for metric coarse (M) threads, made from powder metallurgy, 8% cobalt high speed steel (PM-HSS Co) with a TiCN coating. This listing covers 4 sizes from M12 x 1.75 to M20 x 2.5.
The 10° right-hand spiral flute suits blind holes in tough, short chipping materials, up to 1.5 x D in depth. The slow helix does not transport chips well, so it has no advantage in soft or long chipping materials, especially deeper than 1.5 x d1. The chamfer is Form C (3 x P), generally for blind holes.
The thread tolerance is 6HX. The tap is built to DIN 376: reduced shank with square drive.
