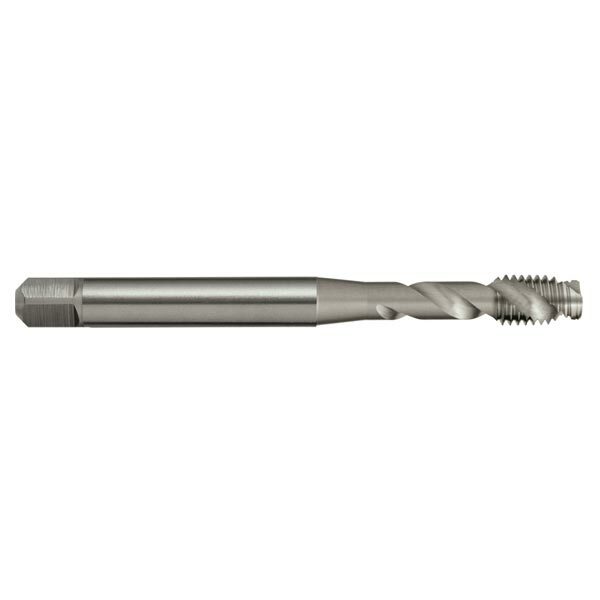

Sutton T231 M3.5 x 0.6 Spiral Flute Tap R45 Al - HSSE - Bright - DIN 371
Available
The Sutton T231 is a spiral flute tap (R45 spiral, Al designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 4 sizes from M3 x 0.5 to M6 x 1.
The 45° right-hand spiral flute suits blind holes in long chipping materials: the high helix angle curls the chips and transports them back out of the hole. The tap cuts on reversal, so the flutes have rake on both front and back faces. The Al designation is for malleable aluminium that forms long chips, with a high rake angle, high helix, two flutes and low thread relief. The chamfer is Form C (2.5 x P), generally for blind holes.
The thread tolerance is ISO 2 / 6H. The tap is built to DIN 371: reinforced shank with square drive.
Where this product is used
- Suitable for use in wrought aluminium and low silicon aluminium.
- Blind holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 2 flutes.
- 45° right-hand spiral flute.
- Form C chamfer, 2.5 x P.
- Thread tolerance ISO 2 / 6H.
- The Al designation is for malleable aluminium that forms long chips, with a high rake angle, high helix, two flutes and low thread relief.
- CrN for longer tool life.
- DIN 371 construction, reinforced shank with square drive.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

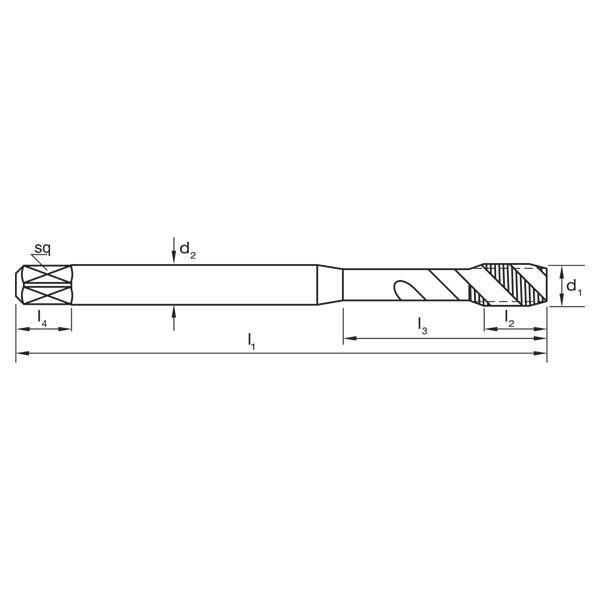

| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T231 0300 | M3 x 0.5 | 0.5 | 2.5 | 56 | 5 | 18 | 3.5 | 2.7 | 6 | 2 |
| T231 0350 | M3.5 x 0.6 | 0.6 | 2.9 | 56 | 6 | 20 | 4 | 3 | 6 | 2 |
| T231 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 8 | 25 | 6 | 4.9 | 8 | 2 |
| T231 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 30 | 6 | 4.9 | 8 | 2 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T231 |
| Type | Spiral flute tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Bright |
| Designation | Al |
| Spiral | R45 (45° right-hand) |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Standard | DIN 371 |
| Flutes | 2 |
| Sizes in this listing | 4 sizes, M3 x 0.5 to M6 x 1 |
Related products
Related Sutton taps: T229 Metric Coarse Spiral Flute Tap R40 NH IK - PM-HSSE V3 - TiAlN - DIN 371, T233 Metric Coarse Spiral Flute Tap R45 Al - HSSE - CrN - DIN 371, T234 Metric Coarse Spiral Flute Tap R45 Al - HSSE - CrN - DIN 376, T235 Metric Coarse Spiral Flute Tap R45 W - HSSE - Plasma Nitride - DIN 371, T236 Metric Coarse Spiral Flute Tap R45 W - HSSE - Plasma Nitride - DIN 376.
