Description
Description
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Stainless Steel - Precipitation Hardening
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Specifications
Specifications
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Stainless Steel - Precipitation Hardening
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

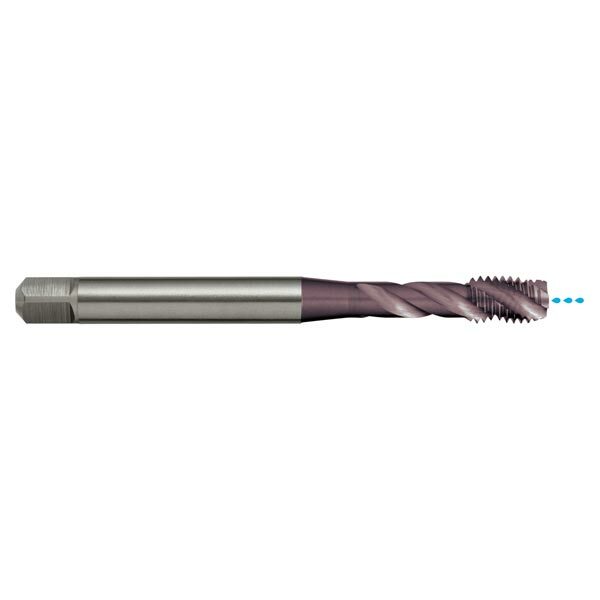

Sutton T229 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
Sutton T229 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
SKU: A0013712
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T229 Metric Spiral Flute Tap by Sutton Tools is a 0 with Titanium Aluminium Nitride (TiAIN) finish. It offers a Drill Size of 8.5 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Stainless Steel - Precipitation Hardening
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Specifications
Specifications
Dimensions
- d1: M5
- d2 (mm): 6
- l1 (mm): 70
- l2 (mm): 8
- l3 (mm): 25
- l4 (mm): 8
- Square Size (mm): 4.9
- z: 3
- Drill Size (mm): 4.2 (drill)
- Pitch (mm): 0.8 (pitch)
Specifications
- Designation: NH
- Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
- Finish: Titanium Aluminium Nitride (TiAIN)
- Max Cut Depth: 2.5xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R40
- X: ru
- Type: Spiral Flute
- Standard: DIN371
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: ISO 2 / 6H
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered
- Steel - High alloy, cast & tool: Annealed
- Stainless Steel - Precipitation Hardening
- Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
Features & Benefits
Features & Benefits
Features
- Suitable for harder short chipping materials up to 42 HRc
- Blind holes
- Depths up to 2.5 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T229 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T229 Metric Spiral Flute Tap by Sutton Tools is a 0 with Titanium Aluminium Nitride (TiAIN) finish. It offers a Drill Size of 8.5 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered. |
Regular price
From $181.04
Sale price
From $181.04
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M5,M6,M8,M10
|
Choose your option
Sutton T229 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
Sutton T229 Metric Spiral Flute Tap - R40 NH IK - Vanadium HSS TiAIN
SKU: A0013712
Hurry up, only 5 items left in stock.
The Sutton T229 Metric Spiral Flute Tap by Sutton Tools is a 0 with Titanium Aluminium Nitride (TiAIN) finish. It offers a Drill Size of 8.5 mm and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered.
