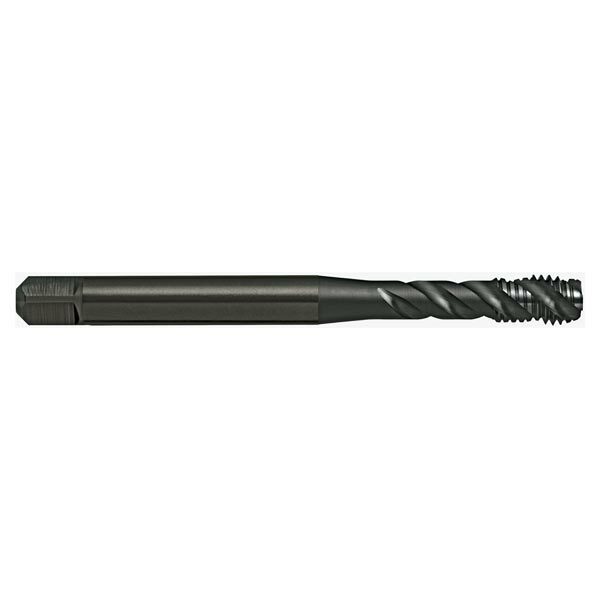

Sutton T2760953 UNF 3/8 x 24 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761111 UNF 7/16 x 20 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761270 UNF 1/2 x 20 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761588 UNF 5/8 x 18 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761905 UNF 3/4 x 16 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2762223 UNF 7/8 x 14 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2762540 UNF #1 x 12 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T276 UNF Spiral Flute Tap - R45 VADH - Premium HSS Blue1
Sutton T276 UNF Spiral Flute Tap - R45 VADH - Premium HSS Blue2
Sutton T2760351 UNF #6 x 40 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2760417 UNF #8 x 36 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2760483 UNF #10 x 32 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2760635 UNF 1/4 x 28 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2760794 UNF 5/16 x 24 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2760953 UNF 3/8 x 24 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761111 UNF 7/16 x 20 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761270 UNF 1/2 x 20 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761588 UNF 5/8 x 18 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2761905 UNF 3/4 x 16 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2762223 UNF 7/8 x 14 Spiral Flute Tap - R45 VADH - HSSE V3 Blue
Sutton T2762540 UNF #1 x 12 Spiral Flute Tap - R45 VADH - HSSE V3 Blue

Sutton T276 UNF Spiral Flute Tap - R45 VADH - Premium HSS Blue

Sutton T276 UNF Spiral Flute Tap - R45 VADH - Premium HSS Blue

SKU: A0014118

$307.32
$307.32
Inc. GST
Buy It Now

Available

The Sutton T276 UNF Spiral Flute Tap by Sutton Tools is a 0 with Steam Oxide finish. It offers 20 TPI and is suitable for Stainless Steel - Austenitic.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

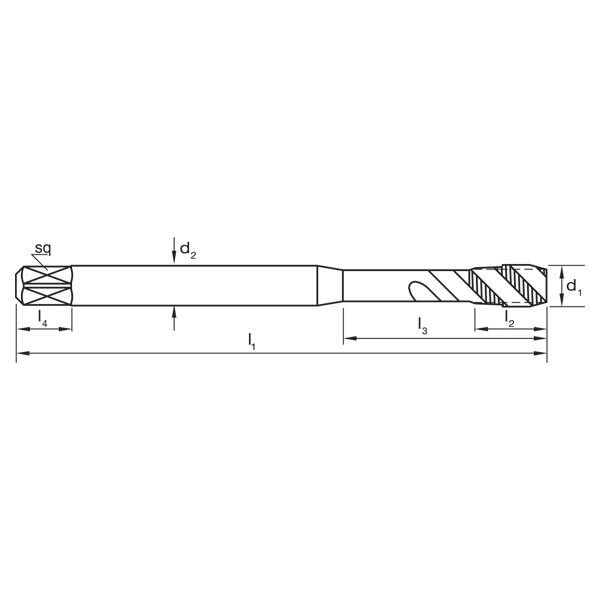

Dimensions

  • d1 (mm): 3.5052
  • d2 (mm): 4
  • l1 (mm): 56
  • l2 (mm): 6
  • l3 (mm): 20
  • l4 (mm): 6
  • Square Size (mm): 3
  • z: 3
  • Drill Size (mm): 2.9 (drill)
  • TPI: 40 (TPI)

Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Blind holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Dimensions

  • d1 (mm): 3.5052
  • d2 (mm): 4
  • l1 (mm): 56
  • l2 (mm): 6
  • l3 (mm): 20
  • l4 (mm): 6
  • Square Size (mm): 3
  • z: 3
  • Drill Size (mm): 2.9 (drill)
  • TPI: 40 (TPI)

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Steam Oxide (Blue)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • Helix Angle: R45
  • X: als
  • Type: Spiral Flute
  • Standard: DIN2184-1
  • Thread Form: UNF
  • Nut Tolerance: 2B
  • Lead: Form C / 3 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel - Duplex

Features

  • Use in stainless steels and high strength steels up to 1000N/mm2
  • Blind holes
  • Suitable for synchronous tapping in machine operations
  • Depths up to approx. 3 x d1
