Description
Description

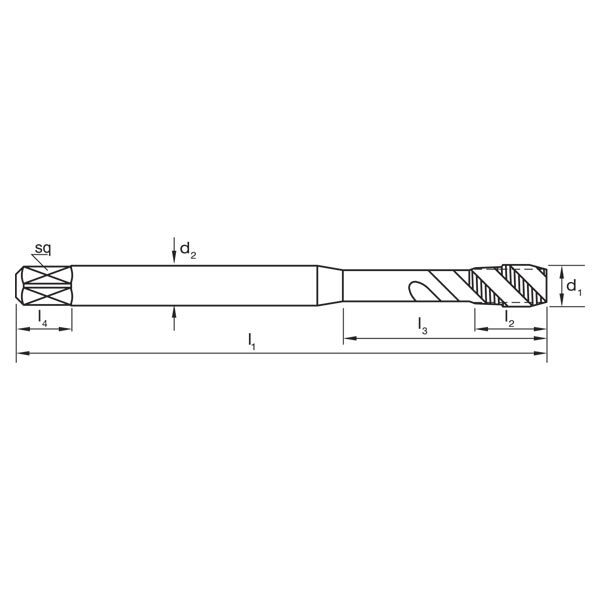

Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 10
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.5 (drill)
- TPI: 28 (TPI)
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 3 x d1
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNF
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
- High temperature alloys - Fe based: Annealed
Specifications
Specifications
Dimensions
- d1 (mm): 6.35
- d2 (mm): 7
- l1 (mm): 80
- l2 (mm): 10
- l3 (mm): 30
- l4 (mm): 8
- Square Size (mm): 5.5
- z: 3
- Drill Size (mm): 5.5 (drill)
- TPI: 28 (TPI)
Specifications
- Designation: VA (for stainless and tough steels)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- Helix Angle: R45
- X: als
- Type: Spiral Flute
- Standard: DIN2184-1
- Thread Form: UNF
- Nut Tolerance: 2B
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Stainless Steel – Duplex
- Stainless Steel - Precipitation Hardening
- High temperature alloys - Fe based: Annealed
Features & Benefits
Features & Benefits
Features
- Use in stainless steels and high strength steels up to 1000N/mm2
- Blind holes
- Suitable for synchronous tapping in machine operations
- Depths up to approx. 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

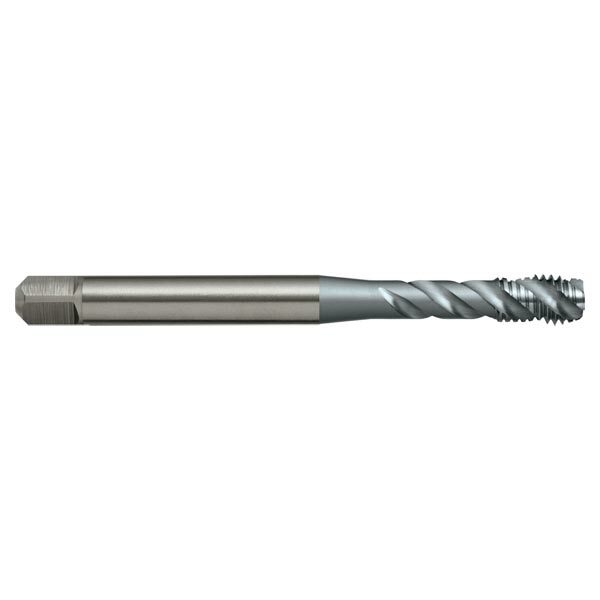

Sutton T277 UNF Spiral Flute Tap - R45 VADH - Premium HSS TiCN
