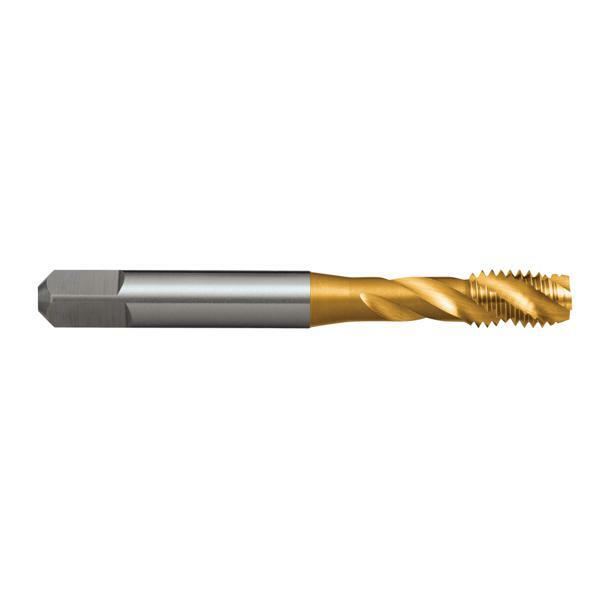

Sutton T443 UNF Spiral Flute Tap - Bottoming - Premium HSS Tinite1

Sutton T443 UNF Spiral Flute Tap - Bottoming - Premium HSS Tinite2

Sutton T4430483 UNF #10 x 32 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4430635 UNF 1/4 x 28 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4430794 UNF 5/16 x 24 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4430953 UNF 3/8 x 24 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4431270 UNF 1/2 x 20 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4431588 UNF 5/8 x 18 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Sutton T4431905 UNF 3/4 x 16 Spiral Flute Tap - Bottoming - HSSE V3 TiN

Description +

Dimensions

d1 (mm): 4.826
d2 (mm): 5
l1 (mm): 58
l2 (mm): 11
l3 (mm): 22
l4 (mm): 7
sq: 4
z: 3
Drill Size (mm): 4.1 (drill)
TPI: 32 (TPI)

Features

Form C / 3 x P General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: UNF
Lead: 2B

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications +

Dimensions

d1 (mm): 4.826
d2 (mm): 5
l1 (mm): 58
l2 (mm): 11
l3 (mm): 22
l4 (mm): 7
sq: 4
z: 3
Drill Size (mm): 4.1 (drill)
TPI: 32 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 2.5xD
Shank Form: Reinforced Shank (with square drive)
Helix Angle: R40
X: als
Type: Spiral Flute
Standard: ISO529
Thread Form: UNF
Lead: 2B

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features & Benefits +

Features

Form C / 3 x P General purpose use
Suitable for materials up to 1000N/mm2
Blind holes
Depths up to approx. 2.5 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T443 UNF Spiral Flute Tap - Bottoming - Premium HSS Tinite

SKU: A0015437

$371.64

Inc. GST

Buy It Now

Available

The Sutton T443 UNF Spiral Flute Tap by Sutton Tools is a 0 made from Premium Grade High Speed Steel HSSE-V3. It provides 20 TPI and is suitable for Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered.
