Sutton T311 M1.2 x 0.25 Forming Tap No Groove - HSSE - Bright - DIN 2174
Available

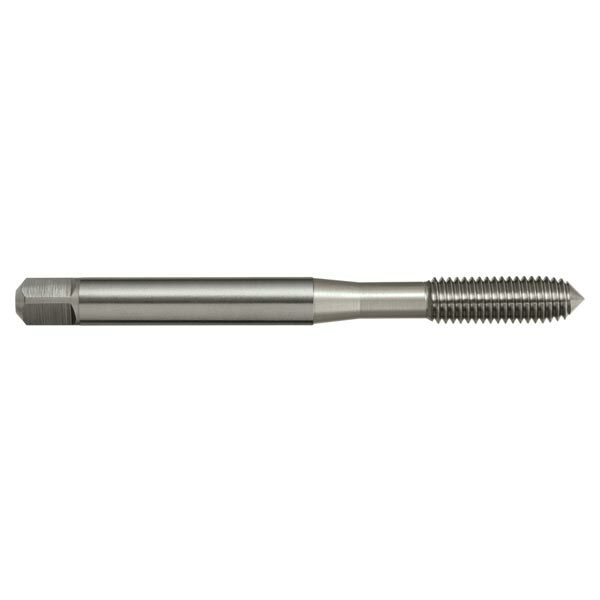

The Sutton T311 is a forming (roll) tap with no groove for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 18 sizes from M1 x 0.25 to M10 x 1.5.
A forming tap has no flutes and does not cut: it rolls the thread by displacing the metal, so it makes no chips and suits blind and through holes. Forming needs more machine power because of the torque involved, the rolled thread is stronger than a cut thread because the grain structure stays uniform through the thread form, and the tapping drill size differs from that of a cutting tap. The chamfer is Form D (4 x P).
The thread tolerance is 6HX. The tap is built to DIN 2174.
Where this product is used
- Suitable for materials with >10% elongation.
- Through or blind holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- Form D chamfer, 4 x P.
- Thread tolerance 6HX.
- DIN 2174 construction.
Sizes

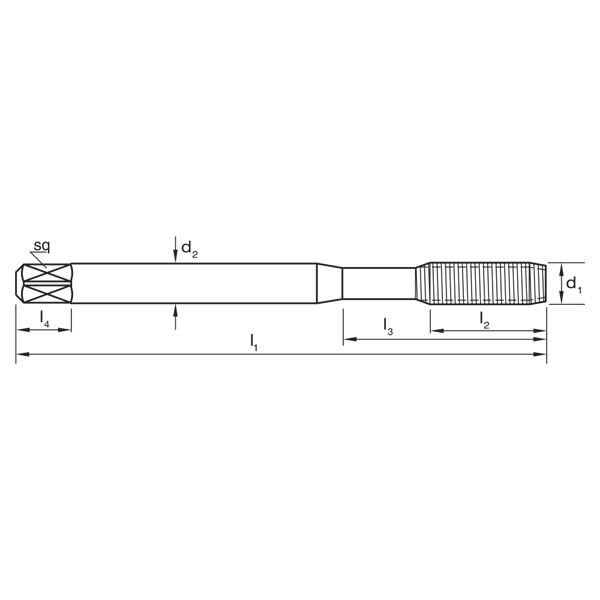

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| T311 0100 | M1 x 0.25 | 0.25 | 0.9 | 40 | 6 | - | 2.5 | 2.1 | 3 |
| T311 0120 | M1.2 x 0.25 | 0.25 | 1.1 | 40 | 6 | - | 2.5 | 2.1 | 3 |
| T311 0140 | M1.4 x 0.3 | 0.3 | 1.28 | 40 | 6 | - | 2.5 | 2.1 | 3 |
| T311 0160 | M1.6 x 0.35 | 0.35 | 1.45 | 40 | 7 | - | 2.5 | 2.1 | 3 |
| T311 0170 | M1.7 x 0.35 | 0.35 | 1.55 | 40 | 8 | - | 2.5 | 2.1 | 3 |
| T311 0180 | M1.8 x 0.35 | 0.35 | 1.65 | 40 | 8 | - | 2.5 | 2.1 | 3 |
| T311 0200 | M2 x 0.4 | 0.4 | 1.8 | 45 | 8 | - | 2.8 | 2.1 | 5 |
| T311 0220 | M2.2 x 0.45 | 0.45 | 2 | 45 | 8 | - | 2.8 | 2.1 | 5 |
| T311 0230 | M2.3 x 0.4 | 0.4 | 2.1 | 45 | 9 | - | 2.8 | 2.1 | 5 |
| T311 0250 | M2.5 x 0.45 | 0.45 | 2.3 | 50 | 9 | - | 2.8 | 2.1 | 5 |
| T311 0260 | M2.6 x 0.45 | 0.45 | 2.4 | 50 | 9 | - | 2.8 | 2.1 | 5 |
| T311 0300 | M3 x 0.5 | 0.5 | 2.8 | 56 | 11 | 18 | 3.5 | 2.7 | 6 |
| T311 0350 | M3.5 x 0.6 | 0.6 | 3.2 | 56 | 13 | 20 | 4 | 3 | 6 |
| T311 0400 | M4 x 0.7 | 0.7 | 3.7 | 63 | 13 | 21 | 4.5 | 3.4 | 6 |
| T311 0500 | M5 x 0.8 | 0.8 | 4.6 | 70 | 16 | 25 | 6 | 4.9 | 8 |
| T311 0600 | M6 x 1 | 1 | 5.5 | 80 | 19 | 30 | 6 | 4.9 | 8 |
| T311 0800 | M8 x 1.25 | 1.25 | 7.4 | 90 | 22 | 35 | 8 | 6.2 | 9 |
| T311 1000 | M10 x 1.5 | 1.5 | 9.3 | 100 | 24 | 39 | 10 | 8 | 11 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T311 |
| Type | Forming (roll) tap with no groove |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Bright |
| Designation | N |
| Chamfer | Form D / 4 x P |
| Thread tolerance | 6HX |
| Standard | DIN 2174 |
| Sizes in this listing | 18 sizes, M1 x 0.25 to M10 x 1.5 |
Related products
Related Sutton taps: T309 Metric Coarse Forming Tap No Groove - HSSE - Bright - DIN 2174, T313 Metric Coarse Forming Tap No Groove - HSSE - TiN - DIN 2174, T315 Metric Coarse Forming Tap No Groove - HSSE - TiN - DIN 2174, T319 Metric Coarse Forming Tap Multi Coolant Groove - HSSE - TiCN - DIN 2174, T319 M1.6 x 0.35 Metric Coarse Forming Tap Multi Coolant Groove - HSSE - TiCN - DIN 2174.
