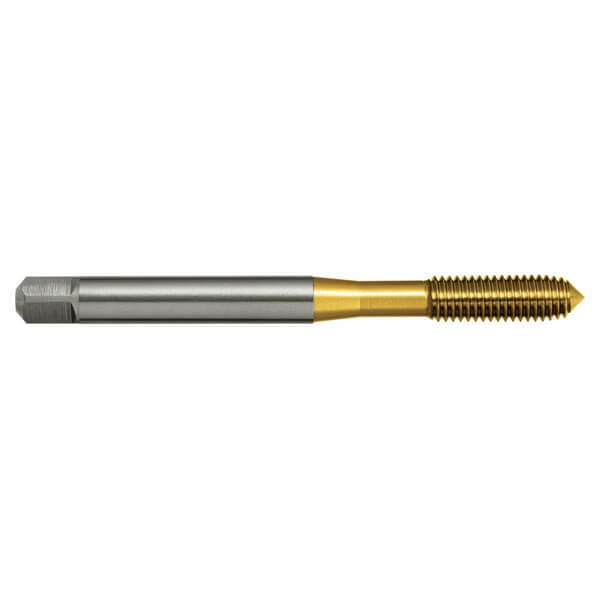

Sutton T3150350 Metric M3.5 x 0.6 Thread Forming Tap - HSSE V3 TiN
Sutton T3150400 Metric M4 x 0.7 Thread Forming Tap - HSSE V3 TiN
Sutton T3150500 Metric M5 x 0.8 Thread Forming Tap - HSSE V3 TiN
Sutton T3150600 Metric M6 x 1 Thread Forming Tap - HSSE V3 TiN

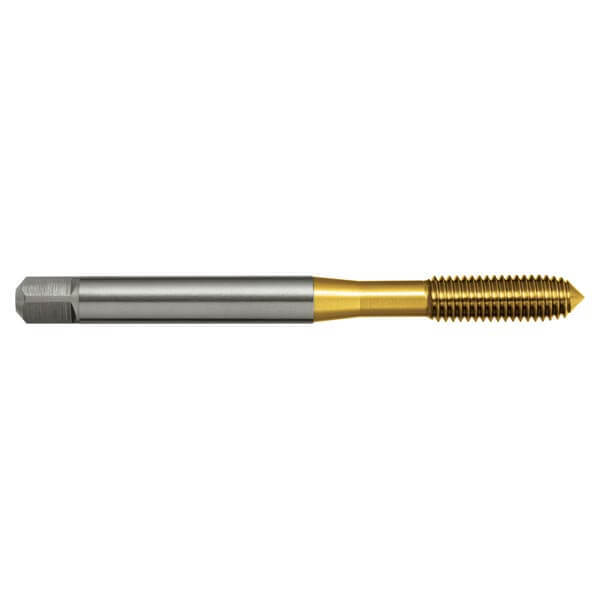

Sutton T3150800 Metric M8 x 1.25 Thread Forming Tap - HSSE V3 TiN
Sutton T3151000 Metric M10 x 1.5 Thread Forming Tap - HSSE V3 TiN
Sutton T315 Metric Thread Forming Tap - Premium HSS Tinite1
Sutton T315 Metric Thread Forming Tap - Premium HSS Tinite2
Sutton T3150100 Metric M1 x 0.25 Thread Forming Tap - HSSE V3 TiN
Sutton T3150120 Metric M1.2 x 0.25 Thread Forming Tap - HSSE V3 TiN
Sutton T3150140 Metric M1.4 x 0.3 Thread Forming Tap - HSSE V3 TiN
Sutton T3150160 Metric M1.6 x 0.35 Thread Forming Tap - HSSE V3 TiN
Sutton T3150170 Metric M1.7 x 0.35 Thread Forming Tap - HSSE V3 TiN
Sutton T3150180 Metric M1.8 x 0.35 Thread Forming Tap - HSSE V3 TiN
Sutton T3150200 Metric M2 x 0.4 Thread Forming Tap - HSSE V3 TiN
Sutton T3150220 M2.2 x 0.455 Thread Forming Tap - HSSE V3 TiN
Sutton T3150230 Metric M2.3 x 0.4 Thread Forming Tap - HSSE V3 TiN
Sutton T3150250 Metric M2.5 x 0.45 Thread Forming Tap - HSSE V3 TiN
Sutton T3150260 Metric M2.6 x 0.45 Thread Forming Tap - HSSE V3 TiN
Sutton T3150300 Metric M3 x 0.5 Thread Forming Tap - HSSE V3 TiN
Sutton T3150350 Metric M3.5 x 0.6 Thread Forming Tap - HSSE V3 TiN
Sutton T3150400 Metric M4 x 0.7 Thread Forming Tap - HSSE V3 TiN
Sutton T3150500 Metric M5 x 0.8 Thread Forming Tap - HSSE V3 TiN
Sutton T3150600 Metric M6 x 1 Thread Forming Tap - HSSE V3 TiN
Sutton T3150800 Metric M8 x 1.25 Thread Forming Tap - HSSE V3 TiN
Sutton T3151000 Metric M10 x 1.5 Thread Forming Tap - HSSE V3 TiN

Sutton T315 Metric Thread Forming Tap - Premium HSS Tinite

Sutton T315 Metric Thread Forming Tap - Premium HSS Tinite

SKU: A0014464

$127.03
$127.03
Inc. GST
Buy It Now

Available

The Sutton T315 Metric Thread Forming Tap by Sutton Tools is a 0 with Titanium Nitride finish. It offers a drill size of 1.1 (drill) and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.

Resources

File icon
Sutton-Tools-Taps-Dies-Threading-Catalogue
File icon
Sutton-Tools-ISO-Taps-Catalogue

Dimensions

  • d1: M1
  • d2 (mm): 2.5
  • l1 (mm): 40
  • l2 (mm): 6
  • l4 (mm): 3
  • Square Size (mm): 2.1
  • Drill Size (mm): 0.9 (drill)
  • Pitc (mm): 0.25 (Pitch)

Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - No Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Dimensions

  • d1: M1
  • d2 (mm): 2.5
  • l1 (mm): 40
  • l2 (mm): 6
  • l4 (mm): 3
  • Square Size (mm): 2.1
  • Drill Size (mm): 0.9 (drill)
  • Pitc (mm): 0.25 (Pitch)

Specifications

  • Designation: N (for normal and general purpose type materials)
  • Material: Premium Grade High Speed Steel (HSSE-V3)
  • Finish: Titanium Nitride (TiN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Fluteless - No Groove
  • Standard: DIN2174
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form D / 4 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features

  • Suitable for materials with >10% elongation
  • Through or blind holes
  • Depths up to 3 x d1
