Description
Description

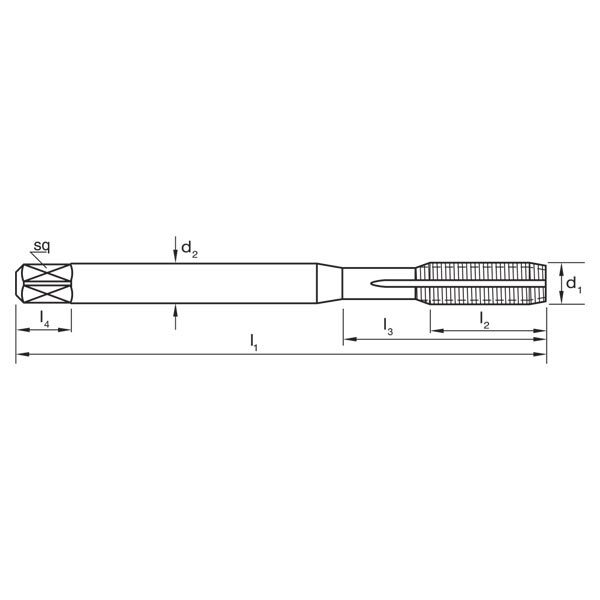

Dimensions
- d1: M1.4
- d2 (mm): 2.5
- l1 (mm): 40
- l2 (mm): 6
- l4 (mm): 3
- Square Size (mm): 2.1
- Drill Size (mm): 1.28 (drill)
- Pitch (mm): 0.3 (pitch)
Features
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Fluteless - Multi Coolant Groove
- Standard: DIN2174
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Specifications
Specifications
Dimensions
- d1: M1.4
- d2 (mm): 2.5
- l1 (mm): 40
- l2 (mm): 6
- l4 (mm): 3
- Square Size (mm): 2.1
- Drill Size (mm): 1.28 (drill)
- Pitch (mm): 0.3 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Fluteless - Multi Coolant Groove
- Standard: DIN2174
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Features & Benefits
Features & Benefits
Features
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

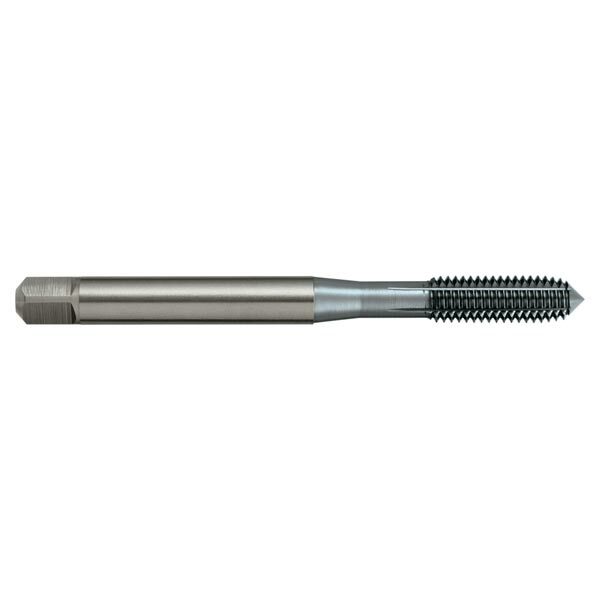

Sutton T319 Metric Thread Forming Tap - Premium HSS TiCN
Sutton T319 Metric Thread Forming Tap - Premium HSS TiCN
SKU: A0014481
- Wide Range
- Reliable Services
- Proven Trust
Available
The Sutton T319 Metric Thread Forming Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3) material. It provides Drill Size 1.28 (drill) and is suitable for Aluminium & Magnesium, wrought alloy - Non Heat Treatable.
- FREE SHIPPING OVER $299*
- RETURN AND EXCHANGE POLICY
Couldn't load pickup availability
Description
Description
Dimensions
- d1: M1.4
- d2 (mm): 2.5
- l1 (mm): 40
- l2 (mm): 6
- l4 (mm): 3
- Square Size (mm): 2.1
- Drill Size (mm): 1.28 (drill)
- Pitch (mm): 0.3 (pitch)
Features
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Fluteless - Multi Coolant Groove
- Standard: DIN2174
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Specifications
Specifications
Dimensions
- d1: M1.4
- d2 (mm): 2.5
- l1 (mm): 40
- l2 (mm): 6
- l4 (mm): 3
- Square Size (mm): 2.1
- Drill Size (mm): 1.28 (drill)
- Pitch (mm): 0.3 (pitch)
Specifications
- Designation: N (for normal general purpose type materials)
- Material: Premium Grade High Speed Steel (HSSE-V3)
- Finish: Titanium Carbonitride (TiCN)
- Max Cut Depth: 3xD
- Shank Form: Reinforced Shank (with square drive)
- X: als
- Type: Fluteless - Multi Coolant Groove
- Standard: DIN2174
- Thread Form: ISO Metric Coarse (M)
- Nut Tolerance: 6HX
- Lead: Form C / 3 x P
Applications
Applications
Applications
- Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
- Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
- Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
- Steel - Low alloy & cast < 5% of alloying elements: Annealed
- Stainless Steel - Austenitic: Age Hardened
- Aluminum & Magnesium, wrought alloy - Non Heat Treatable
- Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
- Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%
Features & Benefits
Features & Benefits
Features
- Suitable for materials with >10% elongation
- Through or blind holes
- Depths up to 3 x d1
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Sutton T319 Metric Thread Forming Tap - Premium HSS TiCN
Customer Service
Mon-Fri, 08:00-05:00pm
Call Us
(02) 9773-0122
Talk to a Sales Engineer
sales@aimsindustrial.com.au
Warehouse Address
Milperra NSW 2214, Australia
Your cart
(0)
Your cart is currently empty.
Not sure where to start? Try these collections:
Order note
Estimate Shipping
Product Comparison
| Description |
| Price |
| Vendor |
| Type |
| Product variants |
|
| The Sutton T319 Metric Thread Forming Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3) material. It provides Drill Size 1.28 (drill) and is suitable for Aluminium & Magnesium, wrought alloy - Non Heat Treatable. |
Regular price
From $78.29
Sale price
From $78.29
Regular price
Unit price
/per
| Sutton Tools |
Diameter (metric)
M1.4,M2,M2.5,M3,M3.5,M4,M5,M6,M8,M10
|
Choose your option
Sutton T319 Metric Thread Forming Tap - Premium HSS TiCN
Sutton T319 Metric Thread Forming Tap - Premium HSS TiCN
SKU: A0014481
Hurry up, only 5 items left in stock.
The Sutton T319 Metric Thread Forming Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3) material. It provides Drill Size 1.28 (drill) and is suitable for Aluminium & Magnesium, wrought alloy - Non Heat Treatable.
