Sutton T320 M6 x 1 Forming Tap Multi Coolant Groove - HSSE - TiCN - DIN 2174
Available

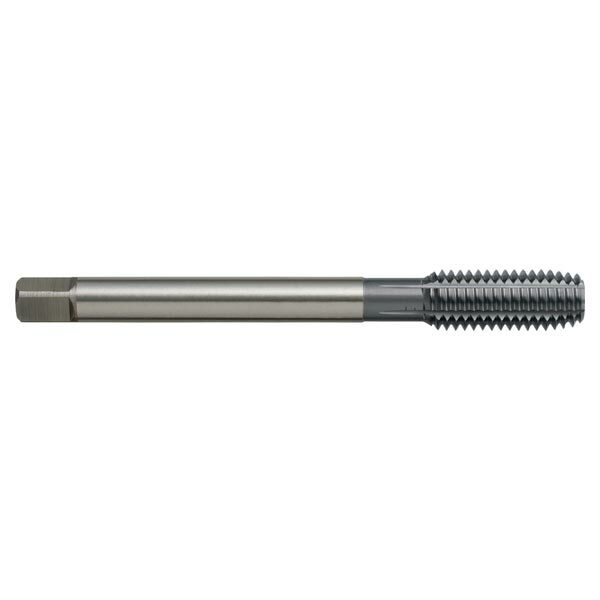

The Sutton T320 is a forming (roll) tap with multi coolant groove for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a TiCN coating. This listing covers 7 sizes from M6 x 1 to M20 x 2.5.
A forming tap has no flutes and does not cut: it rolls the thread by displacing the metal, so it makes no chips and suits blind and through holes. Forming needs more machine power because of the torque involved, the rolled thread is stronger than a cut thread because the grain structure stays uniform through the thread form, and the tapping drill size differs from that of a cutting tap. The chamfer is Form C (2.5 x P).
The thread tolerance is 6HX. The tap is built to DIN 2174.
Where this product is used
- Suitable for materials with >10% elongation.
- Through or blind holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- Form C chamfer, 2.5 x P.
- Thread tolerance 6HX.
- DIN 2174 construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.

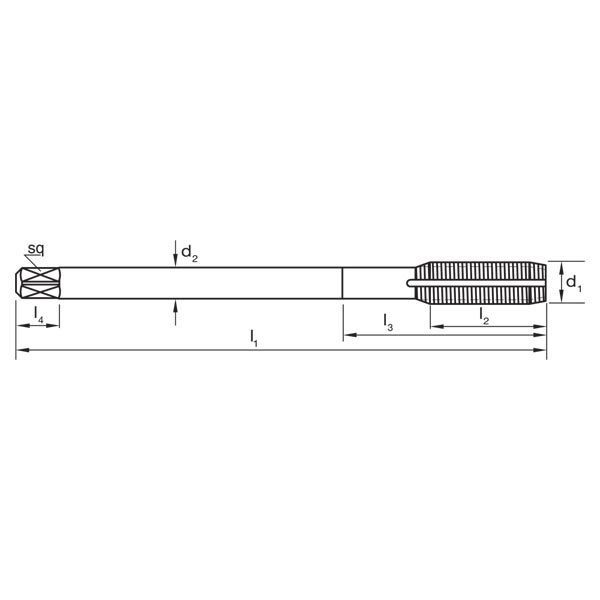

| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) |
|---|---|---|---|---|---|---|---|---|
| T320 0600 | M6 x 1 | 1 | 5.5 | 80 | 19 | 4.5 | 3.4 | 6 |
| T320 0800 | M8 x 1.25 | 1.25 | 7.4 | 90 | 22 | 6 | 4.9 | 8 |
| T320 1000 | M10 x 1.5 | 1.5 | 9.3 | 100 | 24 | 7 | 5.5 | 8 |
| T320 1200 | M12 x 1.75 | 1.75 | 11.2 | 110 | 29 | 9 | 7 | 10 |
| T320 1400 | M14 x 2 | 2 | 13.1 | 110 | 30 | 11 | 9 | 12 |
| T320 1600 | M16 x 2 | 2 | 15.1 | 110 | 32 | 12 | 9 | 12 |
| T320 2000 | M20 x 2.5 | 2.5 | 18.9 | 140 | 34 | 16 | 12 | 15 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T320 |
| Type | Forming (roll) tap with multi coolant groove |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | TiCN |
| Designation | N |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 2174 |
| Sizes in this listing | 7 sizes, M6 x 1 to M20 x 2.5 |
