Sutton T322 Metric Thread Forming Tap - Premium HSS TiCN1

Sutton T322 Metric Thread Forming Tap - Premium HSS TiCN2

Sutton T3221200 Metric M12 x 1.75 Thread Forming Tap - HSSE V3 TiCN

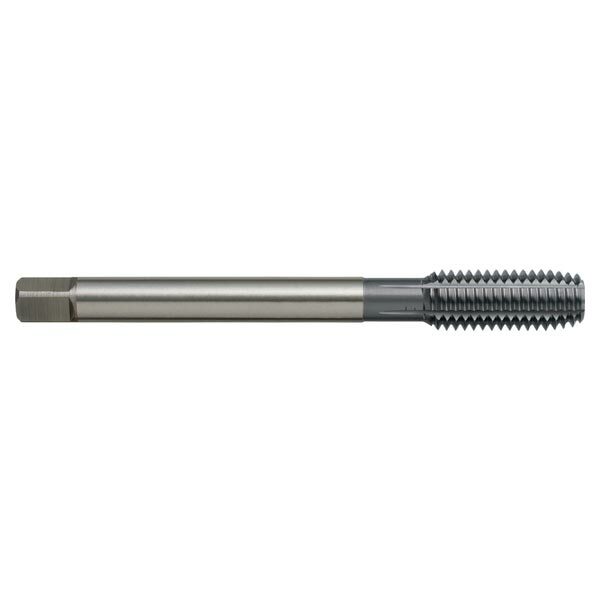

Sutton T3221400 Metric M14 x 2 Thread Forming Tap - HSSE V3 TiCN

Sutton T3221600 Metric M16 x 2 Thread Forming Tap - HSSE V3 TiCN

Description +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 29
l4 (mm): 10
Square Size (mm): 7
Drill Size (mm): 11.2 (drill)
Pitch (mm): 1.75 (pitch)

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove DIN2174
Standard: ISO Metric Coarse (M)
Thread Form: ISO Metric Coarse (M)
Lead: Form D / 4 x P

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Specifications +

Dimensions

d1: M12
d2 (mm): 9
l1 (mm): 110
l2 (mm): 29
l4 (mm): 10
Square Size (mm): 7
Drill Size (mm): 11.2 (drill)
Pitch (mm): 1.75 (pitch)

Specifications

Designation: N (for normal general purpose type materials)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 3xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Fluteless - Multi Coolant Groove DIN2174
Standard: ISO Metric Coarse (M)
Thread Form: ISO Metric Coarse (M)
Lead: Form D / 4 x P

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Stainless Steel - Austenitic: Age Hardened
Aluminum & Magnesium, wrought alloy - Non Heat Treatable
Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
Copper & Copper alloys (Brass/Bronze) - Free cutting, Pb > 1%

Features & Benefits +

Features

Suitable for materials with >10% elongation
Through or blind holes
Depths up to 3 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T322 Metric Thread Forming Tap - Premium HSS TiCN

SKU: A0014504

$174.08

Inc. GST

Buy It Now

Available

The Sutton T322 Metric Thread Forming Tap by Sutton Tools is a 0 with Premium Grade High Speed Steel (HSSE-V3) material. It offers l1 (mm): 110 and is suitable for Aluminum & Magnesium, wrought alloy - Non Heat Treatable.
