Sutton T313 M1.4 x 0.3 Forming Tap No Groove - HSSE - TiN - DIN 2174
Available

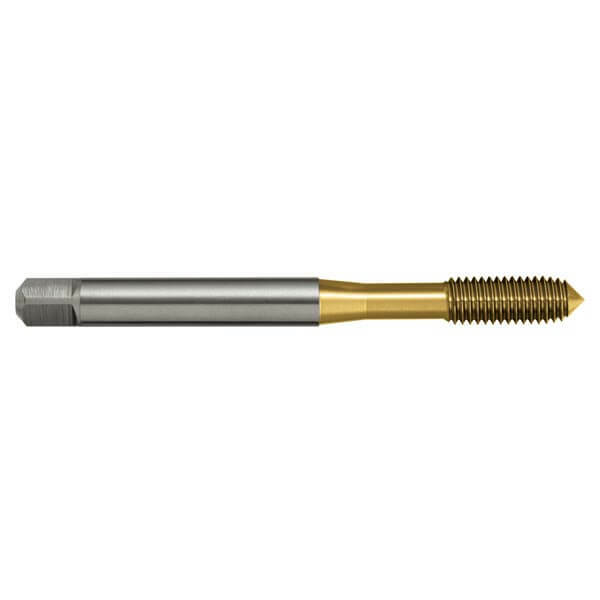

The Sutton T313 is a forming (roll) tap with no groove for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a gold titanium nitride (TiN) coating. This listing covers 18 sizes from M1 x 0.25 to M10 x 1.5.
A forming tap has no flutes and does not cut: it rolls the thread by displacing the metal, so it makes no chips and suits blind and through holes. Forming needs more machine power because of the torque involved, the rolled thread is stronger than a cut thread because the grain structure stays uniform through the thread form, and the tapping drill size differs from that of a cutting tap. The chamfer is Form C (2.5 x P).
The thread tolerance is 6HX. The tap is built to DIN 2174.
Where this product is used
- Suitable for materials with >10% elongation.
- Through or blind holes.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Gold titanium nitride (TiN) coating for 3 to 8 times longer tool life than uncoated tools, with higher speeds and feeds.
- Form C chamfer, 2.5 x P.
- Thread tolerance 6HX.
- DIN 2174 construction.
Sizes

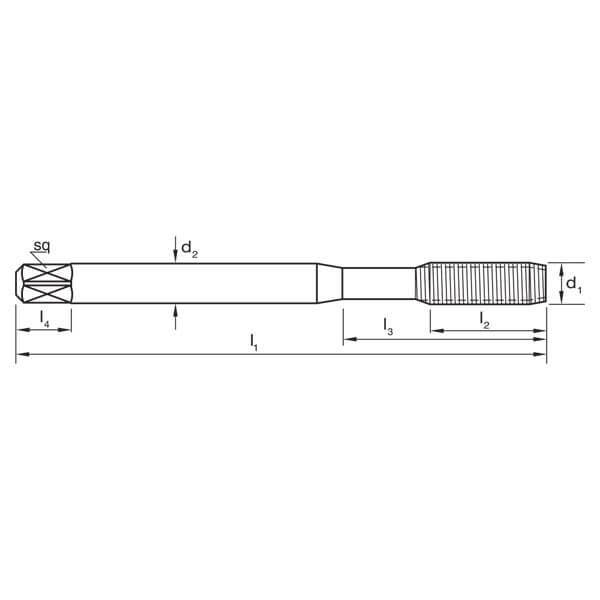

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) |
|---|---|---|---|---|---|---|---|---|---|
| T313 0100 | M1 x 0.25 | 0.25 | 0.9 | 40 | 6 | - | 2.5 | 2.1 | 3 |
| T313 0120 | M1.2 x 0.25 | 0.25 | 1.1 | 40 | 6 | - | 2.5 | 2.1 | 3 |
| T313 0140 | M1.4 x 0.3 | 0.3 | 1.28 | 40 | 6 | - | 2.5 | 2.1 | 3 |
| T313 0160 | M1.6 x 0.35 | 0.35 | 1.45 | 40 | 7 | - | 2.5 | 2.1 | 3 |
| T313 0170 | M1.7 x 0.35 | 0.35 | 1.55 | 40 | 8 | - | 2.5 | 2.1 | 3 |
| T313 0180 | M1.8 x 0.35 | 0.35 | 1.65 | 40 | 8 | - | 2.5 | 2.1 | 3 |
| T313 0200 | M2 x 0.4 | 0.4 | 1.8 | 45 | 8 | - | 2.8 | 2.1 | 5 |
| T313 0220 | M2.2 x 0.45 | 0.45 | 2 | 45 | 8 | - | 2.8 | 2.1 | 5 |
| T313 0230 | M2.3 x 0.4 | 0.4 | 2.1 | 45 | 9 | - | 2.8 | 2.1 | 5 |
| T313 0250 | M2.5 x 0.45 | 0.45 | 2.3 | 50 | 9 | - | 2.8 | 2.1 | 5 |
| T313 0260 | M2.6 x 0.45 | 0.45 | 2.4 | 50 | 9 | - | 2.8 | 2.1 | 5 |
| T313 0300 | M3 x 0.5 | 0.5 | 2.8 | 56 | 11 | 18 | 3.5 | 2.7 | 6 |
| T313 0350 | M3.5 x 0.6 | 0.6 | 3.2 | 56 | 13 | 20 | 4 | 3 | 6 |
| T313 0400 | M4 x 0.7 | 0.7 | 3.7 | 63 | 13 | 21 | 4.5 | 3.4 | 6 |
| T313 0500 | M5 x 0.8 | 0.8 | 4.6 | 70 | 16 | 25 | 6 | 4.9 | 8 |
| T313 0600 | M6 x 1 | 1 | 5.5 | 80 | 19 | 30 | 6 | 4.9 | 8 |
| T313 0800 | M8 x 1.25 | 1.25 | 7.4 | 90 | 22 | 35 | 8 | 6.2 | 9 |
| T313 1000 | M10 x 1.5 | 1.5 | 9.3 | 100 | 24 | 39 | 10 | 8 | 11 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T313 |
| Type | Forming (roll) tap with no groove |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | TiN |
| Designation | N |
| Chamfer | Form C / 2.5 x P |
| Thread tolerance | 6HX |
| Standard | DIN 2174 |
| Sizes in this listing | 18 sizes, M1 x 0.25 to M10 x 1.5 |
Related products
Related Sutton taps: T315 Metric Coarse Forming Tap No Groove - HSSE - TiN - DIN 2174, T311 Metric Coarse Forming Tap No Groove - HSSE - Bright - DIN 2174, T309 Metric Coarse Forming Tap No Groove - HSSE - Bright - DIN 2174, T319 Metric Coarse Forming Tap Multi Coolant Groove - HSSE - TiCN - DIN 2174, T319 M1.6 x 0.35 Metric Coarse Forming Tap Multi Coolant Groove - HSSE - TiCN - DIN 2174.
