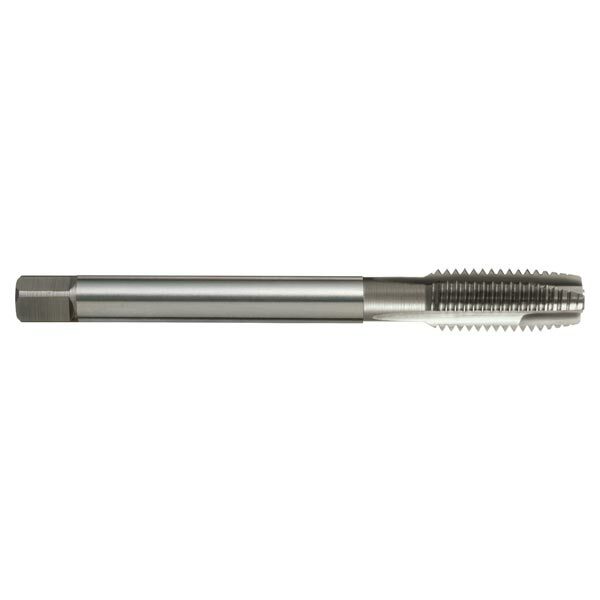

Sutton T338 M10 x 1.5 Spiral Point Tap Extra Length - HSSE - Bright
Available
The Sutton T338 is a spiral point (gun) tap (N designation) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a bright finish. This listing covers 6 sizes from M10 x 1.5 to M24 x 3.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is ISO 2 / 6H.
Where this product is used
- For long reach applications.
- Suitable for materials up to 1000 N/mm2.
- Depths up to 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Bright finish for general purpose applications.
- 3 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance ISO 2 / 6H.
- The N designation is for normal, general purpose materials, with a normal rake angle and normal thread relief.
- d2 and sq in accordance to DIN371.
Sizes

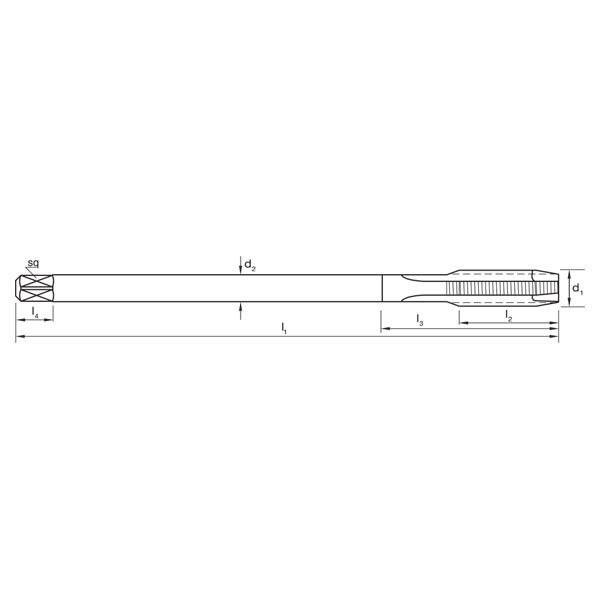

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T338 1000 | M10 x 1.5 | 1.5 | 8.5 | 200 | 24 | 100 | 7 | 5.5 | 8 | 3 |
| T338 1200 | M12 x 1.75 | 1.75 | 10.2 | 220 | 28 | 110 | 9 | 7 | 10 | 3 |
| T338 1400 | M14 x 2 | 2 | 12 | 220 | 30 | 110 | 11 | 9 | 12 | 3 |
| T338 1600 | M16 x 2 | 2 | 14 | 220 | 32 | 110 | 12 | 9 | 12 | 3 |
| T338 2000 | M20 x 2.5 | 2.5 | 17.5 | 280 | 34 | 110 | 16 | 12 | 15 | 4 |
| T338 2400 | M24 x 3 | 3 | 21 | 320 | 38 | 120 | 18 | 14.5 | 17 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T338 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Bright |
| Designation | N |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | ISO 2 / 6H |
| Flutes | 3 to 4 |
| Sizes in this listing | 6 sizes, M10 x 1.5 to M24 x 3 |
Related products
Related Sutton taps: T337 Metric Coarse Spiral Point Tap Extra Length - HSSE - Bright, T377 Metric Coarse Spiral Point Tap Synchro - PM-HSSE V3 - TiCN, T379 Metric Coarse Spiral Point Tap Synchro IK - PM-HSSE V3 - TiCN, T393 Metric Coarse Spiral Point Tap Intermediate - HSSE - Bright - ISO 529, T394 Metric Coarse Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529.
