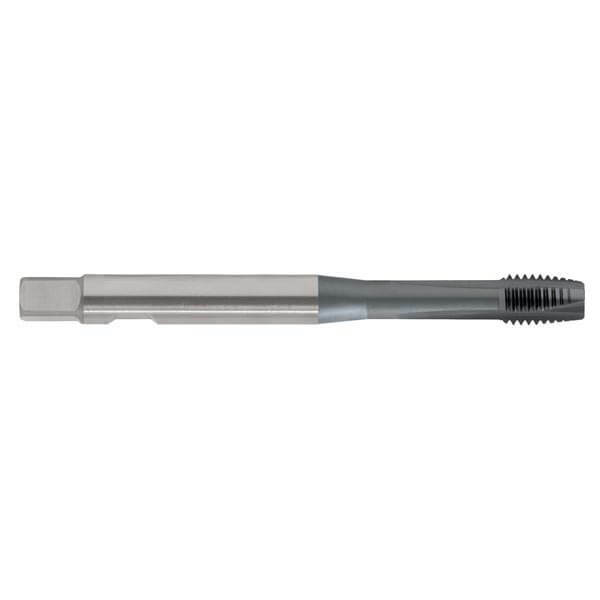

Sutton T377 M2 x 0.4 Spiral Point Tap Synchro - PM-HSSE V3 - TiCN
Available
The Sutton T377 is a spiral point (gun) tap (HSC designation, internal coolant, synchro) for metric coarse (M) threads, made from powder metallurgy, vanadium grade high speed steel (PM-HSSE V3) with a TiCN coating. This listing covers 13 sizes from M2 x 0.4 to M20 x 2.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The chamfer is Form B (4.5 x P), for through holes in medium and long chipping materials.
The thread tolerance is 6HX. The internal coolant duct (IK) delivers coolant through the tap to the cutting zone.
Where this product is used
- Suitable for materials up to 850 N/mm2.
- Through holes up to 2 x d1.
Design features
- Powder metallurgy, vanadium grade high speed steel (PM-HSSE V3). The very fine and uniform grain structure allows high hardness while keeping good toughness, for materials up to 40 HRC and difficult-to-machine materials such as stainless steels.
- TiCN coating for abrasive materials such as cast iron and aluminium alloys, and adhesive materials such as copper and copper-based alloys.
- 3 to 4 flutes, depending on size.
- Form B chamfer, 4.5 x P.
- Thread tolerance 6HX.
- For high speed and precision tapping.
- For rigid tapping in CNC machines with synchronised feed.
- h6 endmill shank.
Sizes

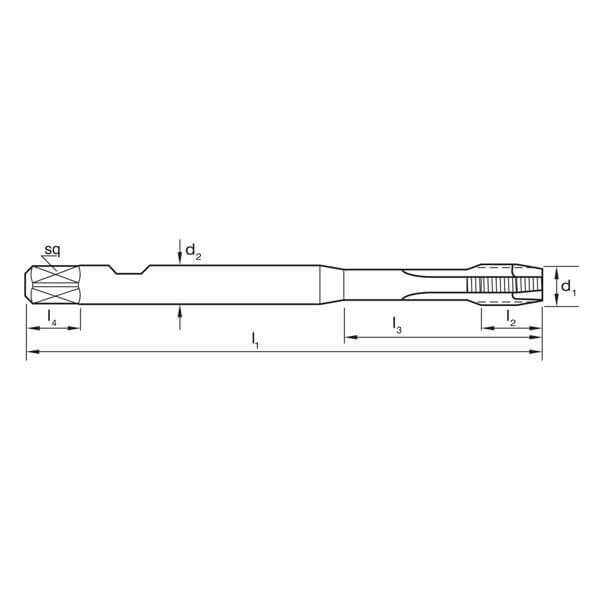

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T377 0200 | M2 x 0.4 | 0.4 | 1.6 | 70 | 4 | 13 | 6 | 4.9 | 8 | 3 |
| T377 0250 | M2.5 x 0.45 | 0.45 | 2.1 | 70 | 4.5 | 14 | 6 | 4.9 | 8 | 3 |
| T377 0300 | M3 x 0.5 | 0.5 | 2.5 | 70 | 5 | 18 | 6 | 4.9 | 8 | 3 |
| T377 0400 | M4 x 0.7 | 0.7 | 3.3 | 70 | 7 | 21 | 6 | 4.9 | 8 | 3 |
| T377 0500 | M5 x 0.8 | 0.8 | 4.2 | 70 | 8 | 25 | 6 | 4.9 | 8 | 3 |
| T377 0600 | M6 x 1 | 1 | 5 | 80 | 10 | 30 | 6 | 4.9 | 8 | 3 |
| T377 0800 | M8 x 1.25 | 1.25 | 6.8 | 90 | 13 | 35 | 8 | 6.2 | 9 | 3 |
| T377 1000 | M10 x 1.5 | 1.5 | 8.5 | 100 | 15 | 39 | 10 | 8 | 11 | 3 |
| T377 1200 | M12 x 1.75 | 1.75 | 10.3 | 110 | 18 | 42 | 12 | 9 | 12 | 3 |
| T377 1400 | M14 x 2 | 2 | 12 | 110 | 20 | 49 | 14 | 11 | 14 | 3 |
| T377 1600 | M16 x 2 | 2 | 14 | 110 | 20 | 55 | 16 | 12 | 15 | 4 |
| T377 1800 | M18 x 2.5 | 2.5 | 15.5 | 125 | 25 | - | 16 | 12 | 15 | 4 |
| T377 2000 | M20 x 2.5 | 2.5 | 17.5 | 140 | 25 | - | 16 | 12 | 15 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T377 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | PM-HSSE V3 |
| Finish | TiCN |
| Designation | HSC |
| Chamfer | Form B / 4.5 x P |
| Thread tolerance | 6HX |
| Flutes | 3 to 4 |
| Sizes in this listing | 13 sizes, M2 x 0.4 to M20 x 2.5 |
