Sutton T394 M2.5 x 0.45 Spiral Point Tap Intermediate - HSSE - Steam Oxide - ISO 529
Available

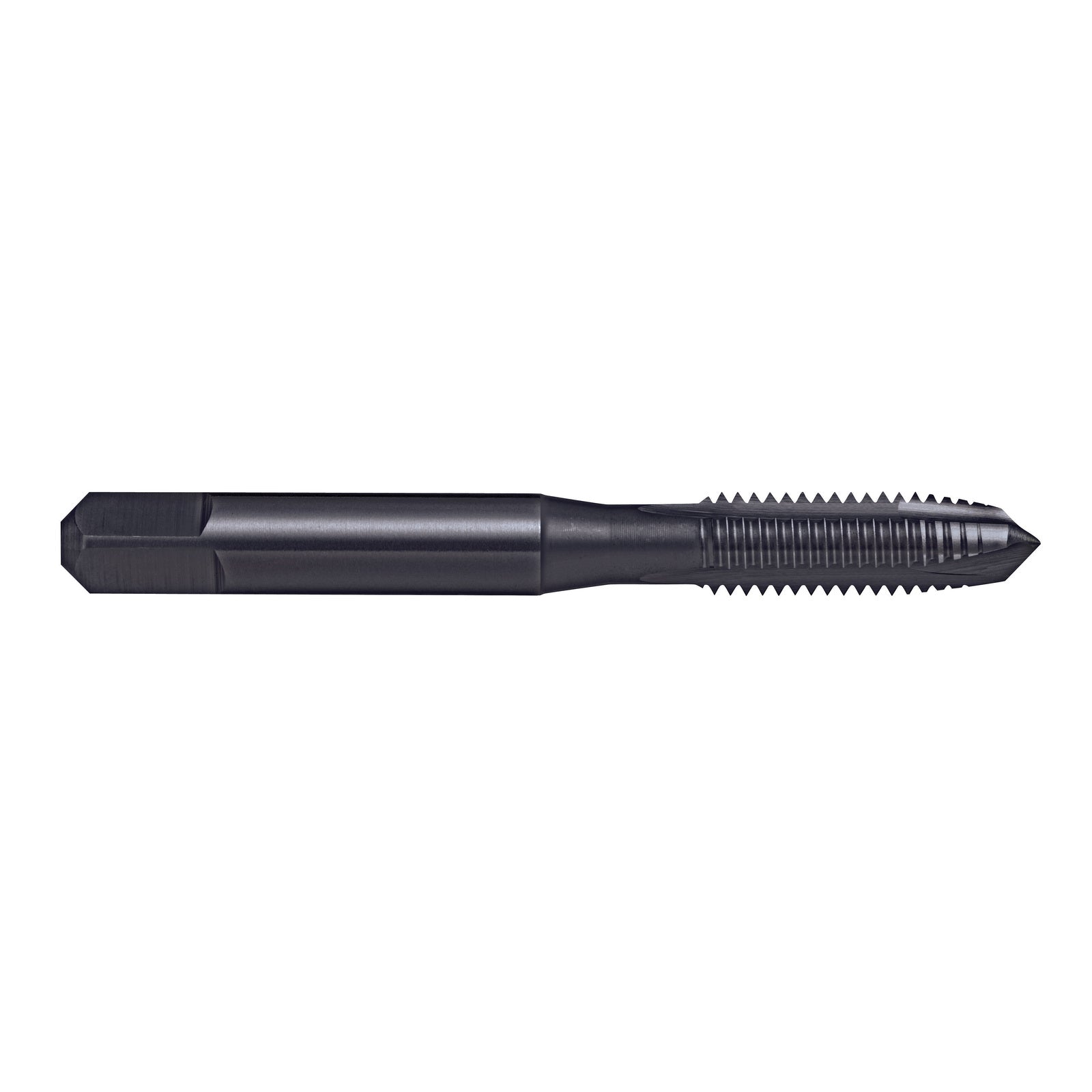

The Sutton T394 is a spiral point (gun) tap (intermediate chamfer) for metric coarse (M) threads, made from premium grade high speed steel (HSSE) with a blue steam-oxide finish. This listing covers 16 sizes from M2.5 x 0.45 to M30 x 3.5.
The gun (spiral point) nose curls the chip forward, ahead of the tap and out of the hole, so chip clogging is avoided and coolant can flow without problems. It suits through holes. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through holes.
- Depths up to approx. 3 x d1.
Design features
- Premium grade high speed steel (HSSE). The vanadium grade gives high wear resistance and toughness for most tapping applications.
- Blue steam-oxide finish for ferrous metals; it helps prevent chip build-up on the cutting edges and carries lubricant well.
- 3 to 4 flutes, depending on size.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance ISO 2 / 6H.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T394 0250 | M2.5 x 0.45 | 0.45 | 2.05 | 45 | 10 | - | 2.8 | 2.24 | 5 | 3 |
| T394 0300 | M3 x 0.5 | 0.5 | 2.5 | 48 | 11 | 15 | 3.15 | 2.5 | 5 | 3 |
| T394 0350 | M3.5 x 0.6 | 0.6 | 2.9 | 50 | 13 | 17.5 | 3.55 | 2.8 | 5 | 3 |
| T394 0400 | M4 x 0.7 | 0.7 | 3.3 | 53 | 13 | 18 | 4 | 3.15 | 6 | 3 |
| T394 0500 | M5 x 0.8 | 0.8 | 4.2 | 58 | 16 | 22 | 5 | 4 | 7 | 3 |
| T394 0600 | M6 x 1 | 1 | 5 | 66 | 19 | 26 | 6.3 | 5 | 8 | 3 |
| T394 0800 | M8 x 1.25 | 1.25 | 6.8 | 72 | 22 | 30 | 8 | 6.3 | 9 | 3 |
| T394 1000 | M10 x 1.5 | 1.5 | 8.5 | 80 | 24 | 34 | 10 | 8 | 11 | 3 |
| T394 1200 | M12 x 1.75 | 1.75 | 10.2 | 89 | 29 | - | 9 | 7.1 | 10 | 3 |
| T394 1400 | M14 x 2 | 2 | 12 | 95 | 30 | - | 11.2 | 9 | 12 | 3 |
| T394 1600 | M16 x 2 | 2 | 14 | 102 | 32 | - | 12.5 | 10 | 13 | 3 |
| T394 1800 | M18 x 2.5 | 2.5 | 15.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T394 2000 | M20 x 2.5 | 2.5 | 17.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T394 2200 | M22 x 2.5 | 2.5 | 19.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T394 2400 | M24 x 3 | 3 | 21 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T394 3000 | M30 x 3.5 | 3.5 | 26.5 | 138 | 48 | - | 20 | 16 | 20 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T394 |
| Type | Spiral point (gun) tap |
| Thread series | Metric coarse (M) |
| Material | HSSE |
| Finish | Steam Oxide |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 3 to 4 |
| Sizes in this listing | 16 sizes, M2.5 x 0.45 to M30 x 3.5 |
