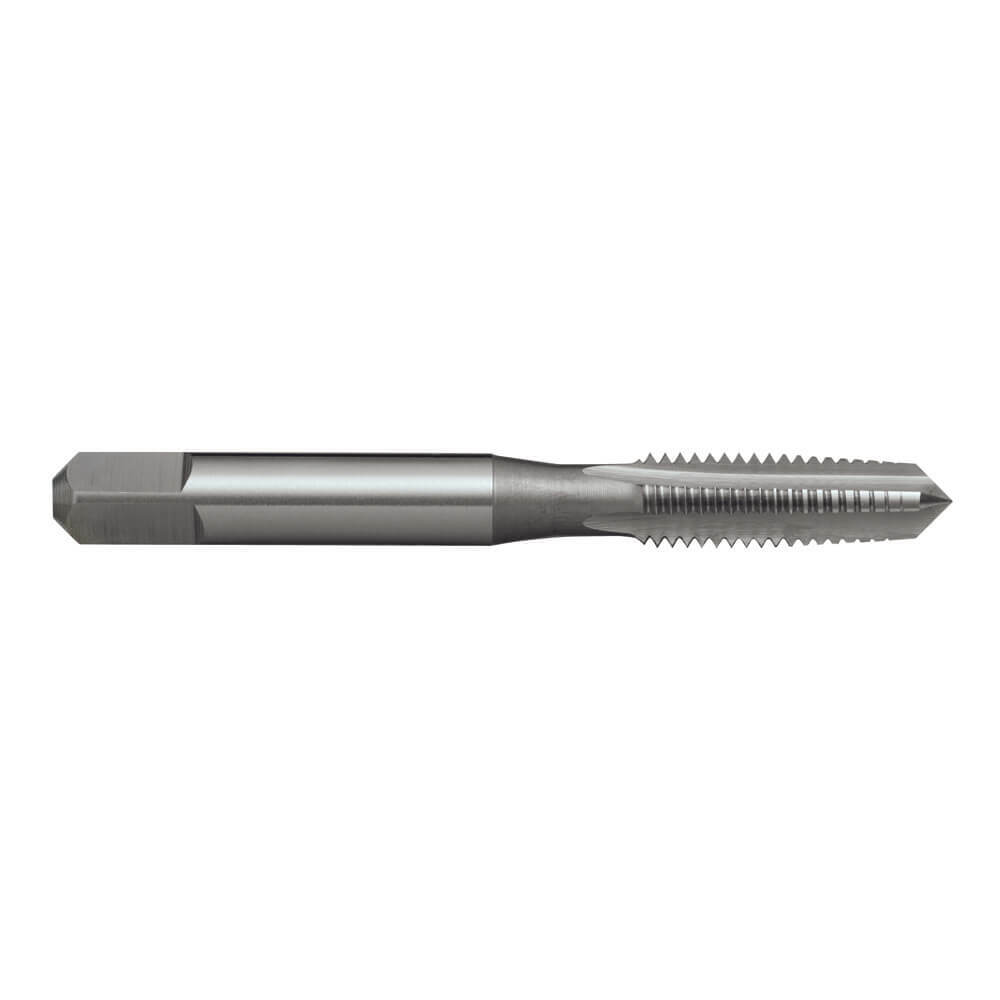

Sutton T401 M8 x 1 Straight Flute Tap Taper - HSS - Bright - ISO 529
Available
The Sutton T401 is a straight flute tap (taper chamfer) for metric fine (MF) threads, made from high speed steel (HSS) with a bright finish. This listing covers 18 sizes from M8 x 1 to M40 x 1.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a taper chamfer (Form A, 6 to 8 threads on the lead), for short through holes.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 flutes.
- Taper chamfer (Form A), for short through holes.
- Thread tolerance ISO 2 / 6H.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T401 0805 | M8 x 1 | 1 | 7 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T401 1005 | M10 x 1 | 1 | 9 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T401 1006 | M10 x 1.25 | 1.25 | 8.8 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T401 1205 | M12 x 1 | 1 | 11 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T401 1206 | M12 x 1.25 | 1.25 | 10.8 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T401 1207 | M12 x 1.5 | 1.5 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T401 1406 | M14 x 1.25 | 1.25 | 12.8 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T401 1407 | M14 x 1.5 | 1.5 | 12.5 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T401 1607 | M16 x 1.5 | 1.5 | 14.5 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T401 1807 | M18 x 1.5 | 1.5 | 16.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T401 2007 | M20 x 1.5 | 1.5 | 18.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T401 2207 | M22 x 1.5 | 1.5 | 20.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T401 2408 | M24 x 2 | 2 | 22 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T401 2507 | M25 x 1.5 | 1.5 | 23.5 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T401 3007 | M30 x 1.5 | 1.5 | 28.5 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T401 3008 | M30 x 2 | 2 | 28 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T401 3207 | M32 x 1.5 | 1.5 | 30.5 | 151 | 51 | - | 22.4 | 18 | 22 | 4 |
| T401 4007 | M40 x 1.5 | 1.5 | 38.5 | 170 | 60 | - | 28 | 22.4 | 26 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T401 |
| Type | Straight flute tap |
| Thread series | Metric fine (MF) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Taper (Form A) |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 4 |
| Sizes in this listing | 18 sizes, M8 x 1 to M40 x 1.5 |
