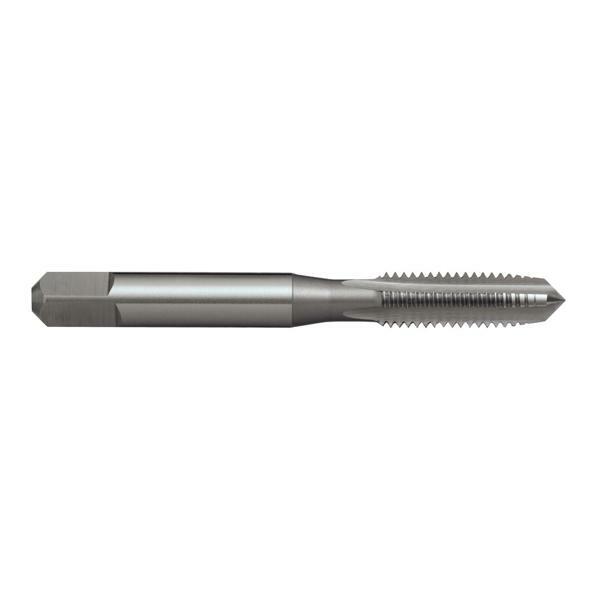

Sutton T402 M8 x 1 Straight Flute Tap Intermediate - HSS - Bright - ISO 529
Available
The Sutton T402 is a straight flute tap (intermediate chamfer) for metric fine (MF) threads, made from high speed steel (HSS) with a bright finish. This listing covers 18 sizes from M8 x 1 to M40 x 1.5.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The thread tolerance is ISO 2 / 6H. The tap is built to ISO 529: short machine tap construction.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 flutes.
- Intermediate chamfer (Form D), generally for through holes.
- Thread tolerance ISO 2 / 6H.
- ISO 529 construction, short machine tap construction.
Sizes
Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | Pitch (mm) | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | l3 (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|---|
| T402 0805 | M8 x 1 | 1 | 7 | 72 | 22 | 30 | 8 | 6.3 | 9 | 4 |
| T402 1005 | M10 x 1 | 1 | 9 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T402 1006 | M10 x 1.25 | 1.25 | 8.8 | 80 | 24 | 34 | 10 | 8 | 11 | 4 |
| T402 1205 | M12 x 1 | 1 | 11 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T402 1206 | M12 x 1.25 | 1.25 | 10.8 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T402 1207 | M12 x 1.5 | 1.5 | 10.5 | 89 | 29 | - | 9 | 7.1 | 10 | 4 |
| T402 1406 | M14 x 1.25 | 1.25 | 12.8 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T402 1407 | M14 x 1.5 | 1.5 | 12.5 | 95 | 30 | - | 11.2 | 9 | 12 | 4 |
| T402 1607 | M16 x 1.5 | 1.5 | 14.5 | 102 | 32 | - | 12.5 | 10 | 13 | 4 |
| T402 1807 | M18 x 1.5 | 1.5 | 16.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T402 2007 | M20 x 1.5 | 1.5 | 18.5 | 112 | 37 | - | 14 | 11.2 | 14 | 4 |
| T402 2207 | M22 x 1.5 | 1.5 | 20.5 | 118 | 38 | - | 16 | 12.5 | 16 | 4 |
| T402 2408 | M24 x 2 | 2 | 22 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T402 2507 | M25 x 1.5 | 1.5 | 23.5 | 130 | 45 | - | 18 | 14 | 18 | 4 |
| T402 3007 | M30 x 1.5 | 1.5 | 28.5 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T402 3008 | M30 x 2 | 2 | 28 | 138 | 48 | - | 20 | 16 | 20 | 4 |
| T402 3207 | M32 x 1.5 | 1.5 | 30.5 | 151 | 51 | - | 22.4 | 18 | 22 | 4 |
| T402 4007 | M40 x 1.5 | 1.5 | 38.5 | 170 | 60 | - | 28 | 22.4 | 26 | 4 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T402 |
| Type | Straight flute tap |
| Thread series | Metric fine (MF) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Intermediate (Form D) |
| Thread tolerance | ISO 2 / 6H |
| Standard | ISO 529 |
| Flutes | 4 |
| Sizes in this listing | 18 sizes, M8 x 1 to M40 x 1.5 |
Related products
Related Sutton taps: T401 Metric Fine Straight Flute Tap Taper - HSS - Bright - ISO 529, T403 Metric Fine Straight Flute Tap Bottoming - HSS - Bright - ISO 529, T345 Metric Fine Straight Flute Tap VH - Carbide VHM - TiCN - DIN 371, T301 Metric Fine Straight Flute Tap GG - HSSE - TiCN - DIN 374, T300 Metric Fine Straight Flute Tap GG - HSSE - Plasma Nitride + Steam Oxide - DIN 374.
