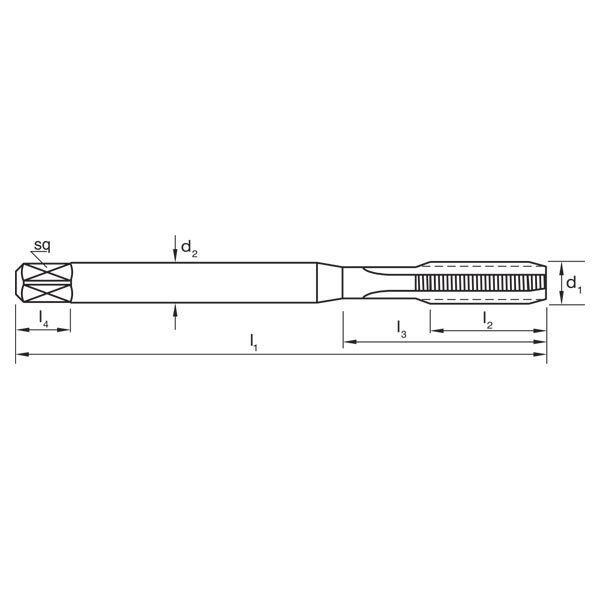

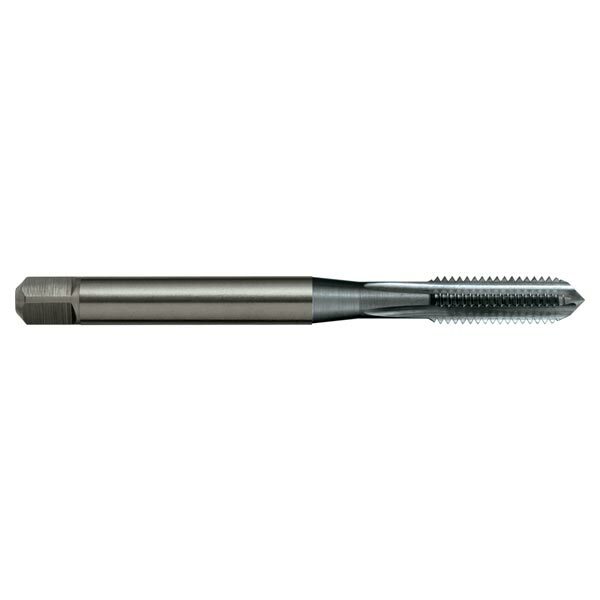

Sutton T345 Metric Fine Straight Flute Tap - Carbide TiCN

Features

• Use in hardened steels 50-60 HRc
• Through & blind holes
• Suitable for machine operations
• Depths up to approx. 1.5 x d1

Specifications

• Designation: VH (for very hard materials)
• Material: Sub-Micron Grade Solid Carbide (VHM-ISO K15-K30)
• Finish: Titanium Carbonitride (TiCN)
• Max Cut Depth: 1.5xD
• Shank Form: Reinforced Shank (with square drive)
• X: als
• Type: Straight Flute
• Standard: DIN371 / DIN376
• Thread Form: ISO Metric Fine (MF)
• Nut Tolerance: 6HX
• Lead: Form C / 3 x P

Applications

• Cast Iron, Grey (GG) - Ferritic / Pearlitic
• Hardened steel: Hardened & Tempered
• Cast Iron: Hardened & Tempered
