Sutton T479 1 x 11 TPI Straight Flute Tap Pipe Taper - HSS - Bright - ISO 2284
Available

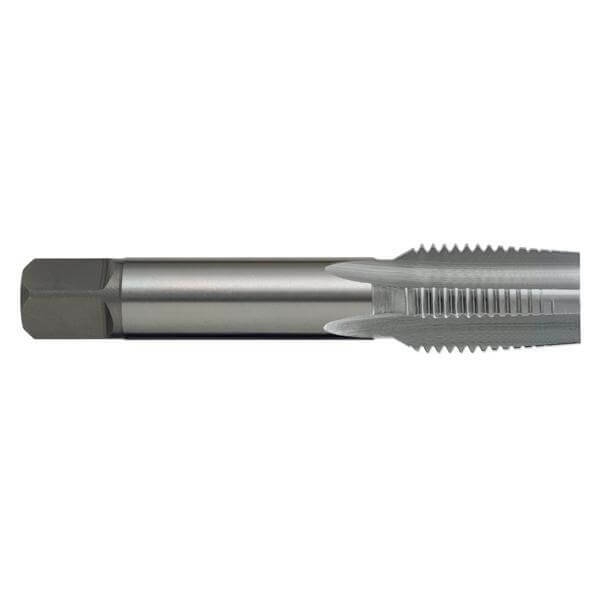

The Sutton T479 is a straight flute tap (taper chamfer) for BSPF (G) threads, made from high speed steel (HSS) with a bright finish. This listing covers 12 sizes from 1/8 x 28 TPI to 2 x 11 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a taper chamfer (Form A, 6 to 8 threads on the lead), for short through holes.
The tap is built to ISO 2284.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 to 6 flutes, depending on size.
- Taper chamfer (Form A), for short through holes.
- ISO 2284 construction.
Sizes

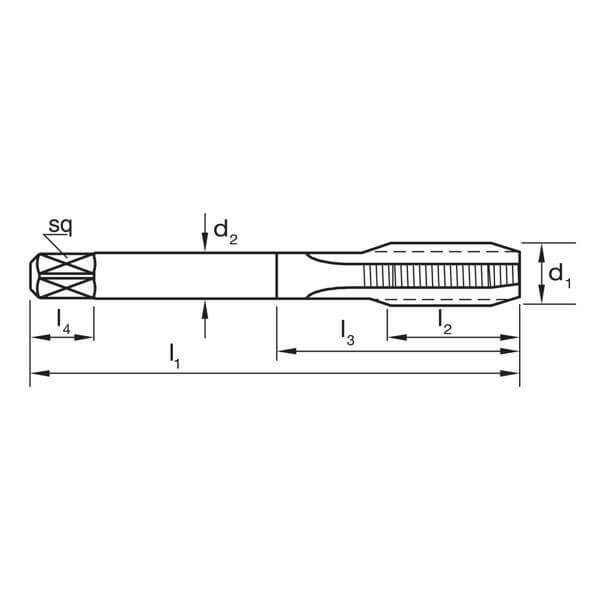

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T479 0973 | 1/8 x 28 TPI | 28 | 8.8 | 59 | 15 | 8 | 6.3 | 9 | 4 |
| T479 1316 | 1/4 x 19 TPI | 19 | 11.8 | 67 | 19 | 10 | 8 | 11 | 4 |
| T479 1666 | 3/8 x 19 TPI | 19 | 15.3 | 75 | 21 | 12.5 | 10 | 13 | 4 |
| T479 2096 | 1/2 x 14 TPI | 14 | 19 | 87 | 26 | 16 | 12.5 | 16 | 4 |
| T479 2291 | 5/8 x 14 TPI | 14 | 21 | 91 | 26 | 18 | 14 | 18 | 4 |
| T479 2644 | 3/4 x 14 TPI | 14 | 24.5 | 96 | 28 | 20 | 16 | 20 | 4 |
| T479 3020 | 7/8 x 14 TPI | 14 | 28.5 | 102 | 29 | 22.4 | 18 | 22 | 4 |
| T479 3325 | 1 x 11 TPI | 11 | 31 | 109 | 33 | 25 | 20 | 24 | 4 |
| T479 4191 | 1-1/4 x 11 TPI | 11 | 39.5 | 119 | 36 | 31.5 | 25 | 28 | 4 |
| T479 4780 | 1-1/2 x 11 TPI | 11 | 45.5 | 125 | 37 | 35.5 | 28 | 31 | 4 |
| T479 5375 | 1-3/4 x 11 TPI | 11 | 51.5 | 132 | 39 | 35.5 | 28 | 31 | 6 |
| T479 5961 | 2 x 11 TPI | 11 | 57.5 | 140 | 41 | 40 | 31.5 | 34 | 6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T479 |
| Type | Straight flute tap |
| Thread series | BSPF (G) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Taper (Form A) |
| Standard | ISO 2284 |
| Flutes | 4 to 6 |
| Sizes in this listing | 12 sizes, 1/8 x 28 TPI to 2 x 11 TPI |
Related products
Related Sutton taps: T480 BSPF (G) Straight Flute Tap Pipe Intermediate - HSS - Bright - ISO 2284, T481 BSPF (G) Straight Flute Tap Pipe Bottoming - HSS - Bright - ISO 2284, T482 BSPF (G) Straight Flute Tap Pipe Intermediate - HSS - TiN - ISO 2284, T483 BSPF (G) Straight Flute Tap Pipe Bottoming - HSS - TiN - ISO 2284, T307 BSPF (G) Straight Flute Tap GG - HSSE - TiCN - DIN 5156.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Sutton T479 BSPF (G) Straight Flute Tap Pipe Taper - HSS - Bright - ISO 2284: G1
SKU: A0015764 | Model: T4793325
This is the diameter G1 option of the Sutton T479 BSPF (G) Straight Flute Tap Pipe Taper - HSS - Bright - ISO 2284. Key details for this option: thread size 1 x 11 TPI, thread length 33mm, tapping drill size 31mm, square size 20mm, shank diameter 25mm.
Features
The Sutton T479 is a straight flute tap (taper chamfer) for BSPF (G) threads, made from high speed steel (HSS) with a bright finish. This listing covers 12 sizes from 1/8 x 28 TPI to 2 x 11 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a taper chamfer (Form A, 6 to 8 threads on the lead), for short through holes.
The tap is built to ISO 2284.
