Sutton T483 G-BSPF Straight Flute Tap - Bottoming - HSS Tinite1

Sutton T483 G-BSPF Straight Flute Tap - Bottoming - HSS Tinite2

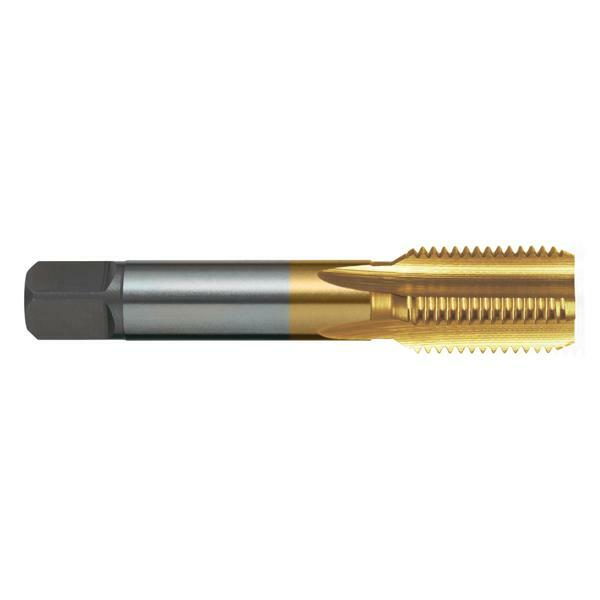

Sutton T4830973 G-BSPF G 1/8 x 28 Straight Flute Tap - Bottoming - HSS TiN

Sutton T4831316 G-BSPF G 1/4 x 19 Straight Flute Tap - Bottoming - HSS TiN

Sutton T4831666 G-BSPF G 3/8 x 19 Straight Flute Tap - Bottoming - HSS TiN

Sutton T4832096 G-BSPF G 1/2 x 14 Straight Flute Tap - Bottoming - HSS TiN

Sutton T4832291 G-BSPF G 5/8 x 14 Straight Flute Tap - Bottoming - HSS TiN

Sutton T4832644 G-BSPF G 3/4 x 14 Straight Flute Tap - Bottoming - HSS TiN

Description +

Dimensions

d1: G 1/8
d2 (mm): 8
l1 (mm): 59
l2 (mm): 15
l4 (mm): 9
sq: 6.3
z: 4
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Features

Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO2284
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: Z3
Lead: Bottoming

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Specifications +

Dimensions

d1: G 1/8
d2 (mm): 8
l1 (mm): 59
l2 (mm): 15
l4 (mm): 9
sq: 6.3
z: 4
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Specifications

Designation: N (for normal general purpose type materials)
Material: High Speed Steel (HSS)
Finish: Titanium Nitride (TiN)
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: ISO2284
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: Z3
Lead: Bottoming

Application +

Applications

Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
Steel - Low alloy & cast < 5% of alloying elements: Annealed
Steel - Low alloy & cast < 5% of alloying elements: Quenched & Tempered

Features & Benefits +

Features

Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T483 G-BSPF Straight Flute Tap - Bottoming - HSS Tinite

SKU: A0015800

$302.20

Inc. GST

Buy It Now

Available

The Sutton T483 G-BSPF Straight Flute Tap by Sutton Tools is a 0 in High Speed Steel. It provides 14 TPI and is suitable for Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed.
