Sutton T480 1 x 11 TPI Straight Flute Tap Pipe Intermediate - HSS - Bright - ISO 2284
Available

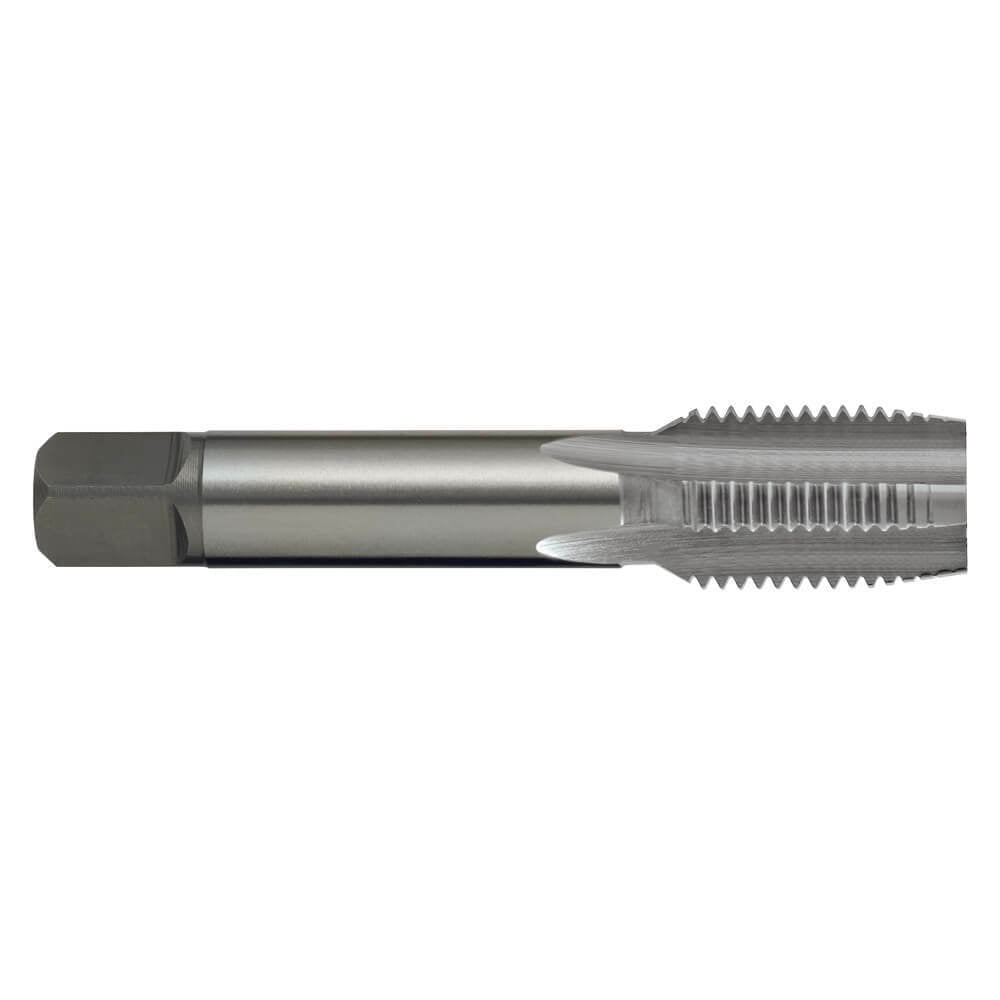

The Sutton T480 is a straight flute tap (intermediate chamfer) for BSPF (G) threads, made from high speed steel (HSS) with a bright finish. This listing covers 12 sizes from 1/8 x 28 TPI to 2 x 11 TPI.
Straight flutes suit through or blind holes, but they hold only a small amount of chips and do not transport them axially, so deep holes are best avoided except in short chipping materials. The tap has a intermediate chamfer (Form D, 3.5 to 5 threads on the lead), generally for through holes.
The tap is built to ISO 2284.
Where this product is used
- General purpose use.
- Suitable for materials up to 1000 N/mm2.
- Through & blind holes.
- Suitable for both hand and machine operations.
- Depths up to approx. 1 x d1.
Design features
- High speed steel (HSS). Standard tool material for most common applications.
- Bright finish for general purpose applications.
- 4 to 6 flutes, depending on size.
- Intermediate chamfer (Form D), generally for through holes.
- ISO 2284 construction.
Sizes

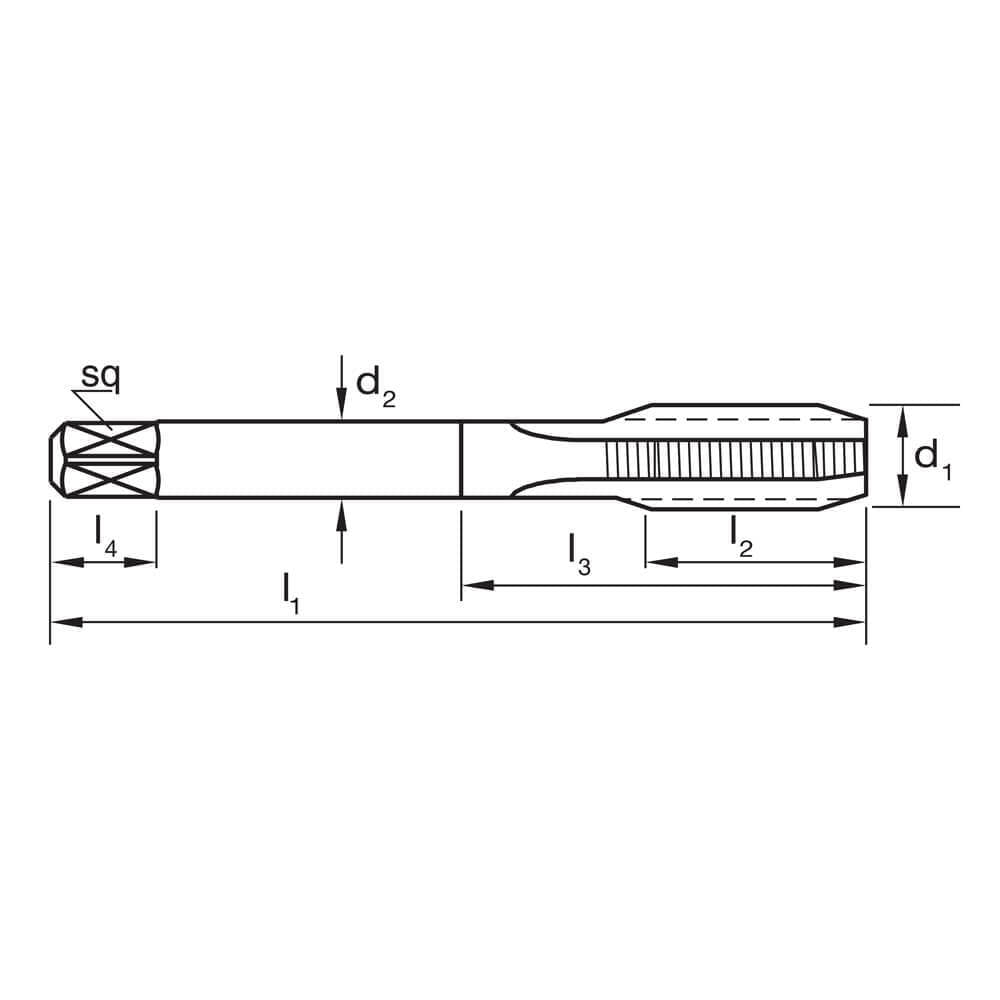

Dimensions are in millimetres. Item numbers are the Sutton catalogue numbers. If you are not sure which tapping drill to use, try our tap drill size selector.
| Item no. | Thread size | TPI | Tapping drill (mm) | l1 overall (mm) | l2 thread (mm) | d2 shank (mm) | sq square (mm) | l4 square length (mm) | Flutes |
|---|---|---|---|---|---|---|---|---|---|
| T480 0973 | 1/8 x 28 TPI | 28 | 8.8 | 59 | 15 | 8 | 6.3 | 9 | 4 |
| T480 1316 | 1/4 x 19 TPI | 19 | 11.8 | 67 | 19 | 10 | 8 | 11 | 4 |
| T480 1666 | 3/8 x 19 TPI | 19 | 15.3 | 75 | 21 | 12.5 | 10 | 13 | 4 |
| T480 2096 | 1/2 x 14 TPI | 14 | 19 | 87 | 26 | 16 | 12.5 | 16 | 4 |
| T480 2291 | 5/8 x 14 TPI | 14 | 21 | 91 | 26 | 18 | 14 | 18 | 4 |
| T480 2644 | 3/4 x 14 TPI | 14 | 24.5 | 96 | 28 | 20 | 16 | 20 | 4 |
| T480 3020 | 7/8 x 14 TPI | 14 | 28.5 | 102 | 29 | 22.4 | 18 | 22 | 4 |
| T480 3325 | 1 x 11 TPI | 11 | 31 | 109 | 33 | 25 | 20 | 24 | 4 |
| T480 4191 | 1-1/4 x 11 TPI | 11 | 39.5 | 119 | 36 | 31.5 | 25 | 28 | 4 |
| T480 4780 | 1-1/2 x 11 TPI | 11 | 45.5 | 125 | 37 | 35.5 | 28 | 31 | 4 |
| T480 5375 | 1-3/4 x 11 TPI | 11 | 51.5 | 132 | 39 | 35.5 | 28 | 31 | 6 |
| T480 5961 | 2 x 11 TPI | 11 | 57.5 | 140 | 41 | 40 | 31.5 | 34 | 6 |
Key specifications
| Specification | Detail |
|---|---|
| Catalogue code | T480 |
| Type | Straight flute tap |
| Thread series | BSPF (G) |
| Material | HSS |
| Finish | Bright |
| Chamfer | Intermediate (Form D) |
| Standard | ISO 2284 |
| Flutes | 4 to 6 |
| Sizes in this listing | 12 sizes, 1/8 x 28 TPI to 2 x 11 TPI |
Related products
Related Sutton taps: T479 BSPF (G) Straight Flute Tap Pipe Taper - HSS - Bright - ISO 2284, T481 BSPF (G) Straight Flute Tap Pipe Bottoming - HSS - Bright - ISO 2284, T482 BSPF (G) Straight Flute Tap Pipe Intermediate - HSS - TiN - ISO 2284, T483 BSPF (G) Straight Flute Tap Pipe Bottoming - HSS - TiN - ISO 2284, T307 BSPF (G) Straight Flute Tap GG - HSSE - TiCN - DIN 5156.
