Sutton T307 BSPF Straight Flute Tap - Premium HSS TiCN1

Sutton T307 BSPF Straight Flute Tap - Premium HSS TiCN2

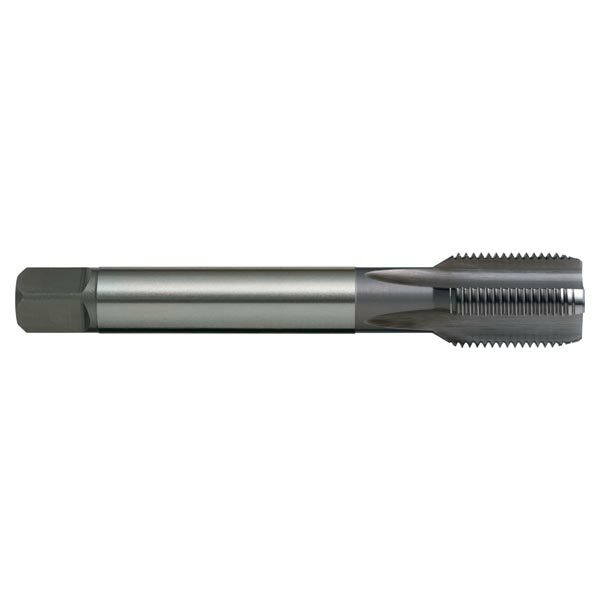

Sutton T3070973 BSPF G 1/8 x 28 Straight Flute Tap - HSSE V3 TiCN

Sutton T3071316 BSPF G 1/4 x 19 Straight Flute Tap - HSSE V3 TiCN

Sutton T3071666 BSPF G 3/8 x 19 Straight Flute Tap - HSSE V3 TiCN

Sutton T3072096 BSPF G 1/2 x 14 Straight Flute Tap - HSSE V3 TiCN

Sutton T3072291 BSPF G 5/8 x 14 Straight Flute Tap - HSSE V3 TiCN

Sutton T3072644 BSPF G 3/4 x 14 Straight Flute Tap - HSSE V3 TiCN

Sutton T3073020 BSPF G 7/8 x 14 Straight Flute Tap - HSSE V3 TiCN

Sutton T3073325 BSPF G 1 x 11 Straight Flute Tap - HSSE V3 TiCN

Description +

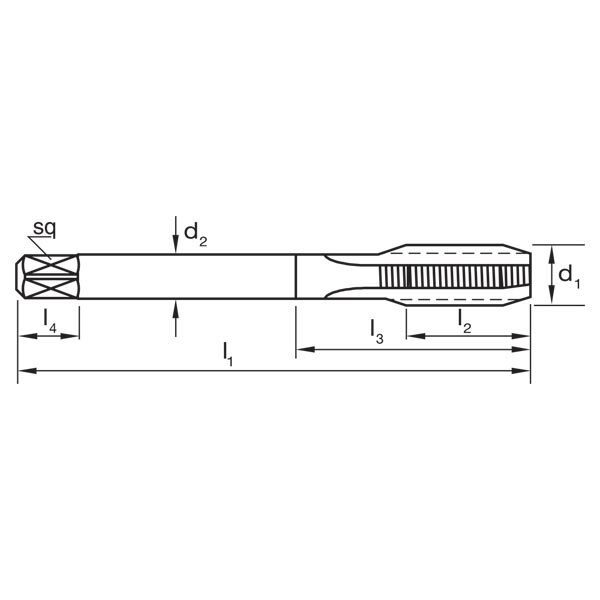

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 4
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Features

Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2
Through & blind holes
Suitable for machine operations
Depths up to approx. 1 x d1

Specifications

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Specifications +

Dimensions

d1: G 1/8
d2 (mm): 7
l1 (mm): 90
l2 (mm): 20
l4 (mm): 8
Square Size (mm): 5.5
z: 4
Drill Size (mm): 8.8 (drill)
TPI: 28 (TPI)

Specifications

Designation: GG (for cast iron)
Material: Premium Grade High Speed Steel (HSSE-V3)
Finish: Titanium Carbonitride (TiCN)
Max Cut Depth: 1xD
Shank Form: Reduced Shank (with square drive)
X: als
Type: Straight Flute
Standard: DIN5156
Thread Form: ISO G Parallel Series 55Â° (G-BSPF)
Nut Tolerance: ISO 228
Lead: Form C / 3 x P

Application +

Applications

Cast Iron, Grey (GG) - Ferritic / Pearlitic
Cast Iron, Grey (GG) – Pearlitic
Cast Iron, Nodular (GGG) – Ferritic
Cast Iron, Nodular (GGG) - Pearlitic

Features & Benefits +

Features

Use in grey cast iron (GG), brittle plastics, hard bronzes to a hardness of 850 N/mm2
Through & blind holes
Suitable for machine operations
Depths up to approx. 1 x d1

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Sutton T307 BSPF Straight Flute Tap - Premium HSS TiCN

SKU: A0014397

$368.48

Inc. GST

Buy It Now

Available

The Sutton T307 BSPF Straight Flute Tap by Sutton Tools is a 0 with TiCN finish suitable for machine operations. It provides a Drill Size of 19 mm and is suitable for Cast Iron Grey (GG) Ferritic for through and blind holes.
