EasyRoll i4 series swivel threaded stem castor

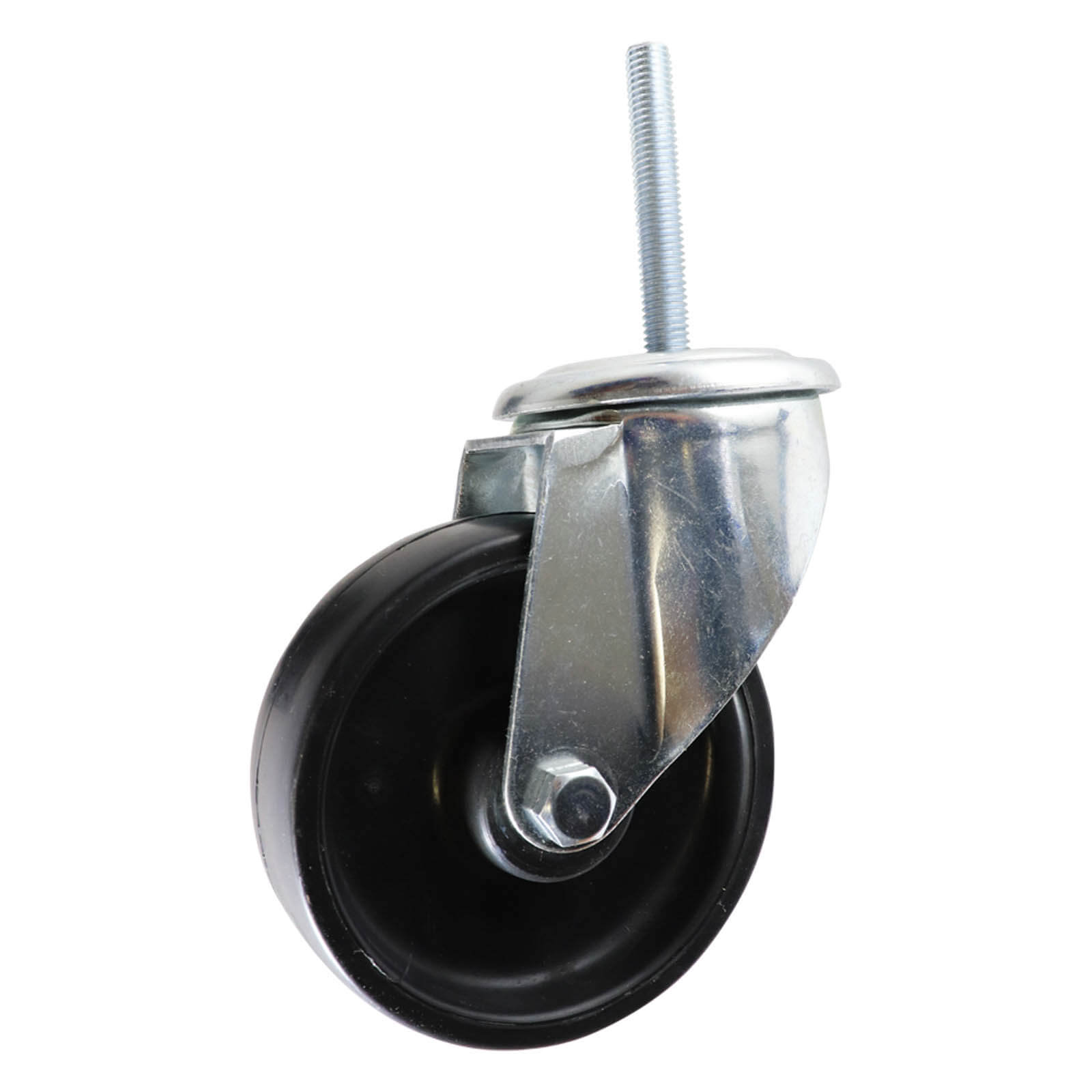

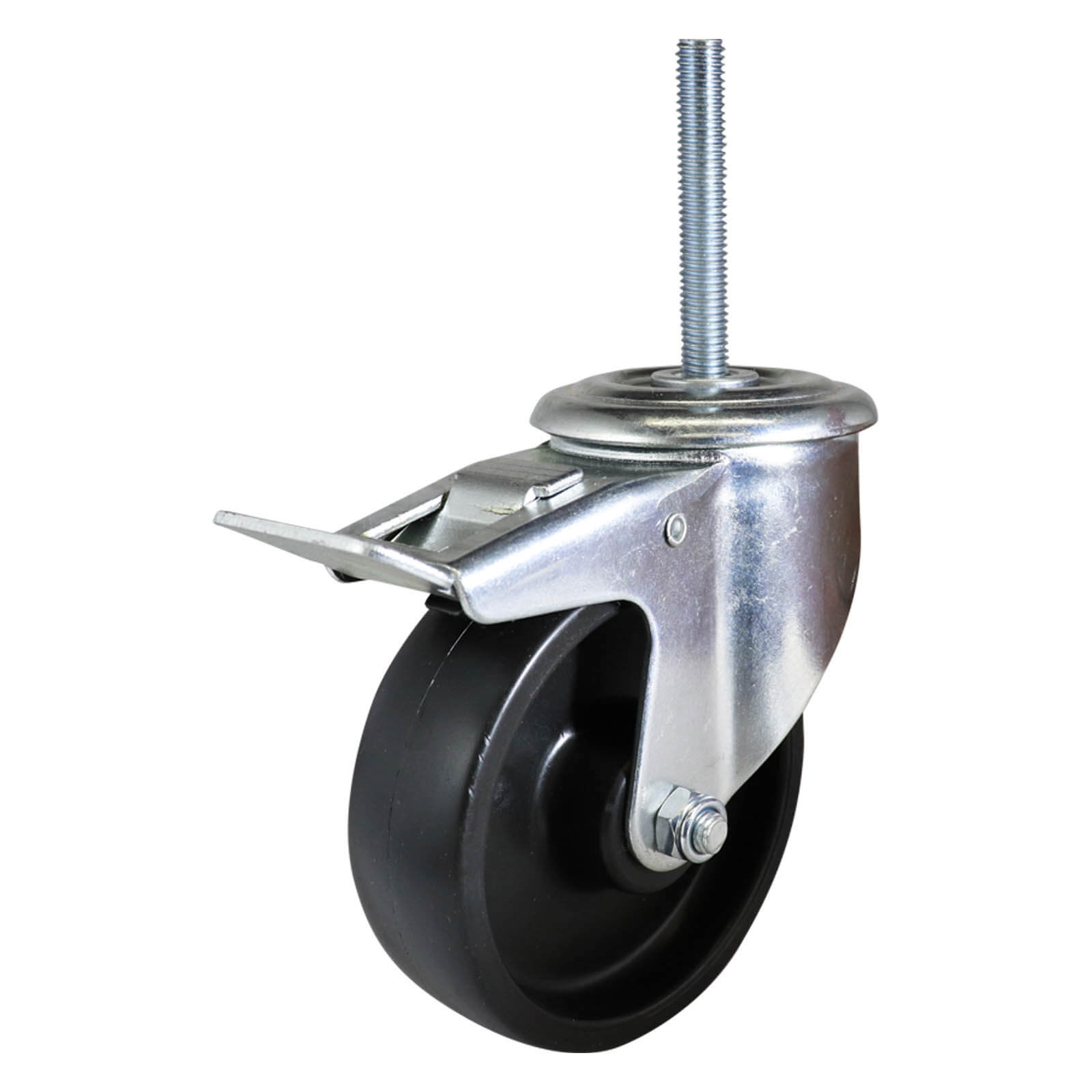

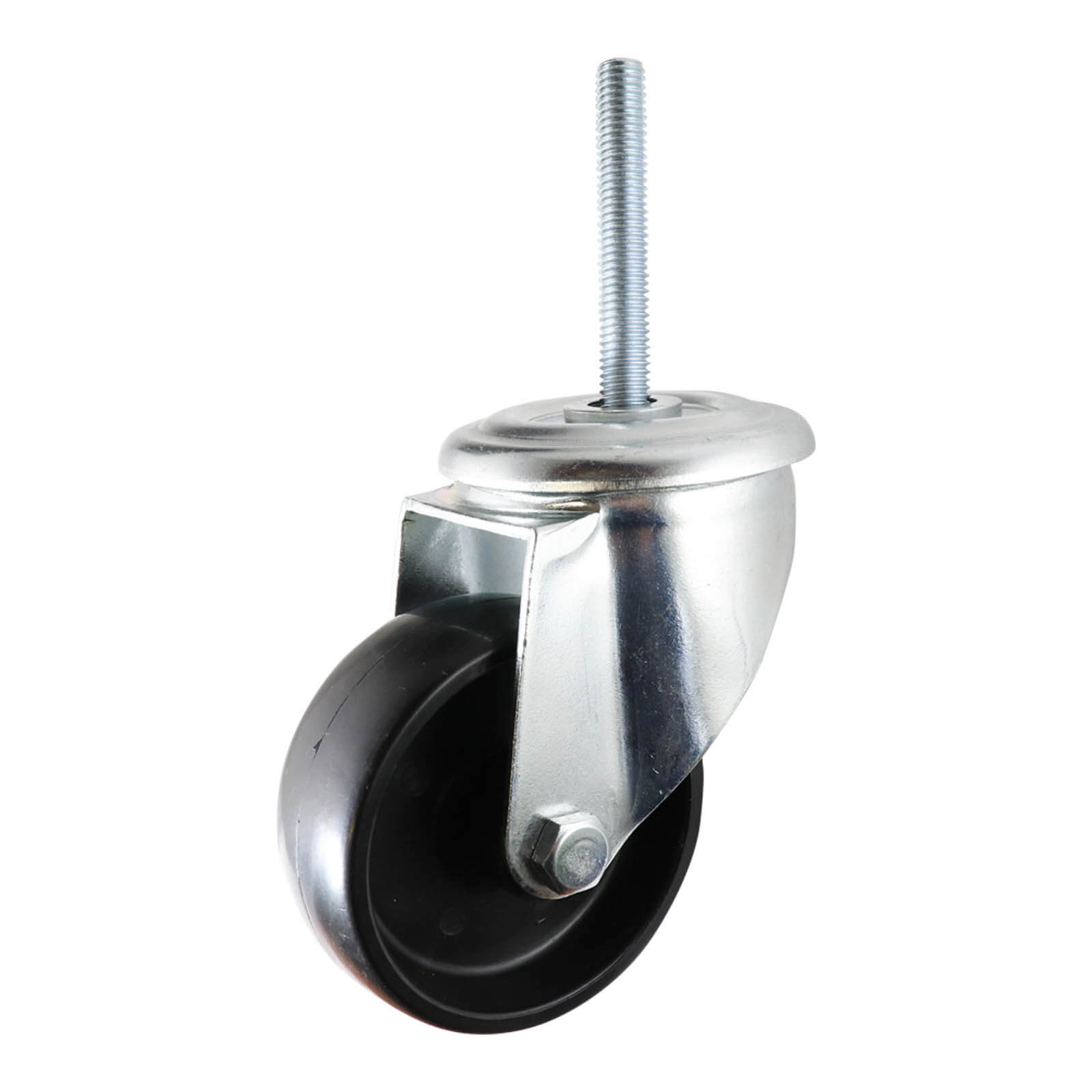

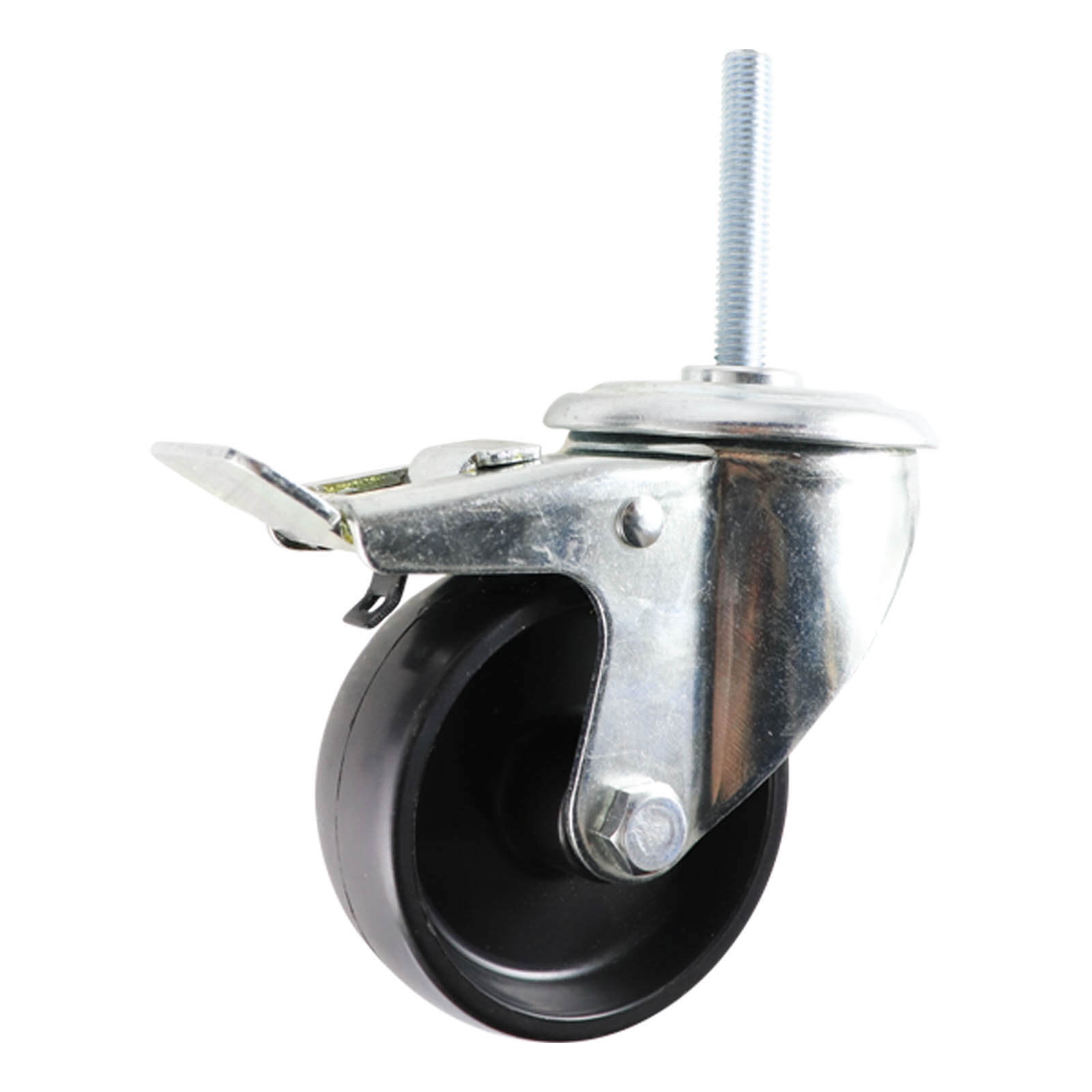

The EasyRoll I4 series swivel threaded stem castor with or without brake is fitted with a black polypropylene wheel and is available in 80 and 100mm wheel diameters. Load capacity is 80kg to 100kg per castor depending on the wheel size. It has a threaded stem fitted at the top.

The I4 series is suited to general trolleys, dollies and stillages and heavy capacity shopfittings. It has double headset bearings and a bright zinc finish.

Where this product is used

• General trolleys
• Dollies and stillages
• Heavy capacity shopfittings
• Medical equipment
• Catering equipment
• Roll pallets

Features

• Black polypropylene wheel in 80 and 100mm
• Load capacity 80kg to 100kg per castor
• Total lock brake stops both swivel and wheel rotation
• General purpose industrial castor that is simple, reliable and economical
• Double headset bearings for added strength
• Robust metal brake assembly
• Bright zinc finish

Key specifications

Choosing the right option

Check the bolt size and the mounting hole or tube in your equipment before you order. A total lock brake stops both the swivel action and the wheel rotation, which is the safest of all brake types. Load capacity is shown per castor, on an average floor at speeds up to 4 km/h. The capacity of a trolley is not the sum of its castors: for a four wheel trolley it is best that each castor is rated for at least 35 percent of the total load, which is the weight of the trolley plus what it carries.
