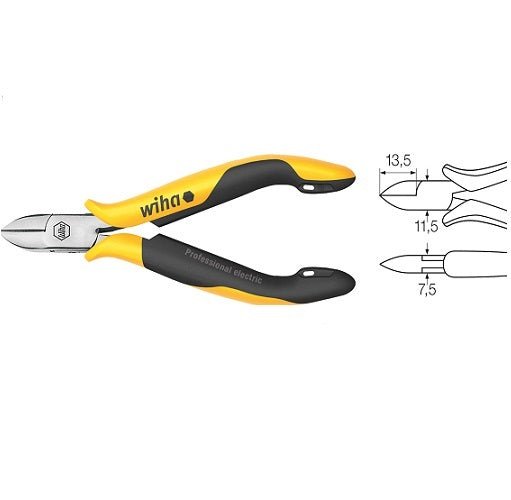

Wiha 115mm Professional ESD Diagonal Cutter
Out of stock
Wiha 26831(Z44104) is a Professional ESD diagonal cutter with a wide, semi-circular head and bevelled edges, 115mm long, to DIN ISO 9654 and IEC 61340-5-1.
It cuts wires of different hardnesses: 1.4mm soft wire, 1.0mm medium-hard wire and 0.4mm hard wire.
Where this product is used
- Safe work at sensitive electronic components
- Cutting wires of different hardnesses with an all-round electronic diagonal cutter
Features
- ESD tool, surface resistance 10⁶ to 10⁹ ohms
- Wide, semi-circular head with bevelled cutting edges, also for thin, hard wires
- Cutting edges induction hardened to approx. 64 HRC
- With opening spring
- High alloy carbon steel C 60
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | Z44104 |
| Overall length | 115mm |
| Standards | DIN ISO 9654, IEC 61340-5-1 |
| Cutting capacity, soft wire | 1.4mm |
| Cutting capacity, medium-hard wire | 1.0mm |
| Cutting capacity, hard wire | 0.4mm |
| Surface resistance | 10⁶ to 10⁹ ohms |
| Material | High alloy carbon steel C 60 |
Choosing the right option
Choose this wide-head cutter when you need to cut wires of different hardnesses at electronic components. The Wiha 115mm Professional ESD Narrow Diagonal Cutter has a narrow head for virtually flush cutting of soft copper wire in flat places.
See also: Wiha 115mm Professional ESD Narrow Diagonal Cutter, Wiha 118mm Micro Oblique Plier Cutting Nipper, Wiha 145mm Precision ESD Chip Lifter.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha 115mm Professional ESD Diagonal Cutter
SKU: A0109247 | Model: 26831(Z44104)
Wiha 26831(Z44104) is an ESD diagonal cutter. Overall length: 115mm. Cutting capacity, soft wire: 1.4mm.
