Wiha 115mm Professional ESD Narrow Diagonal Cutter
Out of stock

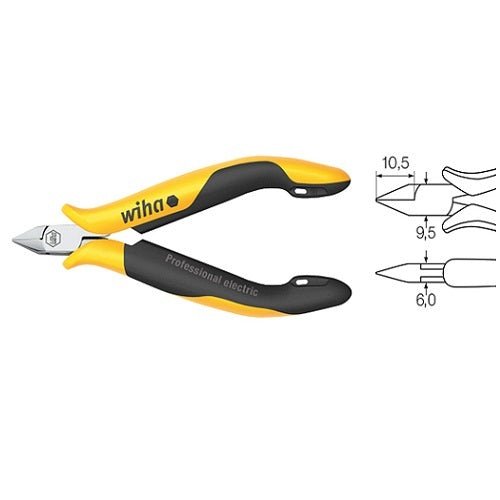

Wiha 26814(Z40404) is a Professional ESD diagonal cutter with a narrow, pointed head, 115mm long, to DIN ISO 9654.
It is for virtually flush cutting of copper wire in flat places that are difficult to access, with a soft wire cutting capacity of 1.0mm. Wiha also gives a surface resistance of 10⁶ to 10⁹ ohms and IEC 61340-5-1 for this cutter.
Where this product is used
- Virtually flush cutting of copper wire in flat places which are difficult to access
- Safe work at sensitive electronic components
Features
- Narrow, pointed head
- ESD tool, surface resistance 10⁶ to 10⁹ ohms
- Cutting edges induction hardened to approx. 64 HRC
- With opening spring
- High alloy carbon steel C 60
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | Z40404 |
| Overall length | 115mm |
| Standards | DIN ISO 9654, IEC 61340-5-1 |
| Cutting capacity, soft wire | 1.0mm |
| Surface resistance | 10⁶ to 10⁹ ohms |
| Material | High alloy carbon steel C 60 |
Choosing the right option
Choose this narrow-head cutter for virtually flush cutting of soft copper wire in tight, flat places (1.0mm). For the wide head that also cuts harder wire see the Wiha 115mm Professional ESD Diagonal Cutter.
See also: Wiha 115mm Professional ESD Diagonal Cutter, Wiha 118mm Micro Oblique Plier Cutting Nipper, Wiha 145mm Precision ESD Chip Lifter.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha 115mm Professional ESD Narrow Diagonal Cutter
SKU: A0109245 | Model: 26814(Z40404)
Wiha 26814(Z40404) is an ESD narrow diagonal cutter. Overall length: 115mm. Head: Narrow, pointed.
