Wiha torx Plus bits 6IP to 40IP, 7IP
Available

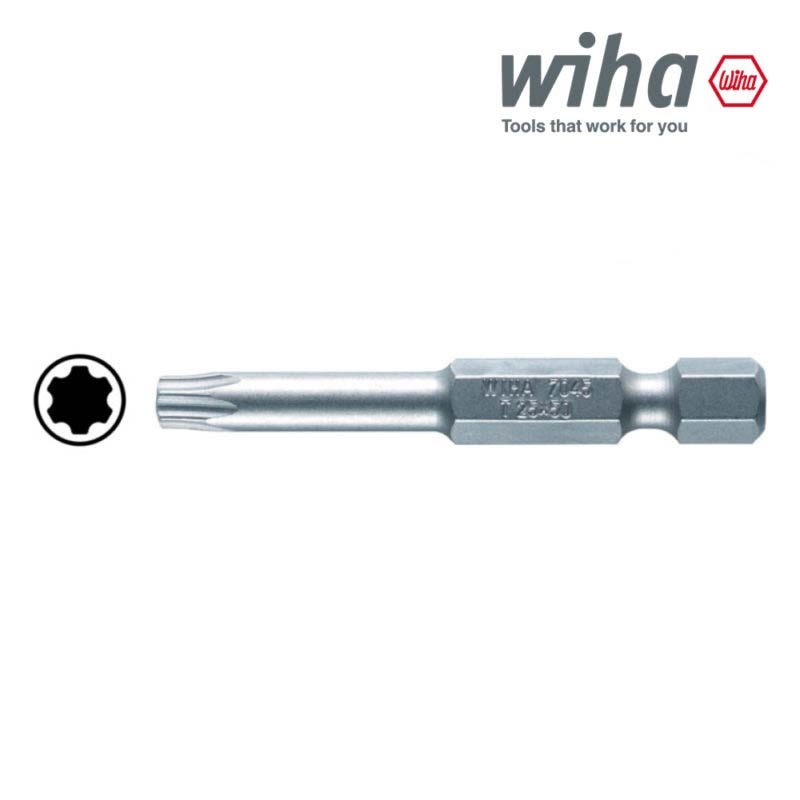

Wiha 7046Z Torx Plus insert bits with a 1/4" hex drive (style E 6.3), 50mm long, in eleven sizes from 6IP to 40IP.
This 50mm bit as a Professional bit. It is chrome-vanadium steel, through hardened, with the drive made to DIN 3126 and ISO 1173.
Where this product is used
- All types of screw applications in trade and industry
Features
- Drive to DIN 3126, ISO 1173, style E 6.3 (1/4" hex)
- Chrome-vanadium steel, through hardened
- 50mm overall length for every size
- Drive: 1/4" hex, DIN 3126, ISO 1173, style E 6.3
Key specifications
| Specification | Detail |
|---|---|
| Brand | Wiha |
| Series | 7046Z |
| Drive | 1/4" hex, DIN 3126, ISO 1173, style E 6.3 |
| Overall length | 50mm |
| Material | Chrome-vanadium steel, through hardened |
Choosing the right option
Choose the Torx Plus (IP) size that matches the screw head, 6IP to 40IP here. All sizes are 50mm long, so the IP size is the only choice. For Torx screws see the Wiha Torx Power Insert Bit 1/4" Hex (7045Z), and for Torx Plus keys the Wiha Torx Plus L-Key with Key Handle, 7 Pieces.
See also: Wiha Torx Power Insert Bit 1/4" Hex (7045Z), Torx Drive Insert Bit 1/4" Hex, Wiha Torx Plus L-Key with Key Handle, 7 Pieces.
| Option | Part number | SKU |
|---|---|---|
| 6IP | 26000(7046Z) | A0144513 |
| 7IP | 26002(7046Z) | A0144514 |
| 8IP | 23195(7046Z) | A0144515 |
| 9IP | 23197(7046Z) | A0144516 |
| 10IP | 23199(7046Z) | A0144517 |
| 15IP | 23201(7046Z) | A0144518 |
| 20IP | 23203(7046Z) | A0144519 |
| 25IP | 23205(7046Z) | A0144520 |
| 27IP | 23207(7046Z) | A0144521 |
| 30IP | 23209(7046Z) | A0144522 |
| 40IP | 23211(7046Z) | A0144523 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Wiha Torx Plus Power Insert Bit 1/4" Hex: 7IP
SKU: A0144514 | Model: 26002(7046Z)
Wiha 26002(7046Z): 7IP Torx Plus bit, 50mm long, drive 1/4" hex, DIN 3126, ISO 1173, style E 6.3.
