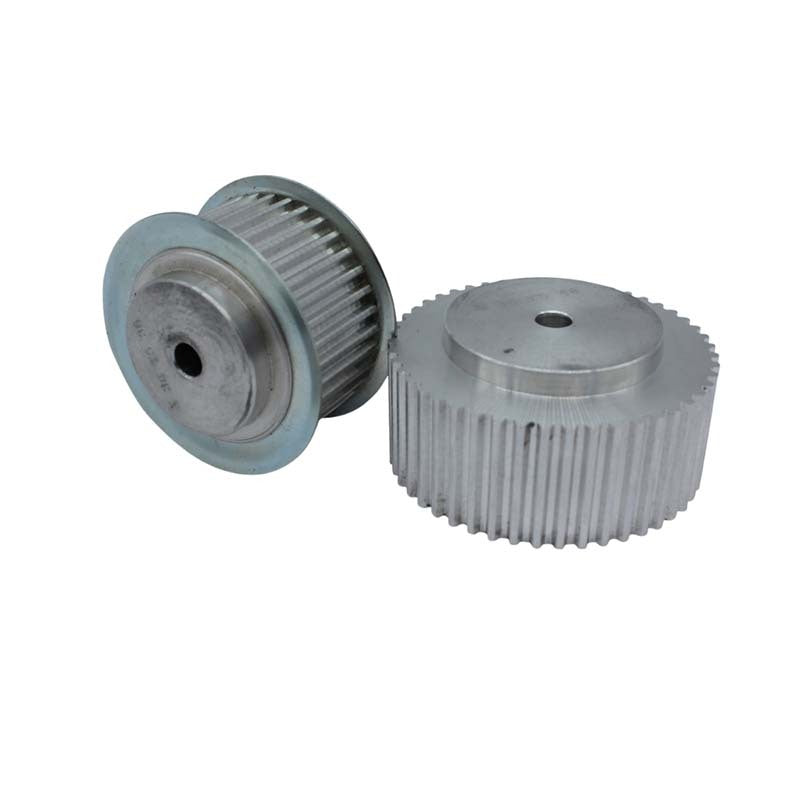

10-XL-037PB XL037 Pilot Bore Timing Pulley, 10 Teeth

XL037 pilot bore timing pulleys in aluminium for XL section imperial timing belts. XL belts have a pitch of 1/5 in (5.08 mm), and the 037 in the XL037 code is the belt width, 3/8 in. The range covers 29 models from 10 to 72 teeth.

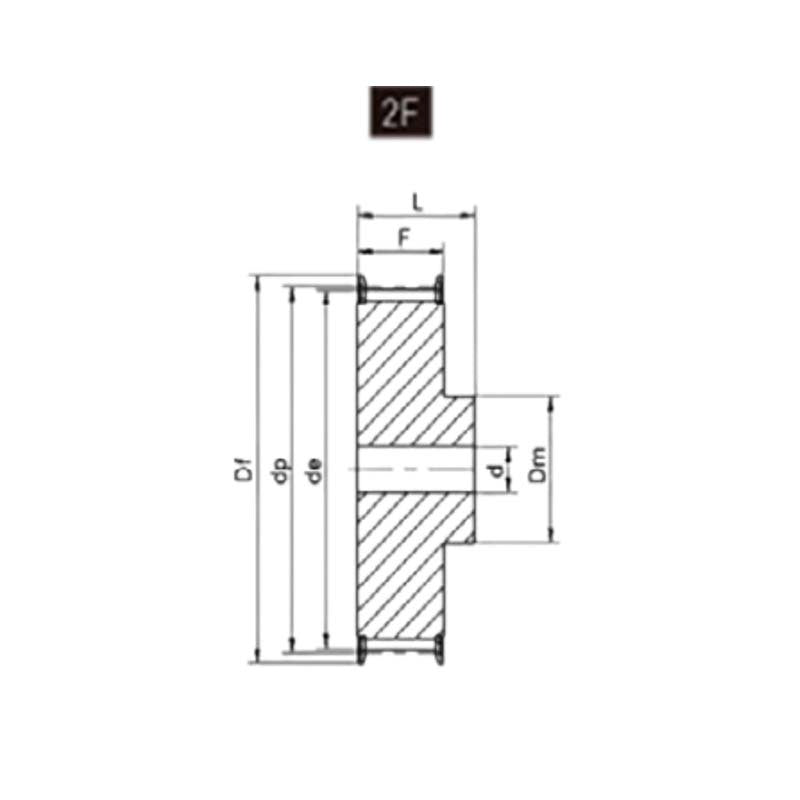

A pilot bore pulley is supplied with a starter hole, so you can have it bored and keywayed to suit your shaft. Pitch diameter, outside diameter, hub diameter, overall length and face width are listed for each model, along with the pilot bore diameter where the catalogue gives one.

Flanges are fitted as follows: two flanges for 10 to 34 teeth and no flanges for 36 to 72 teeth.

Where this product is used

• Synchronous drives where the driven shaft must keep in step with the driver
• Indexing and positioning drives
• Conveyor and material handling drives
• Packaging and automation machinery
• Replacement pulleys on existing XL section timing belt drives

Features

• Aluminium pulley with a pilot bore, ready to be bored to your shaft size
• Teeth cut for XL section belts, 3/8 in wide: 10 to 72 teeth
• Flanges on the sizes shown in the catalogue, with the flange diameter listed
• Pitch diameter, outside diameter, hub diameter, overall length and face width listed for every model
• Approximate mass listed for every model

Key specifications

Sizes available

Selecting and fitting

Choose the pulley by belt section (XL), belt width (3/8 in) and number of teeth. Divide the driven teeth by the driver teeth to find the speed ratio. Both pulleys on a drive must have the same tooth pitch as the belt.

If you want to fit the pulley with a bush instead of boring it, see the taper lock timing pulleys: L050 Taper Lock Timing Pulley, 1/2 in Belt Width, 18 to 120 Teeth, L100 Taper Lock Timing Pulley, 1 in Belt Width, 18 to 120 Teeth, H100 Taper Lock Timing Pulley, 1 in Belt Width, 14 to 120 Teeth.

Pilot bore pulleys are supplied with a starter hole. Have the pulley bored and keywayed to suit your shaft, keeping the bore concentric with the pulley, and add a set screw over the keyway.

Fit the belt by moving the shafts closer together, not by levering it over the flanges or teeth. Set the belt tension to the belt maker's recommendation and check it again after a few hours of running.

Dimensions are as listed for each model and are for reference. Contact AIMS to confirm a measurement if it is critical to your application.
