Nord-Lock washers are wedge-locking washers supplied as a pair, used under a bolt head or nut to help stop a joint loosening under vibration. AIMS Industrial lists 16 Nord-Lock products: standard and large outside diameter washers in Delta Protekt coated steel, 316L stainless and SMO 254, X Series and SC Steel Construction versions, in metric and imperial sizes, plus two washer kits. For help comparing locking washer types, read our guide to types of washers.
What's in the range
| Series and material | Listings | What is listed |
|---|---|---|
| Delta Protekt coated steel | 4 | Standard washers in metric (M3 to M64) and UNC (1/4 to 1 inch), and large O.D. washers in metric (M3.5 to M36) and UNC (1/4 to 1 inch). |
| 316L stainless steel | 4 | Standard washers in metric (M3 to M42) and UNC (1/4 to 1 inch), and large O.D. washers in metric (M3.5 to M30) and UNC (1/4 to 1 inch). |

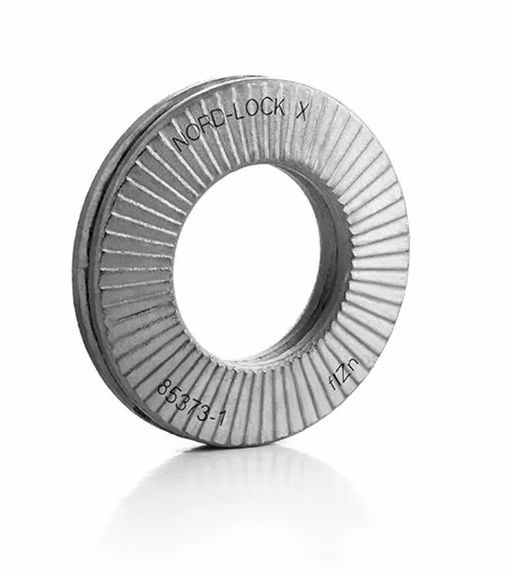

| X Series, Delta Protekt | 3 | Standard metric (M6 to M20), standard UNC (1/4 to 1/2 inch) and large O.D. metric (M12 and M16). |

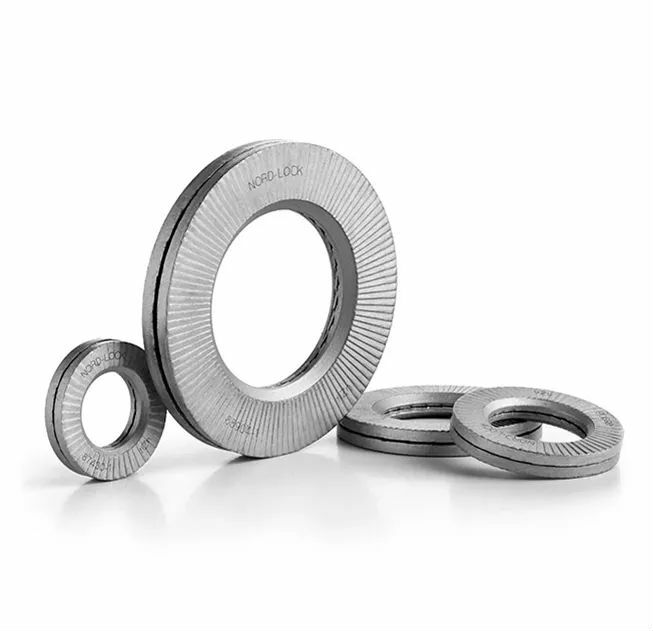

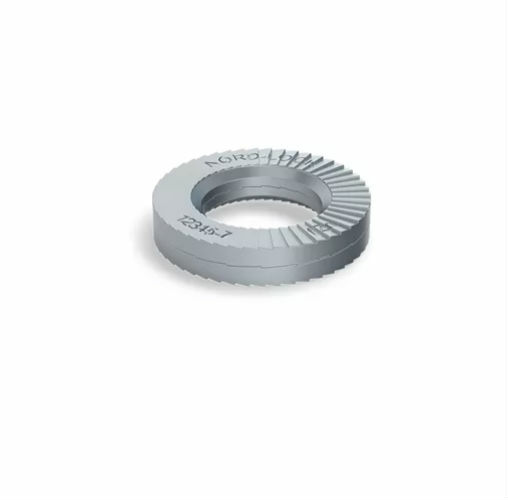

| SC Steel Construction, Delta Protekt | 1 | Standard metric washers, M12 to M36. |

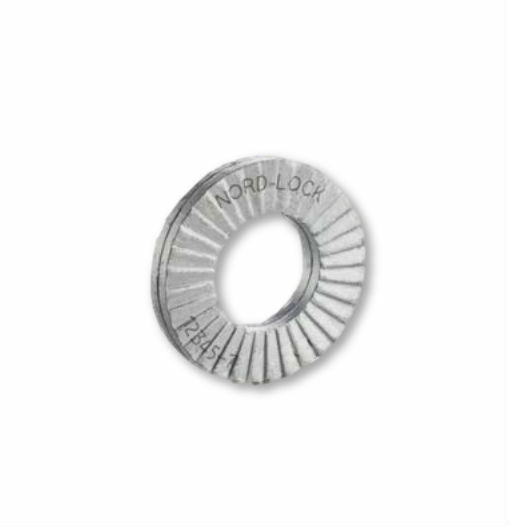

| SMO 254 | 2 | Standard metric washers (M6 to M12 and M36) and large O.D. metric washers (M4 to M16). |

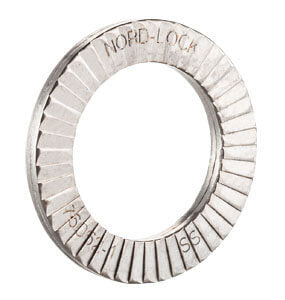

| Washer kits | 2 | Standard washer kits in Delta Protekt and in 316L stainless steel. |
That is 16 listings in total. Each listing carries the sizes above as variants, so pick the size that matches your bolt on the listing.
Choosing a Nord-Lock washer
Start with the bolt size and thread: metric (M) or UNC (inch). Then pick the material for the environment. Delta Protekt coated steel is the general choice, 316L stainless suits wet or corrosive conditions, and SMO 254 is listed for more demanding corrosive environments. The standard washer is the usual choice. The large O.D. versions have a bigger outside diameter and suit oversized holes or softer surfaces. The X Series and SC Steel Construction washers are separate series, so check the data sheet for the bolt classes and joints each one is made for.
Nord-Lock washers are installed as a pair with the cam faces together, and the pair is fitted under the bolt head or nut. Always fit the full pair, and use a new pair when you reassemble a joint. A single washer, or washers from different pairs, will not give the locking action.
Always check the data sheet. Confirm the washer series, size, material and the bolt class and joint it suits before you order, especially for safety critical joints.
Related ranges
See wedge lock washers, lock washers, spring washers, spring lock washers, Schnorr, safety washers, flat round washers, washers, Loctite and fasteners.
Order from AIMS Industrial
Need a Nord-Lock washer for a specific bolt or joint? Call us on (02) 9773 0122, contact our team or request a quote. We have supplied Australian industry since 1988 and can help with series, sizes and quantities.
Nord-Lock FAQs
What does AIMS list from Nord-Lock?
We list 16 Nord-Lock products: standard and large O.D. washers in Delta Protekt, 316L stainless and SMO 254, X Series and SC Steel Construction washers, and two washer kits, in metric and imperial sizes.
Do Nord-Lock washers have to be fitted as a pair?
Yes. They are installed as a pair with the cam faces together under the bolt head or nut. A single washer, or washers mixed from different pairs, will not lock.
What sizes are available?
Delta Protekt standard washers run from M3 to M64 in metric and 1/4 to 1 inch in UNC. 316L stainless standard washers run from M3 to M42 and 1/4 to 1 inch. Other series are listed in smaller size ranges, so check the listing.
What is the difference between standard and large O.D. washers?
Large O.D. washers have a bigger outside diameter than the standard washer for the same bolt, which spreads the load over a wider area. Check the listing for the dimensions you need.
Should I choose Delta Protekt or 316L stainless?
Delta Protekt coated steel is the general choice. 316L stainless suits wet or corrosive conditions, and is the one to use with stainless fasteners. Check the data sheet for your conditions.
Can I reuse Nord-Lock washers?
Fit a new pair whenever you reassemble a joint, and never mix washers from different pairs. Check the data sheet for the manufacturer guidance for your joint.
