BECO 608 Viton sealed
Available

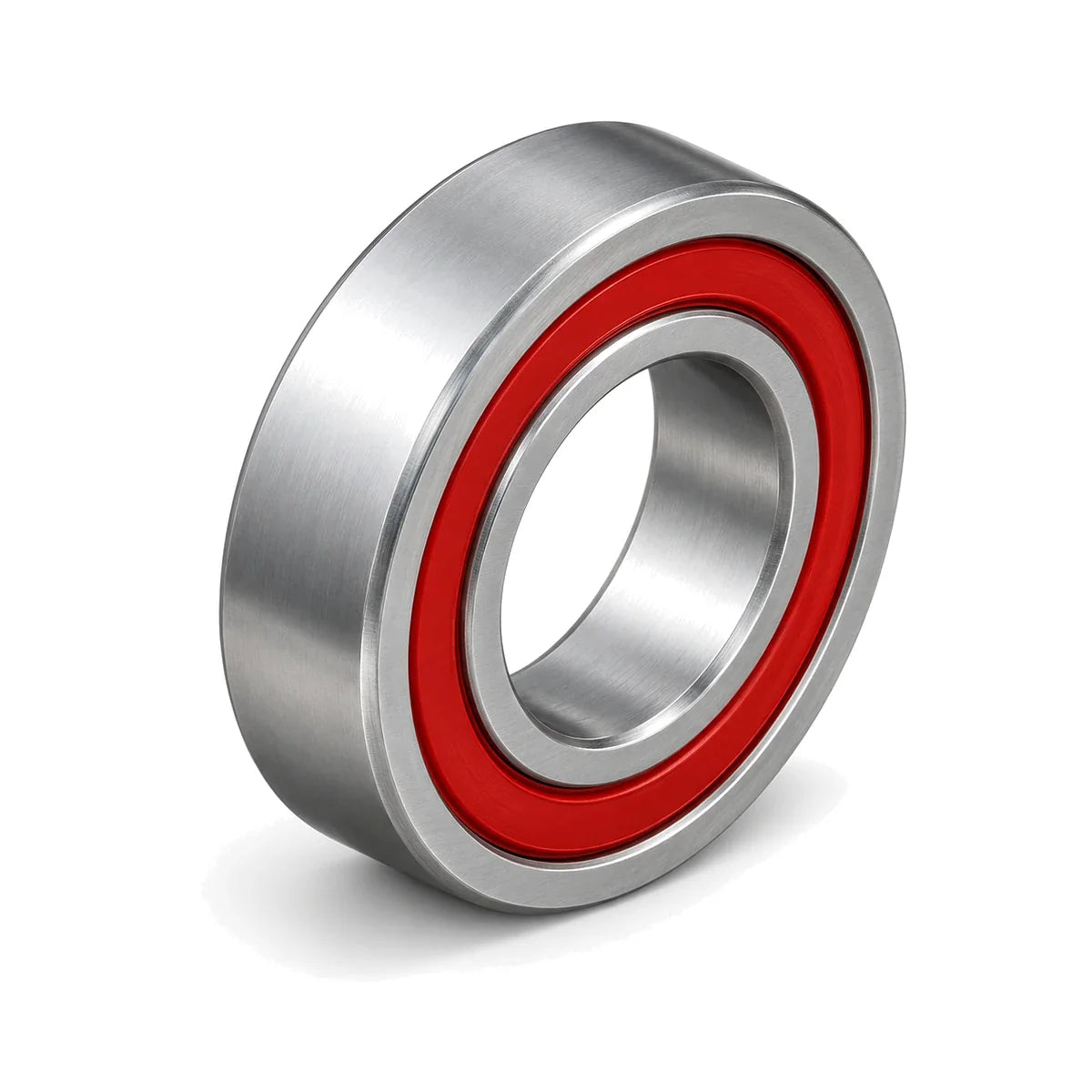

The BECO 608 is a Viton sealed high temperature ball bearing on the standard 608 boundary dimensions, 8 x 22 x 7mm. It has 2RS seals with Viton rubber on both sides and is greased for life. It is for service up to 250°C.
Where this product is used
- Small drives and transmission assemblies
- Oven and dryer mechanisms
- Light conveyor components running in sustained heat
Features
- Standard 608 boundary dimensions in a high temperature build
- 2RS seals with Viton rubber on both sides to hold the grease in and keep contamination out
- Greased for life, with no re-lubrication schedule
- Suited to service up to 250°C
Key specifications
| Specification | Detail |
|---|---|
| Type | Single row deep groove ball bearing |
| Designation | 608 |
| Bore diameter d | 8mm |
| Outside diameter D | 22mm |
| Width B | 7mm |
| Temperature rating | Up to 250°C |
| Sealing | 2RS seals with Viton rubber, both sides |
| Lubrication | Greased for life |
| Brand | BECO |
Fitting and use
The bearing is greased for life and needs no additional lubrication.
Press the ring that has the interference fit onto its seat, and never push through the balls or the other ring.
Choosing the right option
For a documented high temperature rating with published load ratings and limiting speeds in the 608 size, see the shielded 280°C range, which includes the 608.
Also available from BECO: the shielded 280°C range, the Viton sealed 200°C range.
