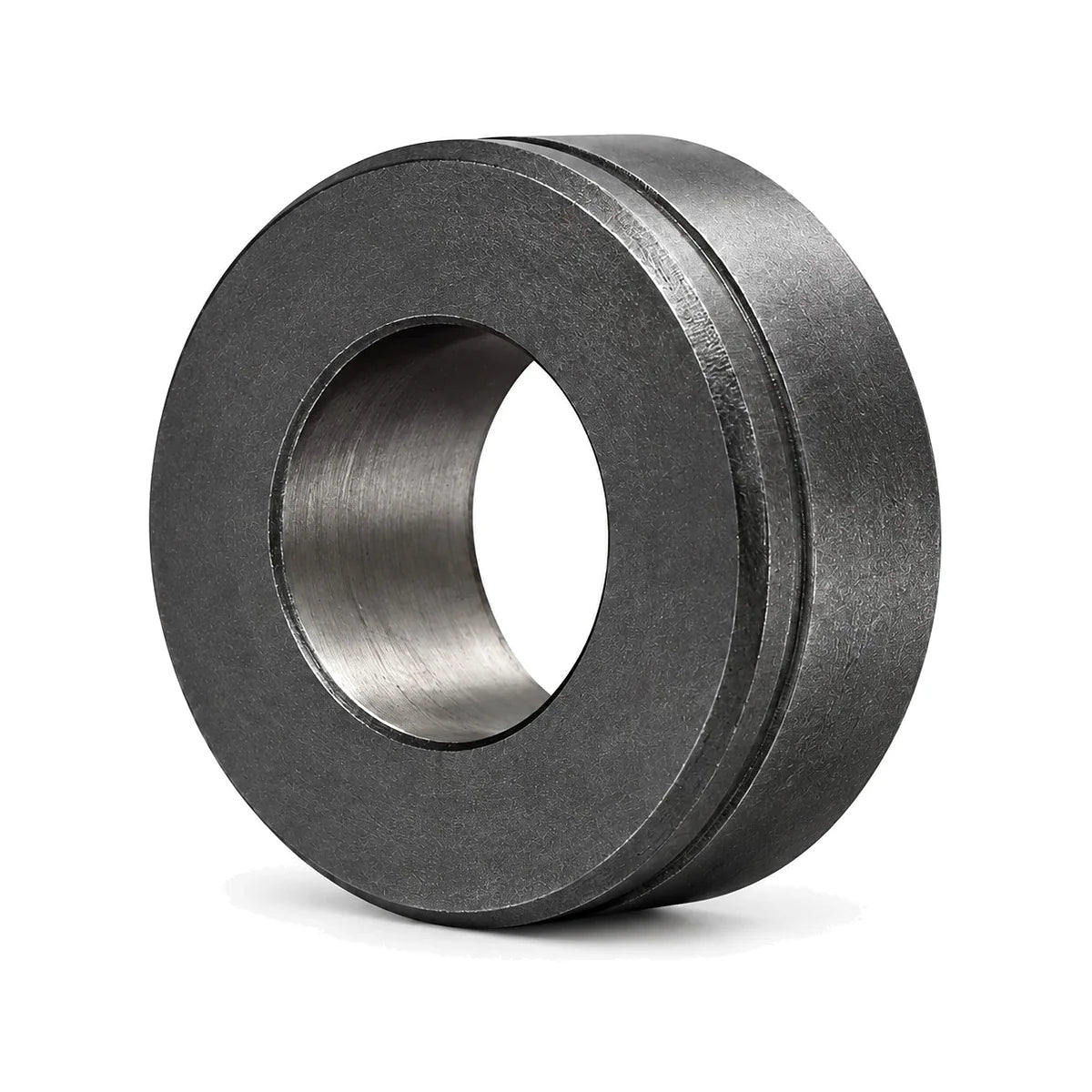

BECO BJ25W PTFE Lined Angular Contact Spherical Plain Bearing Open
Available
BECO maintenance-free angular contact spherical plain bushings — spherical plain bearings to DIN ISO 12240-2 — carry combined radial and one-directional axial load while still letting the shaft sit out of square.
The outer ring carries a PTFE sliding layer running against a hard chromium plated inner ring, so the joint runs dry. No grease point, no relubrication schedule. That suits fixed-direction loads and any position where oil or grease is unwanted, or simply cannot be reached.
Supplied open — with no grease to retain, the PTFE liner needs no seals.
At a glance
| Bearing type | PTFE Angular Contact Spherical Plain Bearing |
|---|---|
| Standard | DIN ISO 12240-2 |
| Sliding surfaces | Hard chromium on PTFE fabric |
| Sealing | Open (no seals) |
| Lubrication | Maintenance-free — no relubrication |
| Bore range | 25 mm to 100 mm (17 sizes) |
- Takes combined radial and axial load — the angled contact face carries thrust in one direction as well
- Runs dry — PTFE sliding layer, so there is no greasing point and no lubrication schedule
- Built to DIN ISO 12240-2 — standard boundary dimensions for the angular contact type
Full specifications, applications and features are in the tabs below.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
-

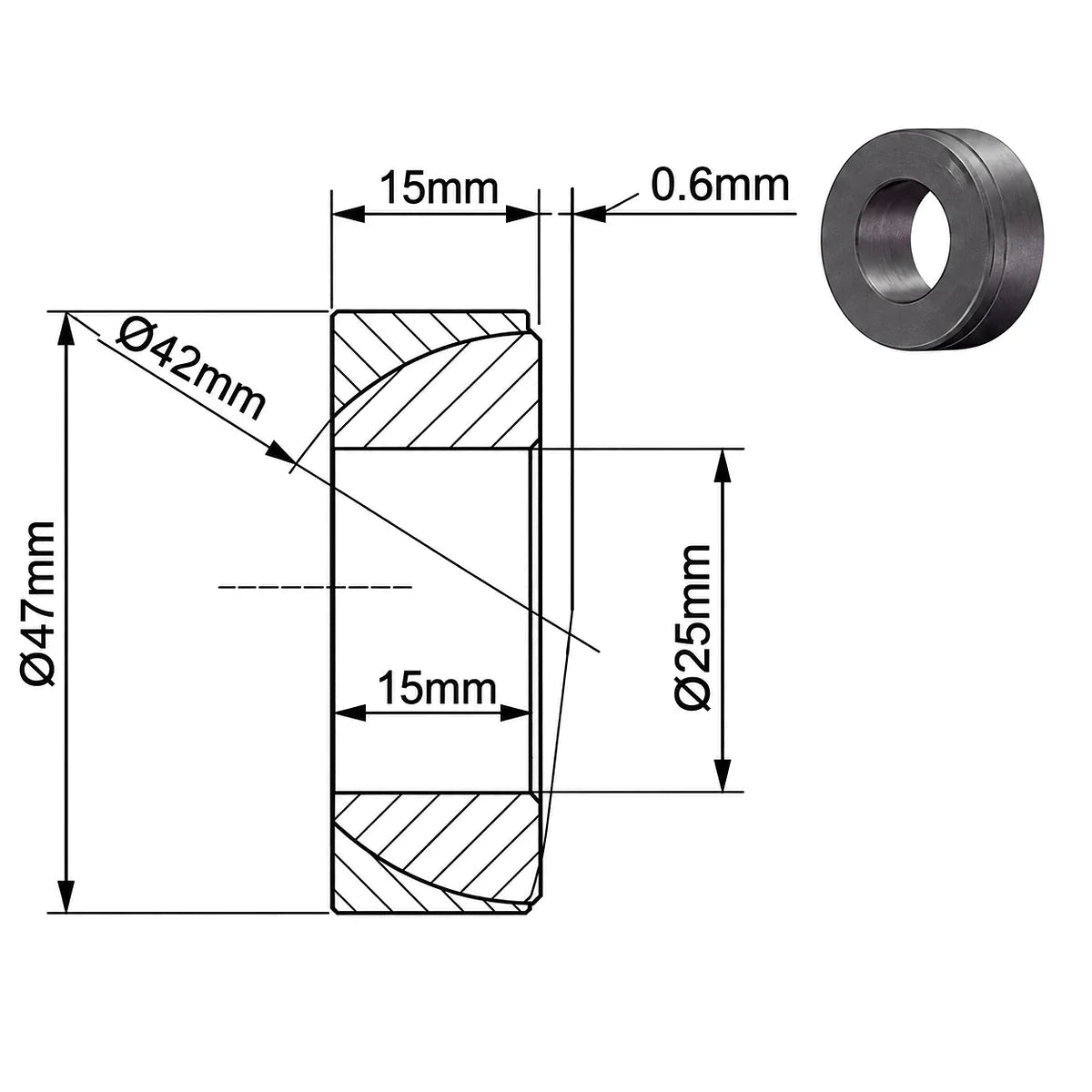

25 x 47 x 15mm bearing
Model Number: BJ25W_BECO
-
28 x 52 x 16mm bearing
Model Number: BJ28W_BECO
-
30 x 55 x 17mm bearing
Model Number: BJ30W_BECO
-
35 x 62 x 18mm bearing
Model Number: BJ35W_BECO
-
40 x 68 x 19mm bearing
Model Number: BJ40W_BECO
-
45 x 75 x 20mm bearing
Model Number: BJ45W_BECO
-
50 x 80 x 20mm bearing
Model Number: BJ50W_BECO
-
55 x 90 x 23mm bearing
Model Number: BJ55W_BECO
-
60 x 95 x 23mm bearing
Model Number: BJ60W_BECO
-
65 x 100 x 23mm bearing
Model Number: BJ65W_BECO
-
70 x 110 x 25mm bearing
Model Number: BJ70W_BECO
-
75 x 115 x 25mm bearing
Model Number: BJ75W_BECO
-
80 x 125 x 29mm bearing
Model Number: BJ80W_BECO
-
85 x 130 x 29mm bearing
Model Number: BJ85W_BECO
-
90 x 140 x 32mm bearing
Model Number: BJ90W_BECO
-
95 x 145 x 32mm bearing
Model Number: BJ95W_BECO
-
100 x 150 x 32mm bearing
Model Number: BJ100W_BECO
