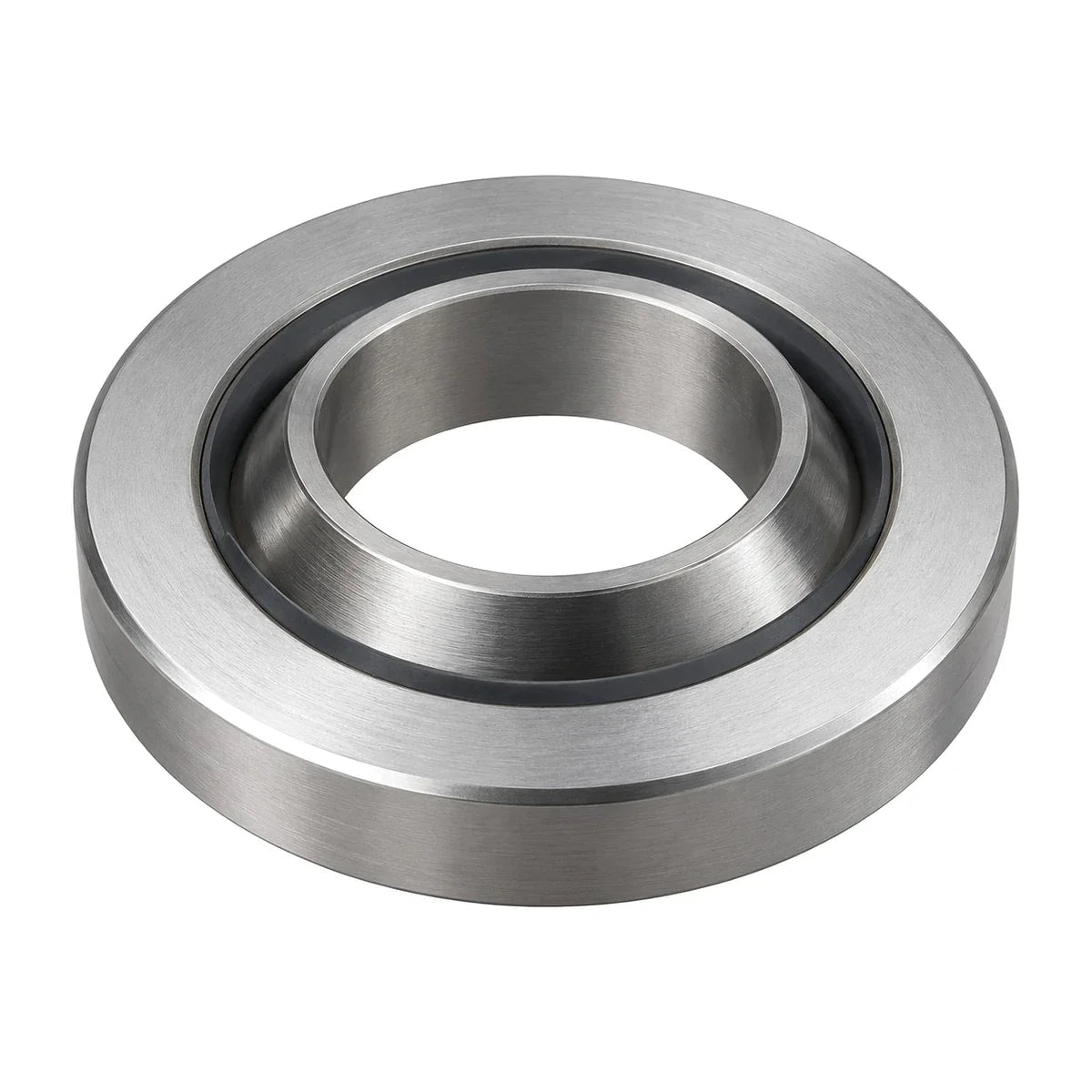

BECO BJ20A PTFE Lined Thrust Spherical Plain Bearing, Open, 20 x 55 x 20 mm
Available

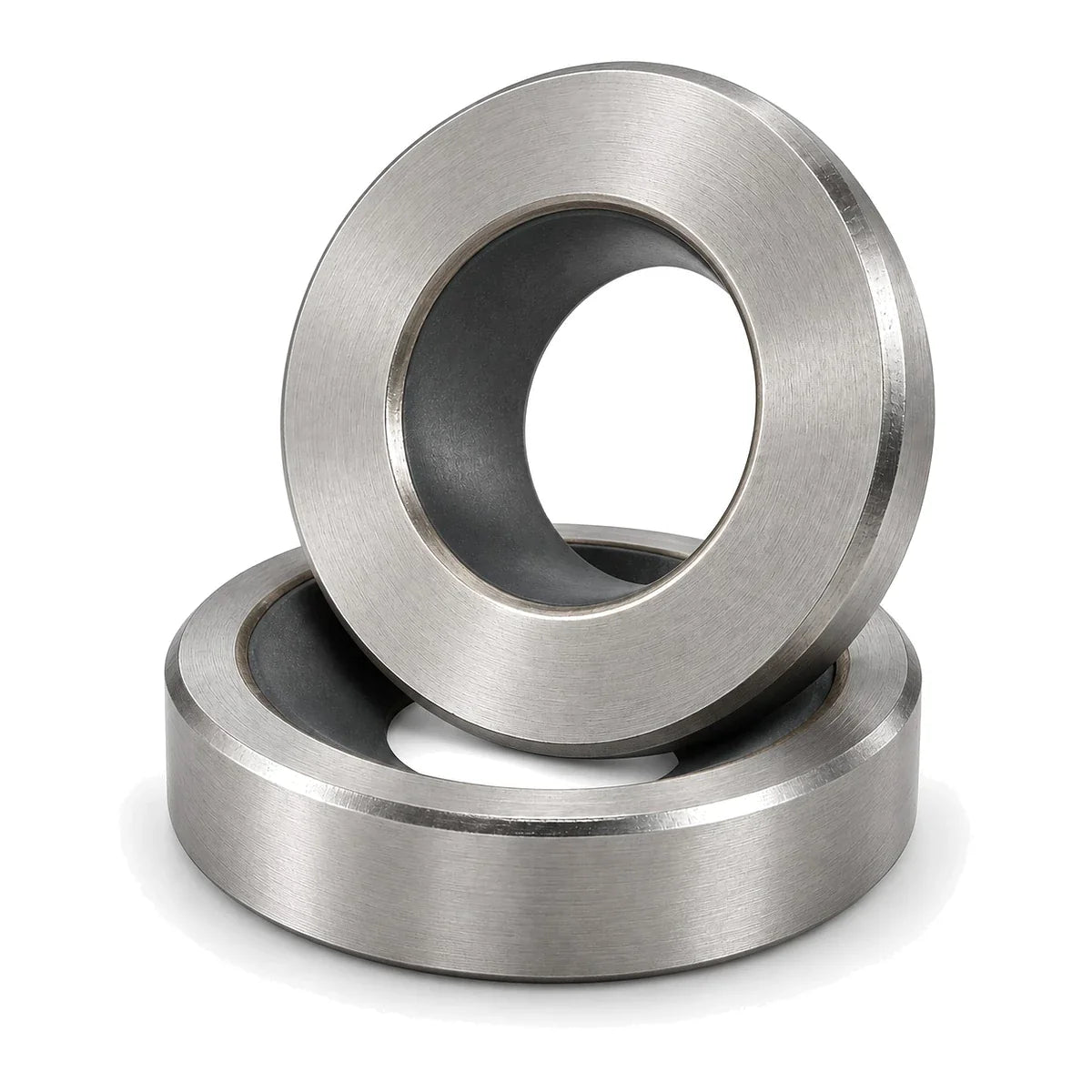

BECO maintenance-free thrust (axial) spherical plain bearings to DIN ISO 12240-3 carry pure axial load centred on the bearing axis, while still letting the shaft sit out of square. The housing washer carries a PTFE sliding layer running against a hard chromium plated shaft washer, so the joint runs dry, with no grease point and no relubrication schedule. That suits fixed-direction loads and any position where oil or grease is unwanted or cannot be reached.
It is supplied open: with no grease to retain, the PTFE liner needs no seals. This range has 15 sizes with bores from 10 to 100 mm.
Where this product is used
- Press and jack heads
- Screw jack thrust faces
- Hydraulic cylinder bases
- Rolling mill and heavy plant thrust points
- Positions where a grease point cannot be reached or grease is unwanted
Features
- Carries pure axial load centred on the bearing axis
- PTFE sliding layer against a hard chromium plated surface: runs dry, with no relubrication
- Supplied open: with no grease to retain, the PTFE liner needs no seals
- Built to DIN ISO 12240-3 boundary dimensions
Key specifications
| Specification | Detail |
|---|---|
| Type | Thrust (axial) |
| Standard | DIN ISO 12240-3 |
| Bore diameter d | 10 to 100 mm |
| Outside diameter D | 30 to 210 mm |
| Height H | 9.5 to 59 mm |
| Housing washer thickness | 7.9 to 50 mm |
| Sphere diameter dK | 32 to 220 mm |
| Sliding surfaces | Steel on PTFE |
| Sealing | Open (no seals) |
| Lubrication | Maintenance-free — no relubrication |
| Brand | BECO |
Available sizes
Show all 15 sizes
| Designation | Bore d (mm) | Outer D (mm) | Height H (mm) | Housing washer (mm) | Sphere dK (mm) |
|---|---|---|---|---|---|
| BJ10A | 10 | 30 | 9.5 | 7.9 | 32 |
| BJ12A | 12 | 35 | 13 | 9.3 | 37 |
| BJ15A | 15 | 42 | 15 | 10.7 | 45 |
| BJ17A | 17 | 47 | 16 | 11.5 | 50 |
| BJ20A | 20 | 55 | 20 | 14.3 | 60 |
| BJ25A | 25 | 62 | 22.5 | 16 | 66 |
| BJ30A | 30 | 75 | 26 | 18 | 80 |
| BJ35A | 35 | 90 | 28 | 22 | 98 |
| BJ40A | 40 | 105 | 32 | 27 | 114 |
| BJ45A | 45 | 120 | 36.5 | 31 | 130 |
| BJ50A | 50 | 130 | 42.5 | 33.5 | 140 |
| BJ60A | 60 | 150 | 45 | 37 | 160 |
| BJ70A | 70 | 160 | 50 | 40 | 170 |
| BJ80A | 80 | 180 | 50 | 42 | 194 |
| BJ100A | 100 | 210 | 59 | 50 | 220 |
Selecting the right option
Select by bore d first, then check the outside diameter D, height H, housing washer thickness and sphere diameter dK in the table against the housing and the mating part.
Dynamic and static load ratings are not listed on this page. Contact AIMS Industrial to confirm ratings against your application before ordering.
PTFE lined joints suit steady, fixed-direction loads. For shock or alternating loads, the steel on steel type is the one built for it.
Fitting and use
Press only on the washer being fitted, and never through the sliding surfaces of the joint.
PTFE lined bearings are maintenance-free and need no relubrication.
Contact AIMS Industrial for help choosing the fit and the service interval for your application.
Related products
Also available from BECO: the steel on steel thrust range, the PTFE lined angular contact range and the PTFE lined radial range.
