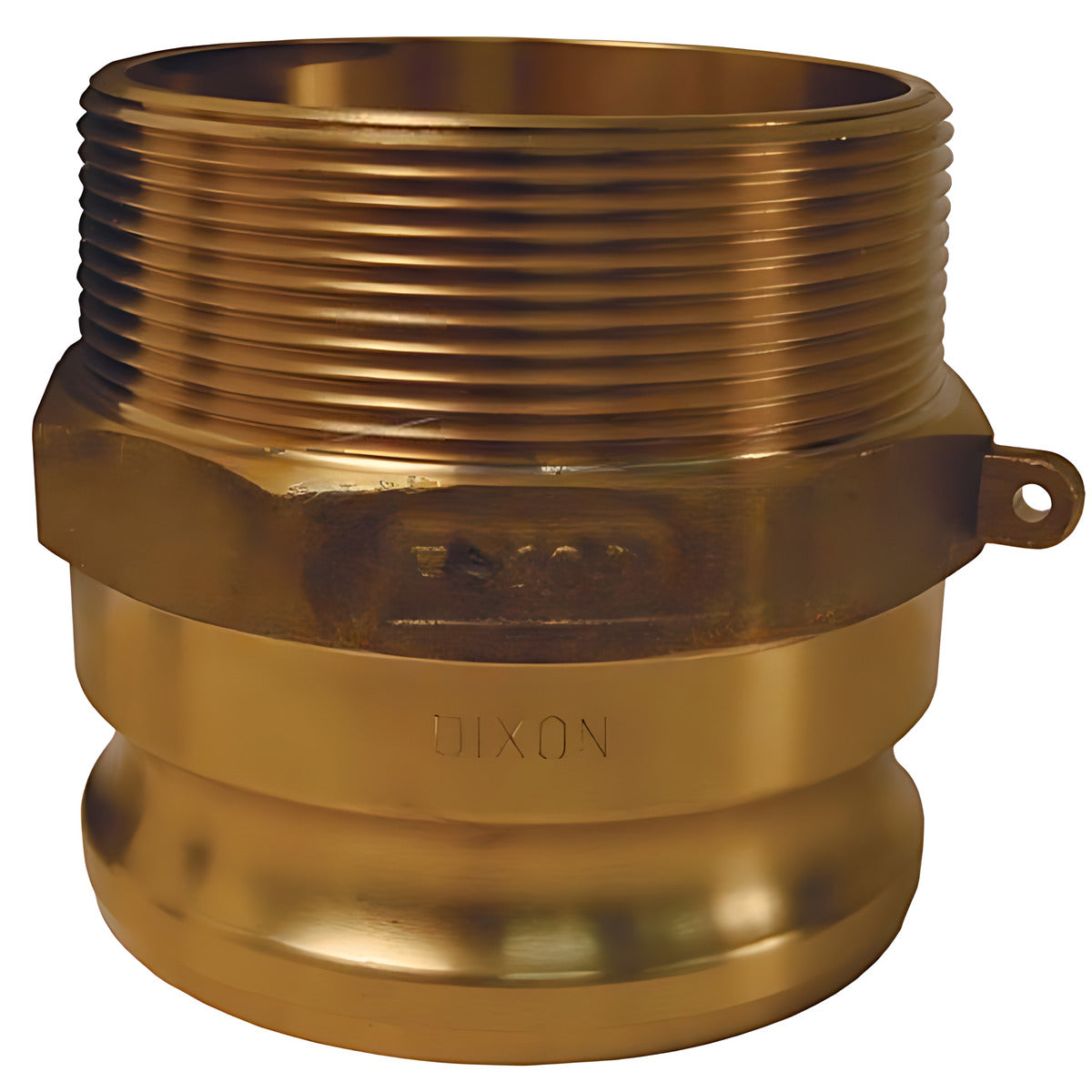

Dixon BR075F 3/4" (20 mm) Bronze Sand Cast Camlock Type F Adaptor x Male BSP
Available
This Dixon camlock is an adaptor with a male BSP thread in bronze sand cast. In Dixon's cam and groove system it is the male half of the joint: it slides into a coupler and the coupler cam levers are pressed down to lock it (manufacturer-stated). The store lists 11 sizes, from 1/2" (15 mm) to 6" (150 mm).
Dixon lists the body as bronze grade UNS C84400 to ASTM-B584 (manufacturer-stated). An adaptor carries no seal of its own: the standard seal for this material, nitrile Buna rubber, sits in the mating coupler, and Dixon bases the pressure rating on the seal of the mating part (manufacturer-stated).
Dixon rates the sizes in the store at 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated). Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).
Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated).
Where this product is used
- Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes through hose, pipe, tubing and tanks (manufacturer-stated).
- Giving a female-threaded port or fitting a quick-connect adaptor end, so a hose with a coupler can be connected to it.
- Hose and pipework where the bronze body and the nitrile Buna rubber seal suit the media; check both against your media before ordering.
Features
- Type F: adaptor x male BSP (manufacturer-stated)
- Body: sand cast bronze, grade UNS C84400 to ASTM-B584 (manufacturer-stated)
- Seal fitted in the mating coupler: nitrile Buna rubber; pressure rating is based on the seal of the mating part (manufacturer-stated)
- Working pressure: 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated)
- Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Configuration | Type F, adaptor x male BSP |
| Body | Bronze grade UNS C84400 to ASTM-B584 (manufacturer-stated) |
| Connection | Male BSP |
| Seal in mating coupler | Nitrile Buna rubber (manufacturer-stated) |
| Working pressure | 250 PSI for 20, 25, 32, 40 and 50 mm; 150 PSI for 15 and 65 mm; 125 PSI for 75 mm; 100 PSI for 100 mm; 75 PSI for 125 and 150 mm (manufacturer-stated) |
| Interchange | Commercial item description A-A-59326D (manufacturer-stated) |
| Sizes in store | 1/2" (15 mm), 3/4" (20 mm), 1" (25 mm), 1-1/4" (32 mm), 1-1/2" (40 mm), 2" (50 mm), 2-1/2" (65 mm), 3" (75 mm), 4" (100 mm), 5" (125 mm), 6" (150 mm) |
Key specifications
| Dixon part number | Size | Working pressure |
|---|---|---|
| BR050F | 1/2" (15 mm) | 150 PSI |
| BR075F | 3/4" (20 mm) | 250 PSI |
| BR100F | 1" (25 mm) | 250 PSI |
| BR125F | 1-1/4" (32 mm) | 250 PSI |
| BR150F | 1-1/2" (40 mm) | 250 PSI |
| BR200F | 2" (50 mm) | 250 PSI |
| BR250F | 2-1/2" (65 mm) | 150 PSI |
| BR300F | 3" (75 mm) | 125 PSI |
| BR400F | 4" (100 mm) | 100 PSI |
| BR500F | 5" (125 mm) | 75 PSI |
| BR600F | 6" (150 mm) | 75 PSI |
Pressure ratings are the figures Dixon prints for this material and size (manufacturer-stated).
Selecting the right option
Type F has a male BSP thread, so it screws into a female BSP port. It connects to a Type B, C or D coupler of the same size. Dixon states that bronze sand cast couplings may be welded with suitable equipment and a compatible filler, but that any modification voids the warranty and Dixon accepts no responsibility for modified couplings (manufacturer-stated). Dixon states that no standard exists for 15 mm (1/2") fittings and that this size generally does not interchange with other manufacturers (manufacturer-stated). Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).
Related products
Related Dixon products: Dixon Bronze Sand Cast BSP Cam & Groove Type C Coupler x Hose Shank, Cam & Groove Type F Adaptor x Male BSP Aluminium Die Cast and Dixon Cam & Groove Type F Adaptor x Male BSP Stainless. Dust caps and plugs for the unused end: Dixon Bronze Sand Cast Standard BSP Cam & Groove Type DC Dust Cap.
