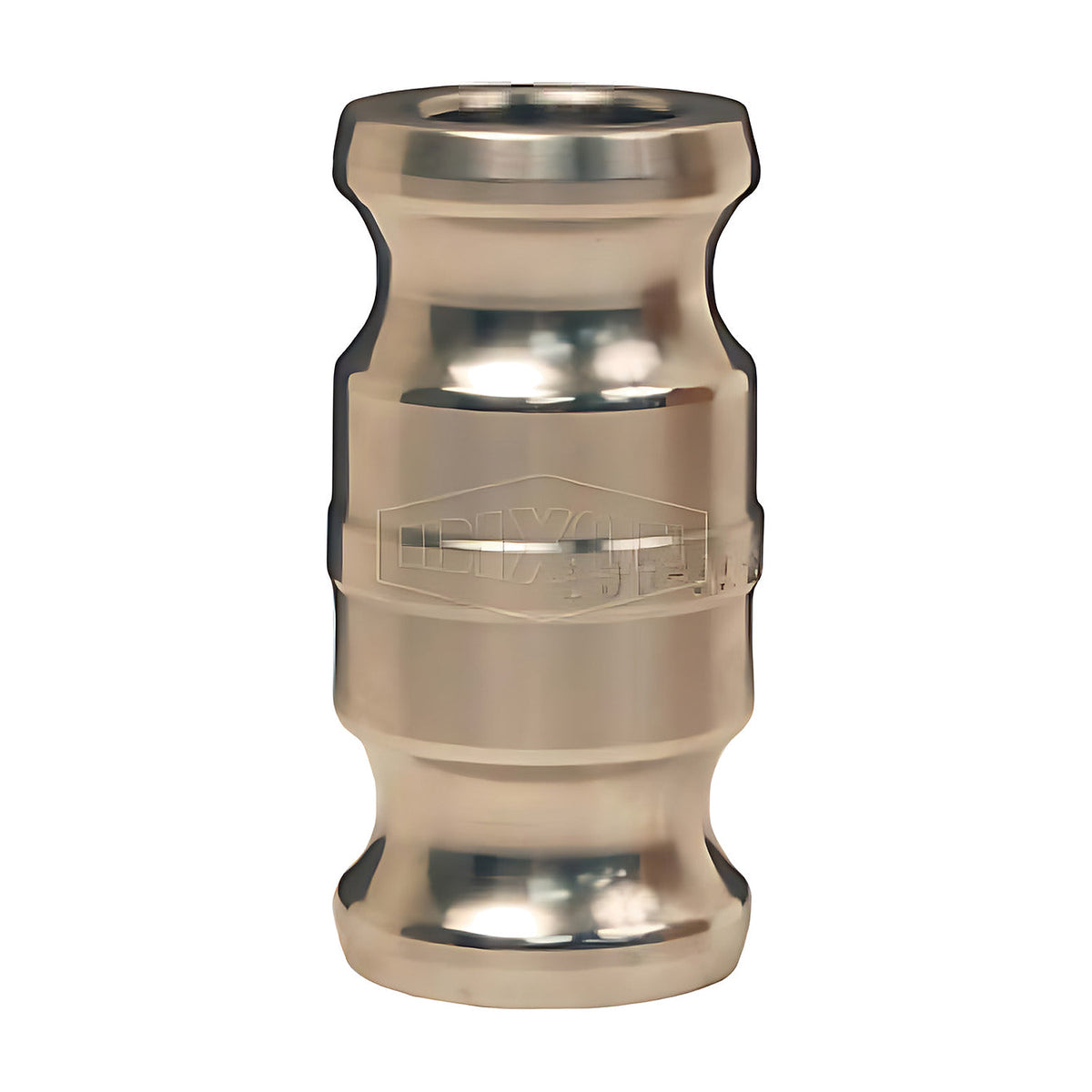

Dixon 200-AA-SS 2" (50 mm) Stainless Steel Camlock Spool Adaptor Type AA
Available
This Dixon Type AA spool adaptor in stainless steel is an adaptor x adaptor: both ends are the male half of the cam and groove joint, so it joins two couplers (manufacturer-stated). The store lists 12 sizes, from 1" (25 mm) to 6" (150 mm).
Dixon lists the stainless steel spool adaptors in its main camlock range, with a stainless steel grade of CF8M (316 equivalent) to ASTM-A351 for the range (manufacturer-stated).
Sizes written as two numbers, for example 40 x 50 mm, have a different size on each end, so the spool adaptor also changes size between two couplers of different sizes (manufacturer-stated).
Dixon rates the sizes in the store at 250 PSI for 25, 32, 40, 40 x 50 and 50 mm; 125 PSI for 50 x 75, 65 x 75 and 75 mm; 100 PSI for 75 x 100 and 100 mm; 75 PSI for 100 x 150 and 150 mm (manufacturer-stated). A spool adaptor carries no seal of its own: Dixon bases the pressure rating on the seal of the mating coupler (manufacturer-stated). Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).
Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated).
Where this product is used
- Joining two couplers of the same size, or of two different sizes where the part number has two sizes, in a quick-connect hose or pipe line.
- Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes (manufacturer-stated).
- Lines where both ends need to connect to couplers, for example between two hose runs that each end in a Type C or Type D coupler.
Features
- Type AA spool adaptor: adaptor x adaptor, a male cam and groove end on both sides (manufacturer-stated)
- Body: stainless steel grade CF8M (316 equivalent) (manufacturer-stated)
- Working pressure: 250 PSI for 25, 32, 40, 40 x 50 and 50 mm; 125 PSI for 50 x 75, 65 x 75 and 75 mm; 100 PSI for 75 x 100 and 100 mm; 75 PSI for 100 x 150 and 150 mm (manufacturer-stated)
- Pressure rating is based on the seal of the mating coupler (manufacturer-stated)
- Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Configuration | Type AA spool adaptor, adaptor x adaptor |
| Body | Stainless steel grade CF8M (316 equivalent) (manufacturer-stated) |
| Seal | None fitted: the pressure rating is based on the seal of the mating coupler (manufacturer-stated) |
| Working pressure | 250 PSI for 25, 32, 40, 40 x 50 and 50 mm; 125 PSI for 50 x 75, 65 x 75 and 75 mm; 100 PSI for 75 x 100 and 100 mm; 75 PSI for 100 x 150 and 150 mm (manufacturer-stated) |
| Sizes in store | 1" (25 mm), 1-1/4" (32 mm), 1-1/2" (40 mm), 1-1/2" x 2" (40 x 50 mm), 2" (50 mm), 2" x 3" (50 x 75 mm), 2-1/2" x 3" (65 x 75 mm), 3" (75 mm), 3" x 4" (75 x 100 mm), 4" (100 mm), 4" x 6" (100 x 150 mm), 6" (150 mm) |
Key specifications
| Dixon part number | Size | Working pressure |
|---|---|---|
| 100-AA-SS | 1" (25 mm) | 250 PSI |
| 125-AA-SS | 1-1/4" (32 mm) | 250 PSI |
| 150-AA-SS | 1-1/2" (40 mm) | 250 PSI |
| 1520-AA-SS | 1-1/2" x 2" (40 x 50 mm) | 250 PSI |
| 200-AA-SS | 2" (50 mm) | 250 PSI |
| 2030-AA-SS | 2" x 3" (50 x 75 mm) | 125 PSI |
| 2530-AA-SS | 2-1/2" x 3" (65 x 75 mm) | 125 PSI |
| 300-AA-SS | 3" (75 mm) | 125 PSI |
| 3040-AA-SS | 3" x 4" (75 x 100 mm) | 100 PSI |
| 400-AA-SS | 4" (100 mm) | 100 PSI |
| 4060-AA-SS | 4" x 6" (100 x 150 mm) | 75 PSI |
| 600-AA-SS | 6" (150 mm) | 75 PSI |
Pressure ratings are the figures Dixon prints for each size or size pair (manufacturer-stated). Dixon prints the same rating for the aluminium, bronze and stainless steel versions of each size.
Selecting the right option
Check the size on each end first: a part number with two sizes, such as 1520-AA-SS, changes size from one coupler to the other. Make sure both mating parts are couplers (Type B, C or D) of the matching size, and that their seal suits your media. Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).
