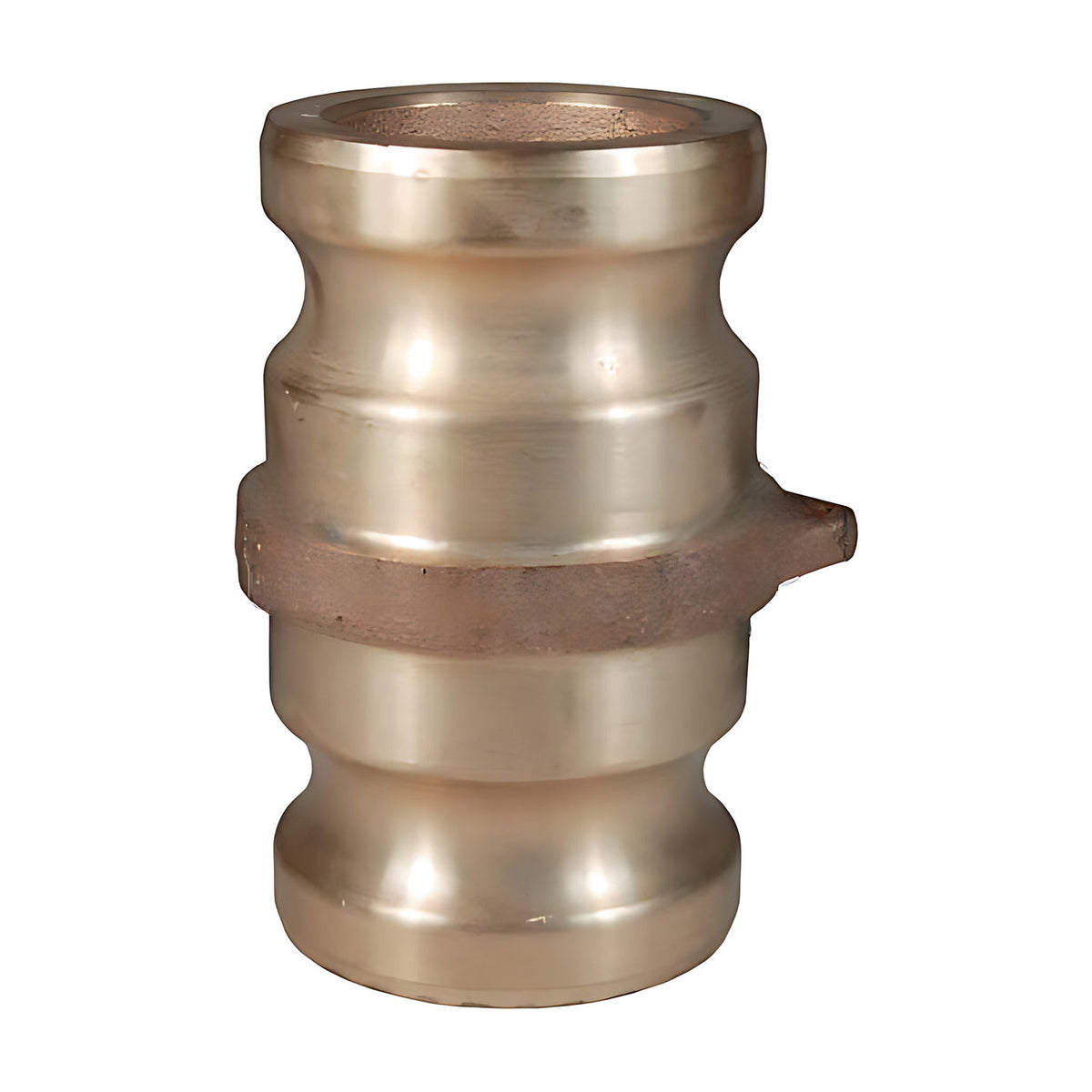

Dixon 100-AA-BR 1" (25 mm) Bronze Camlock Spool Adaptor Type AA

This Dixon Type AA spool adaptor in bronze is an adaptor x adaptor: both ends are the male half of the cam and groove joint, so it joins two couplers (manufacturer-stated). The store lists 4 sizes, from 1" (25 mm) to 4" (100 mm).

Dixon lists the BR-series spool adaptors in the bronze column of its main camlock range, with bronze grade UNS C84400 to ASTM-B584 for the range (manufacturer-stated).

Dixon rates the sizes in the store at 250 PSI for 25, 32 and 40 mm; 100 PSI for 100 mm (manufacturer-stated). A spool adaptor carries no seal of its own: Dixon bases the pressure rating on the seal of the mating coupler (manufacturer-stated). Dixon bases its pressure ratings on mating Dixon fittings at an ambient temperature of 21 degrees C with the standard seal, and asks you to consult Dixon for higher temperatures or other unusual conditions (manufacturer-stated).

Dixon states that camlock couplings are designed for use with liquids and must not be used in compressed air or steam applications (manufacturer-stated).

Where this product is used

• Joining two couplers of the same size, or of two different sizes where the part number has two sizes, in a quick-connect hose or pipe line.
• Quick-connect transfer of liquids such as cooling water, fuels, chemicals, adhesives and dyes (manufacturer-stated).
• Lines where both ends need to connect to couplers, for example between two hose runs that each end in a Type C or Type D coupler.

Features

• Type AA spool adaptor: adaptor x adaptor, a male cam and groove end on both sides (manufacturer-stated)
• Body: bronze grade UNS C84400 (manufacturer-stated)
• Working pressure: 250 PSI for 25, 32 and 40 mm; 100 PSI for 100 mm (manufacturer-stated)
• Pressure rating is based on the seal of the mating coupler (manufacturer-stated)
• Interchanges with products made to commercial item description A-A-59326D (manufacturer-stated)

Common specifications

Key specifications

Pressure ratings are the figures Dixon prints for each size or size pair (manufacturer-stated). Dixon prints the same rating for the aluminium, bronze and stainless steel versions of each size.

Selecting the right option

Check that both mating parts are couplers (Type B, C or D) of the matching size, and that their seal suits your media. Dixon states that dust caps and dust plugs must not be used in any pressure application (manufacturer-stated).
