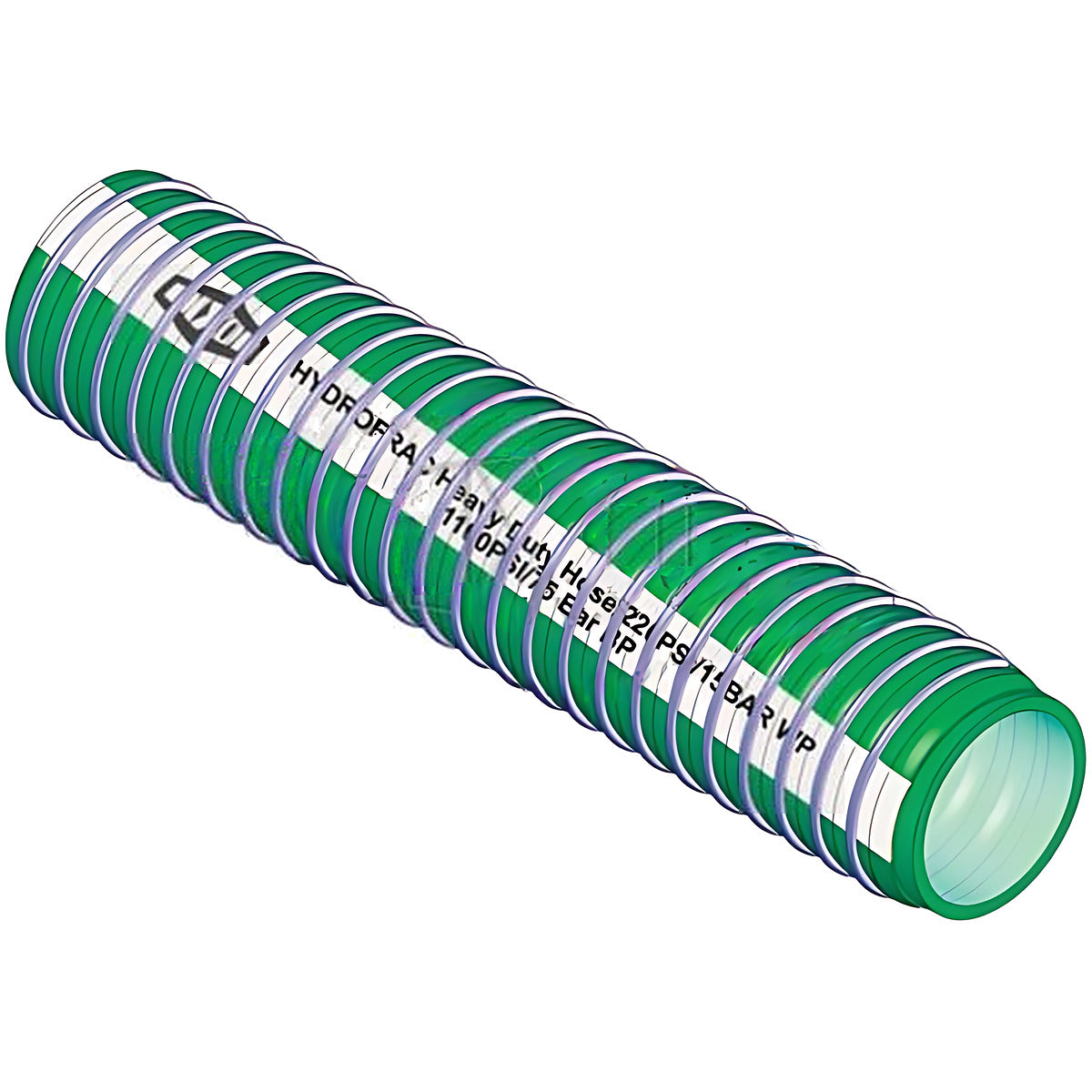

Dixon CODEFRAC150040 150 mm x 40 m Composite Hydrofrac Suction & Discharge Hose
Available
This Dixon composite hose is made for hydraulic fracturing duty and is also listed for pumps, process equipment, road tankers and rail tankers. It is anti-static and has a composite white tube, polypropylene/UHMWPE film and fabric reinforcement, galvanised steel outer wire, poly coated inner wire and an olive green Armatex abrasion resistant cover (manufacturer-stated).
Dixon rates every size at 230 PSI (16 bar) working pressure, 960 PSI (64 bar) burst and 0.9 bar vacuum, from -40 to 100 degrees C, and states that it is constructed in accordance with EN 13765:2018 Type 3 and handles a wide range of hydrocarbons with 100% aromatic resistance (manufacturer-stated). The store lists 100, 150 and 200 mm ID in 5 m and 40 m lengths.
Where this product is used
- Hydraulic fracturing suction and discharge lines (manufacturer-stated).
- Transfer of hydrocarbons and other fluids between pumps, process equipment, road tankers and rail tankers (manufacturer-stated).
- Hose runs that are dragged or laid over abrasive ground, because of the Armatex cover (manufacturer-stated).
Features
- Composite tube with polypropylene/UHMWPE film and fabric reinforcement (manufacturer-stated)
- Galvanised steel outer wire and poly coated inner wire; olive green Armatex abrasion resistant cover (manufacturer-stated)
- Constructed in accordance with EN 13765:2018 Type 3 (manufacturer-stated)
- 230 PSI (16 bar) working pressure, 960 PSI (64 bar) burst, 0.9 bar vacuum (manufacturer-stated)
- Temperature range -40 to 100 degrees C; anti-static (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Tube | Composite, white |
| Reinforcement | Polypropylene/UHMWPE film and fabric |
| Outer wire | Galvanised steel |
| Inner wire | Poly coated |
| Cover | Composite, olive green, Armatex abrasion resistant |
| Standard | EN 13765:2018 Type 3 (manufacturer-stated) |
| Working pressure | 230 PSI (16 bar) |
| Burst pressure | 960 PSI (64 bar) |
| Vacuum | 0.9 bar |
| Temperature | -40 to 100 degrees C |
| Sizes on this page | 100 mm, 150 mm, 200 mm |
| Lengths | 5 m and 40 m (store options) |
Key specifications
| Dixon part number | Size | Length | Catalogue ID (mm) | Bend radius (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| CODEFRAC100 | 100 mm | 5 m | 101.6 | 360 | 5.8 |
| CODEFRAC150 | 150 mm | 5 m | 152.4 | 500 | 12.50 |
| CODEFRAC150040 | 150 mm | 40 m | 152.4 | 500 | 12.50 |
| CODEFRAC200 | 200 mm | 5 m | 203.2 | 800 | 17.50 |
| CODEFRAC200040 | 200 mm | 40 m | 203.2 | 800 | 17.50 |
ID, bend radius and weight are the CODEFRAC figures printed in Dixon's Composite Hose & Fittings catalogue for 101.6, 152.4 and 203.2 mm. The 5 m and 40 m lengths are store options; the catalogue gives no pack length for the CODEFRAC part numbers.
Selecting the right option
Choose the size from your pump and coupling bore, then check the bend radius, because the 200 mm hose needs an 800 mm bend radius. Composite hose uses spiral (scroll tail) camlock fittings and ferrules to match the wire pitch, and Dixon lists a scroll tail series for this purpose (manufacturer-stated). Confirm the media and temperature with Dixon for chemicals other than hydrocarbons, and check the EN 13765 type against your application.
