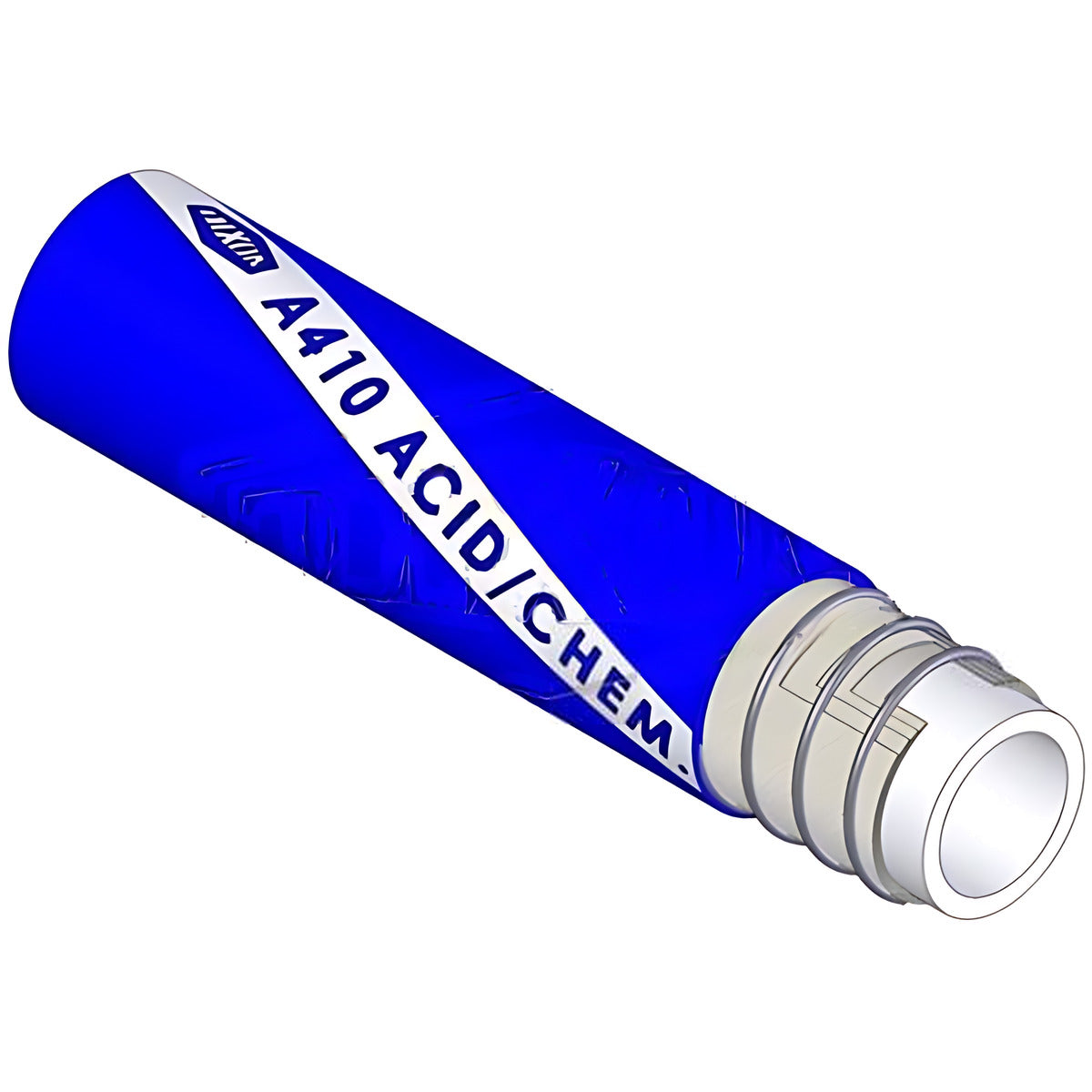

Dixon A41002520 25 mm x 20 m Rubber UHMW Polyethylene Chemical Hose

This Dixon hose has an ultra-high molecular weight polyethylene (UHMWPE) tube, a smooth blue EPDM-blend cover and a double wire helix with an antistatic copper wire, and it is mandrel built (manufacturer-stated). It is a suction and discharge hose for chemicals and for food and drink liquids.

Dixon's industrial hose catalogue rates the range at 150 PSI (10 bar) working pressure and 600 PSI burst, for -40°C to 100°C, with steam cleaning without pressure up to 130°C for a maximum of 30 minutes (manufacturer-stated). This listing covers the 25 mm (1 in) and 51 mm (2 in) hose, each as a 5 m cut length and a 20 m coil.

Where this product is used

• Suction and transfer of acids, alkalis, salts, chlorinated hydrocarbons and oxidising acids. Dixon describes the UHMWPE tube as resistant to a majority of chemicals (manufacturer-stated), so check your own chemical against a compatibility chart.
• Moving beer, wine, soft drinks, fruit juices and potable water. Dixon lists the tube as resistant to 96% alcohol content (manufacturer-stated).
• Suction lines that are steam cleaned between runs, without pressure, up to 130°C for a maximum of 30 minutes (manufacturer-stated).

Features

• UHMWPE tube, transparent/white, with a low friction coefficient (manufacturer-stated)
• Smooth blue EPDM-blend cover; ozone, weather and abrasion resistant (manufacturer-stated)
• Reinforcement: high tensile synthetic textile cords, double wire helix and antistatic copper wire (manufacturer-stated)
• Working pressure 150 PSI (10 bar); burst pressure 600 PSI (manufacturer-stated)
• Temperature range -40°C to 100°C (manufacturer-stated)
• Tube listed as FDA title 21 art. 177.2600 (e) for liquid foods, BfR, KTW and phthalate free (manufacturer-stated)

Common specifications

Key specifications

Figures are from Dixon's industrial hose catalogue, which prints one set of ratings per size for both the cut length and the 20 m coil part number. The catalogue ID is 25.4 mm and 50.8 mm; the store size options round these to 25 mm and 51 mm.

Selecting the right option

Match the tube to your chemical first: UHMWPE suits many chemicals, but always check the specific product, concentration and temperature. Dixon's catalogue figure for vacuum on this hose is not clear enough to publish, so confirm the vacuum rating with Dixon before using it on a suction line. Dixon's Hygienic Product Range catalogue states a minimum cut length of 5 m, and charges apply for cutting hose (manufacturer-stated). Choose the 20 m coil to avoid cut charges on longer runs.
