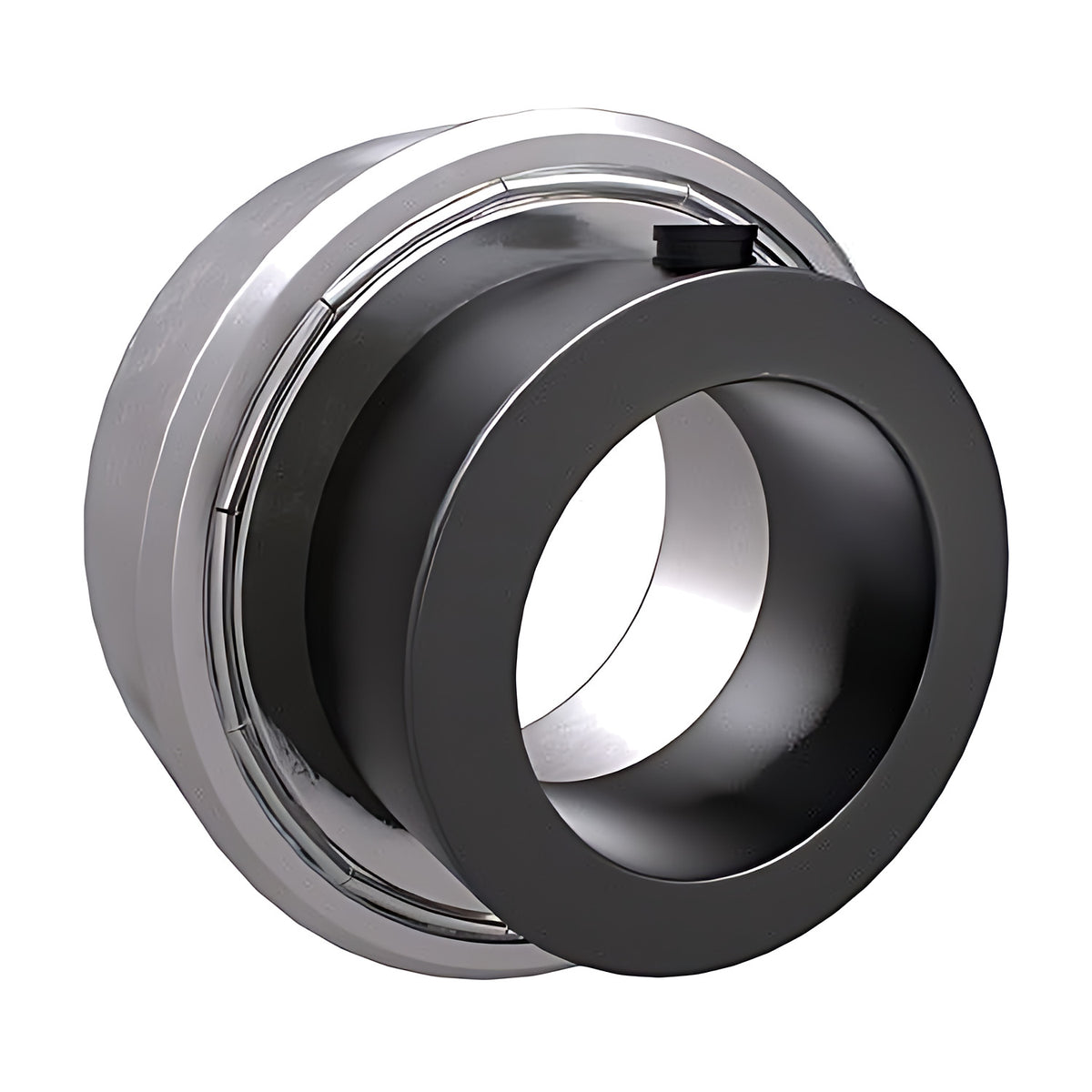

FYH SAA201-8FP7 Insert Bearing, 1/2 in Bore, Eccentric Collar, Cylindrical O.D.
Available
The FYH SAA201-8FP7 is an eccentric collar insert bearing with cylindrical O.D. with a 1/2 in bore (12.7 mm). It measures 40 mm (1.575 in) O.D. by 19.1 mm (0.752 in) inner ring width, with a basic dynamic load rating of 9.55 kN and a static rating of 4.8 kN.
It has an eccentric locking collar and a cylindrical O.D. for press-fit mounting directly into machinery; it is not self-aligning and cannot be mounted in traditional housings.
Where this product is used
- Machinery with a machined bore that takes a cylindrical O.D. insert
- Conveyor rollers, drive shafts and idler stations
- Fans, blowers and pumps
- Agricultural, construction and general industrial machinery
Features
- Eccentric locking collar for a 1/2 in shaft: the collar engages the inner ring and a set screw is tightened to hold it
- Cylindrical O.D. for press-fit mounting directly into machinery; not self-aligning and not for traditional housings
- Basic dynamic load rating Cr 9.55 kN and static rating C0r 4.8 kN

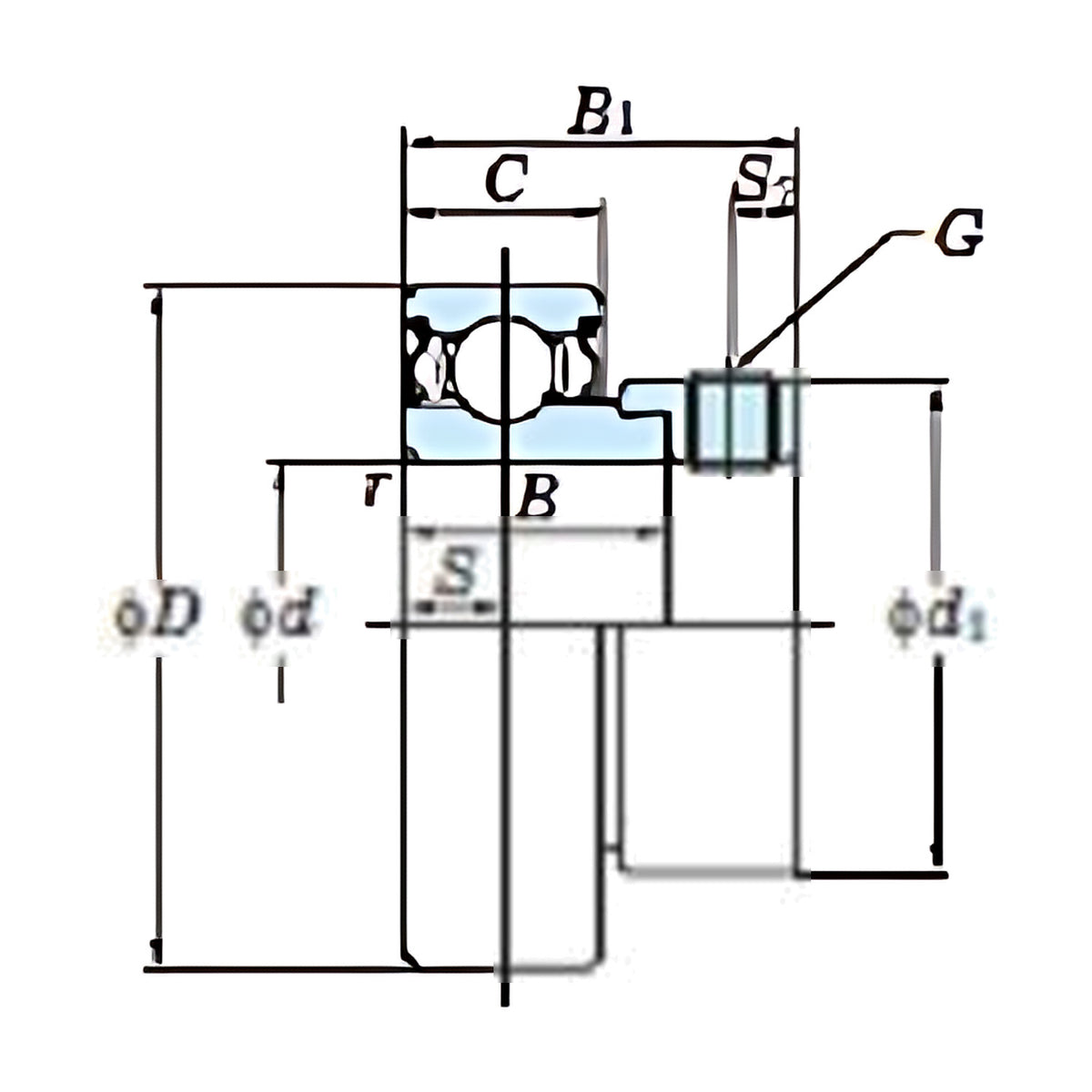

Key specifications
| Specification | Detail |
|---|---|
| Type | Insert bearing (deep groove ball bearing) with eccentric locking collar and cylindrical O.D. |
| Model | SAA201-8FP7 |
| Bore diameter d | 12.7 mm (1/2 in) |
| Outer diameter D | 40 mm (1.575 in) |
| Inner ring width B | 19.1 mm (0.752 in) |
| Width including collar B1 | 28.6 mm (1.126 in) |
| Outer ring width C | 13 mm (0.512 in) |
| Locking | Eccentric locking collar with a set screw |
| Outer ring | Cylindrical O.D. |
| Duty | Light |
| Collar set screw thread | 1/4-28UNF |
| Basic dynamic load rating Cr | 9.55 kN |
| Basic static load rating C0r | 4.8 kN |
| Factor f0 | 13.2 |
| Mass | 0.13 kg |
| Brand | FYH (FYH Inc., Japan) |
Selecting the right option
This page is for the single model SAA201-8FP7, with a 1/2 in bore. If you need another shaft size, the related pages below list the other sizes in this range.
Imperial (inch) bores are in fractions of an inch; the Model Details give the size in mm with the inch size in brackets: match the bore to the shaft you have.
Fitting and use
Check the load against the catalogue figures in the Model Details before ordering, and apply a suitable safety factor.
Press-fit the insert into a machined bore. It is not self-aligning, so the bore must be machined square to the shaft. Fit the collar against the inner ring and tighten its set screw.
If you are unsure which insert suits a shaft and housing, send AIMS the part numbers or sizes and we will confirm the fit.
