Gates 5VX540 (9414-0540) Super HC Narrow
Available

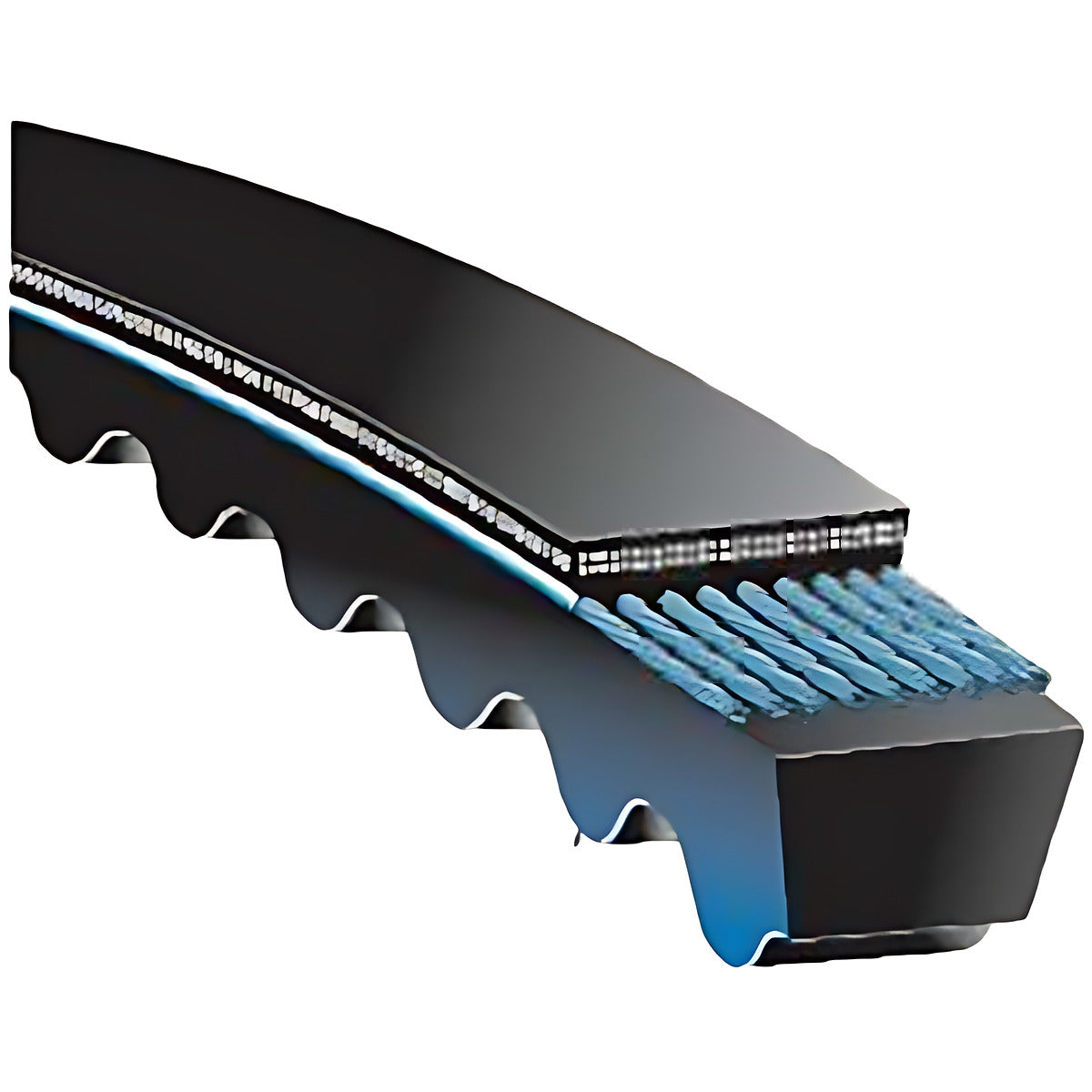

The Gates Super HC Molded Notch belt 5VX section is a raw edge, moulded-notch (cogged) narrow V-belt for industrial drives requiring high power in a compact cross-section. It is cross-referenced by Gates to the equivalent ISO-coded Quad-Power 4 belt of the same dimensions.
Where this product is used
Gates V-belts cover the full range of industrial, agricultural and automotive drive applications. Common end uses include:
- Industrial drive systems — air compressors, pumps, fans, blowers and generators across manufacturing and utilities
- Agricultural machinery including combine harvesters, grain augers, irrigation pumps and crop-processing equipment
- HVAC and refrigeration plant — chillers, cooling towers, air handlers and refrigeration compressors
Key specifications

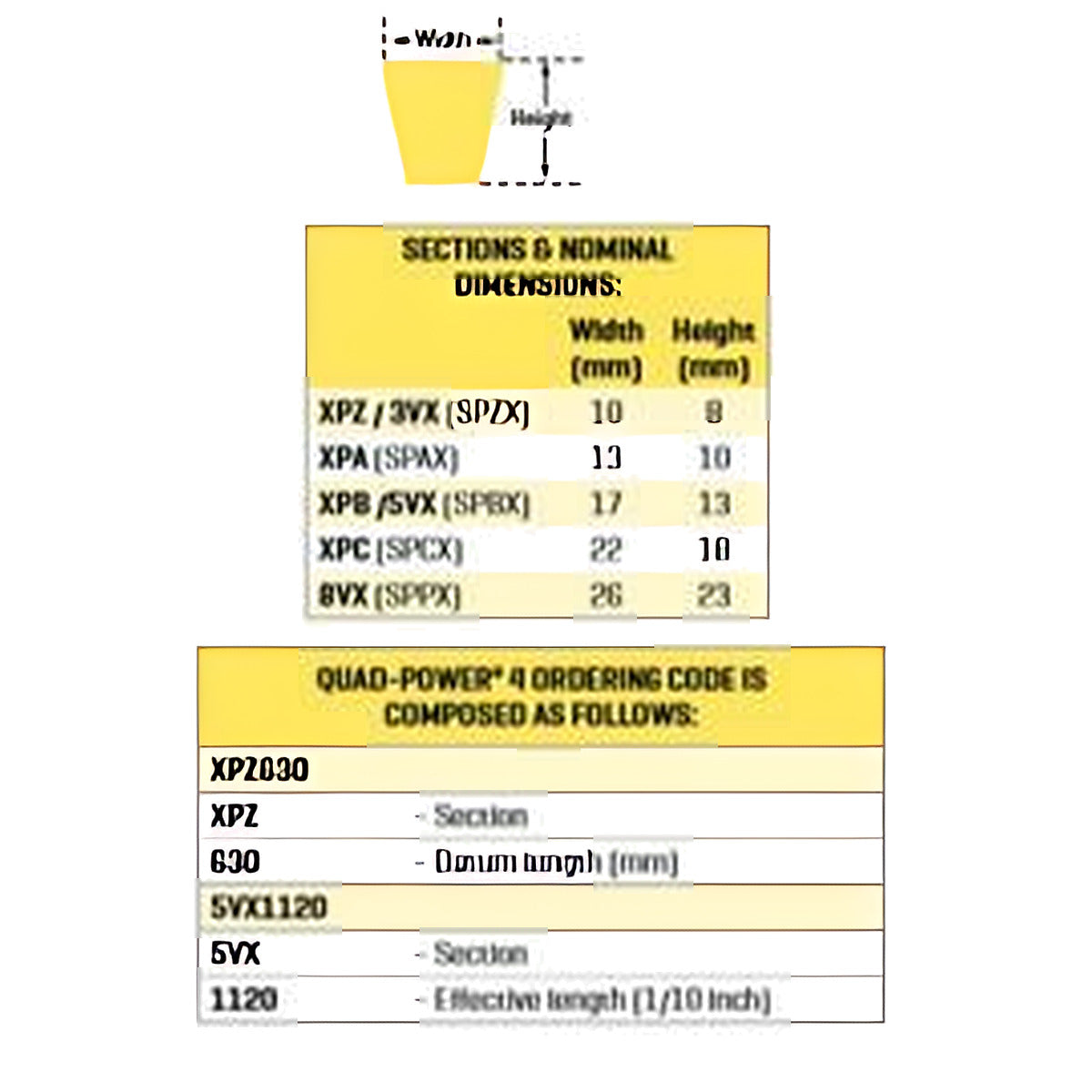

| Specification | Detail |
|---|---|
| Belt Section | 5VX |
| Series | Super HC Molded Notch — Gates’ RMA-coded (3VX/5VX/8VX) raw-edge, moulded-notch narrow V-belt; the same construction as the ISO-coded Quad-Power 4 (XPZ/XPA/XPB/XPC) range |
| Construction | Raw edge, moulded-notch (cogged) construction. Gates’ current stock system lists this as Super HC Molded Notch (RMA-coded 3VX/5VX/8VX) — the same notched, raw-edge belt as the ISO-coded Quad-Power 4 (XPZ/XPA/XPB/XPC) range; Gates cross-references the two codes against the same physical belt. Exclusive EPDM compound; precision-ground sidewalls for uniform wedging action; Flex-Bonded polyester tensile cords; double Flex-Weave textile backing; non-self-igniting; static conductive (ISO 1813 & RMA IP3-3). |
| Nominal Dimensions (Width x Height) | 17 x 13 mm |
| Temperature Range | -57°C to +121°C |
| Belt Matching | Meets Gates UNISET tolerances — any belt of the same section and length matches any other; no belt-matching required. |
Selecting the right option
Select by belt section first, then by pitch length. Classical sections run A, B, C, D, E (or Z in metric) — cross-reference to the metric ISO equivalent (13A, 17A, 22A) where needed. Narrow sections (3V/SPA, 5V/SPB, 8V/SPC) carry more power in the same envelope. The XP series (XPZ/XPA/XPB/XPC) are notched versions for improved flex efficiency. Gates PowerBand banded belts join multiple strands — specify these for long centre distances, vertical drives or where belt whip is an issue. Looking for an automotive serpentine belt? Automotive Micro-V drives use the K section — see our automotive Micro-V range and match by OE reference or by rib count and pitch length.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Gates Super HC Molded Notch V Belt - 5VX Section: 5VX540
SKU: A0018813 | Model: 9414-0540
This is the belt code 5VX540 option of the Gates Super HC Molded Notch V Belt - 5VX Section. Key details for this option: top width 17mm, depth 13mm.
Descriptions
Quad-Power® 4 has been developed to replace traditional V-belts on applications where space, weight savings and temperature resistance are required.
Extensive testing has shown that Gates Quad-Power® 4 V-belts offer up to 50% higher offer ratings than the wrapped Super HC®. The new upgraded EPDM compound allows the belt to handle extreme temperatures up to +130°C.

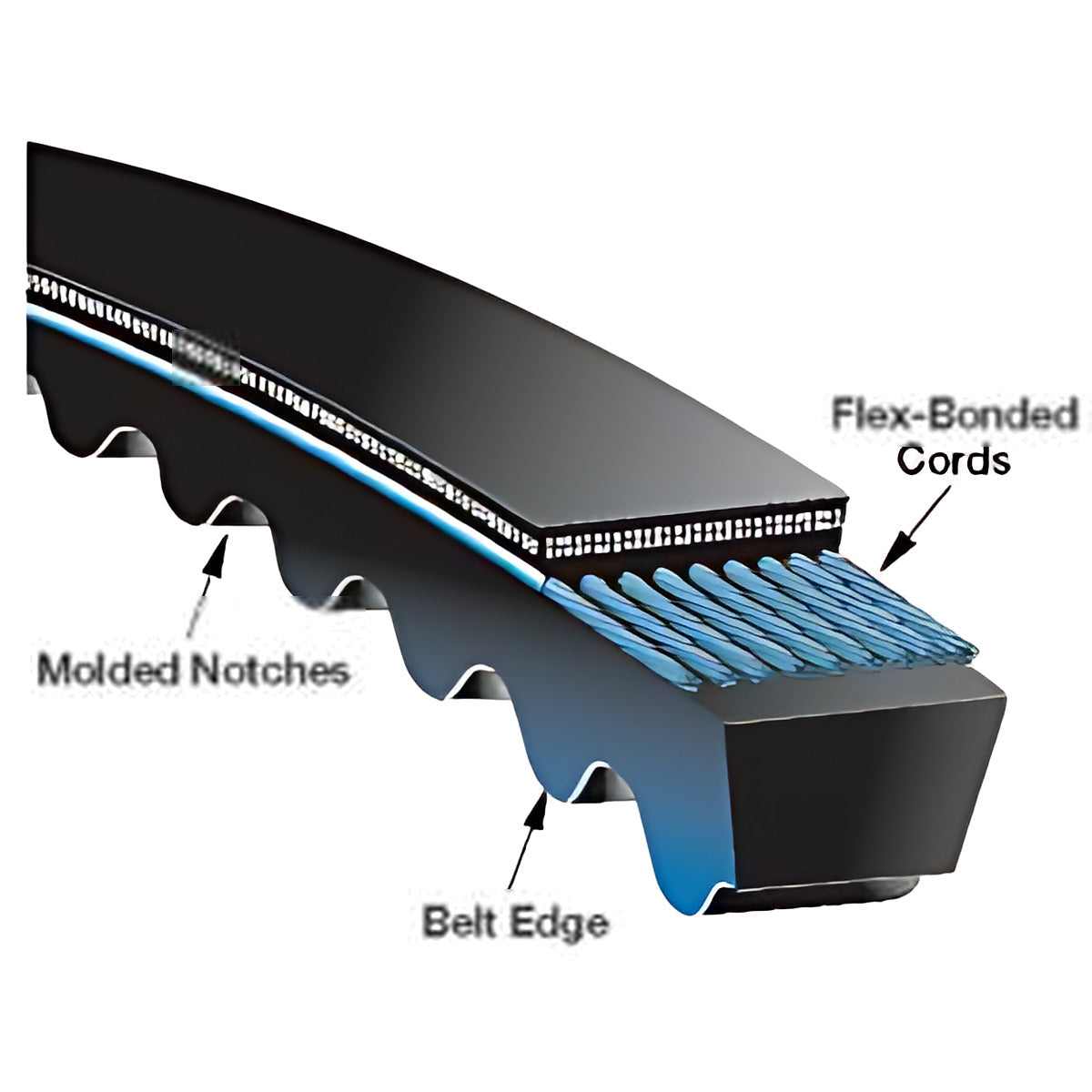

Construction
Notch depth is in proportion to the cross-section to ensure perfect stability
Precision-ground sidewalls reduce centre distance variations, vibration and uniform wedging action
Flex-Bonded polyester cords for equal load distribution and reduced stress from flexing
Fibre-loaded EPDM compound withstands high heat, ozone, sunlight and provides better cord support
Enhanced blue adhesion layer increases tensile cord bond
Double Flex-Weave® textile backing protects the belt against wear – especially when back idlers are used
Non self-igniting - the belt will not catch fire from heat build-up, even with severe slippage
Static conductive - ISO 1813 and RMA IP3-3
Advantages
No re-tensioning required
Reduce wrapped belt drive width up to 50%
Increase efficiency up to 3% offer wrapped belts
Use smaller diameter pulleys than wrapped belts
Moulded notches reduce and evenly distribute thermal and bending stresses
Reduce drive maintenance
Match free system: all sizes meet Gates UNISET & V80® tolerances, can be installed without matching
Back idlers can be used
Temperature Range
Range: -50°C to +130°C
